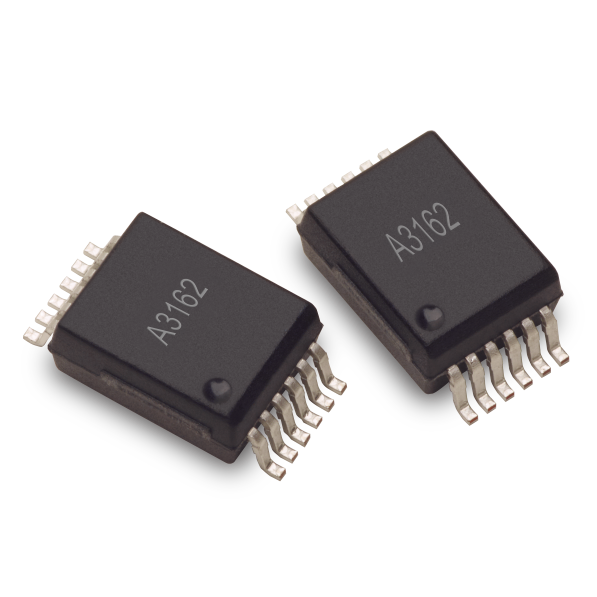

Broadcom 10A Gate Drive Optocoupler in 600V CTI SSO12 Package - Surface-Mount - IEC/EN 60747-5-5 Safety Approval - 80 Per Tape - ACFL-3162-000E
The ACFL-3162 is a 10A gate drive optocoupler device in the SSO-12 package designed for high-voltage, space-constrained industrial applications like motor drives and inverters. The new package features a 600V CTI mold which reduces the creepage requirement due to high insulation voltage in a compact footprint.
It features common mode transient immunity (CMTI) greater than 100 kV/μs, preventing erroneous gate driver failures in noisy environments. Furthermore, the new device has less than 95ns propagation delay, enabling high frequency switching to improve efficiency in driving IGBT and SiC/GaN MOSFET.
For ACFL-3162, the UVLO (Under-Voltage Lockout) threshold levels have been customized to accommodate power devices that require higher threshold levels.
UVLO Threshold Low to High, VUVLO+ 14.2V (typ.)
UVLO Threshold High to Low, VUVLO- 13.5V (typ.)
- 10A max peak output current
- 600V CTI mold
- Dual rail-to-rail outputs for separate source and sink
- UVLO with Vs reference for negative power supply
- UVLO Threshold Low to High, VUVLO+ 14.2V (typ.)
- UVLO Threshold High to Low, VUVLO- 13.5V (typ.)
- 95ns max propagation delay
- 100-kV/µs minimum common mode rejection (CMR) at VCM = 1000V
- ICC = 4.0 mA max supply current
- Wide operating VCC range: 15 to 30 V
- Industrial temperature range: -40 °C to +125°C
- Safety approvals
- UL recognized: 5000 VRMS for 1 minute
- CSA approved
- IEC/EN/DIN EN 60747-5-5 VIORM = 1,230 VPEAK
Applications
- IGBT/SiC gate drives
- AC and brushless DC motor drives
- Renewable energy inverters and storage
- Industrial inverters
- Switching power supplies
