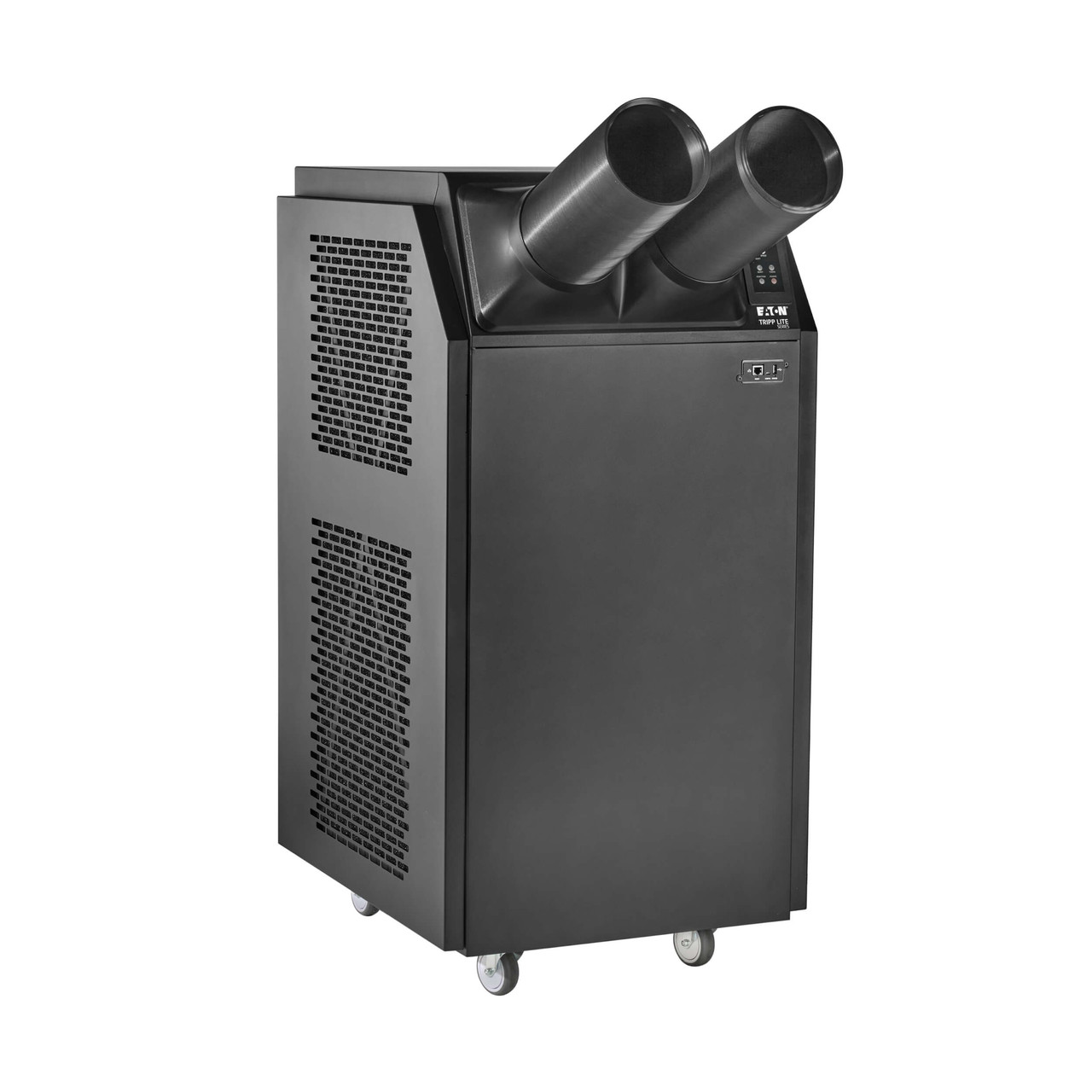

Eaton Tripp Lite series Portable AC Unit for Server Rooms - 24,000 BTU (7 kW), 208/240V, R32 Refrigerant, Black - SRCOOL24KE
The Eaton Tripp Lite Series Portable AC Unit for Server Rooms (SRCOOL24KE) is a compact, energy-efficient, and self-contained cooling solution engineered for server rooms, data centers, wiring closets, and other IT environments with heat-sensitive equipment. Delivering 24,000 BTU (7 kW) ASHRAE cooling capacity, this portable unit prevents equipment shutdowns, malfunctions, and failures caused by overheating or temperature fluctuations. Utilizing eco-friendly R32 refrigerant, the SRCOOL24KE achieves up to 34.7% greater energy efficiency compared to previous models and complies with stringent environmental standards set by the EPA, CEC, DoE, and NRCan. Its close-coupled cooling design directs cold air precisely where needed, while a built-in evaporator eliminates the need for water collection tanks or external condensers. Equipped with a pre-installed SRCOOLNET2LX network module for remote monitoring and control, this unit ensures reliable performance and easy management. With a plug-and-play design, a 2-year limited warranty, and a comprehensive accessory package, the SRCOOL24KE is ideal for supplemental, backup, or primary cooling in demanding IT setups.
Features
- High-Capacity Cooling: Provides 24,000 BTU (7 kW) ASHRAE/16,000 BTU (4.7 kW) SACC cooling power to protect servers, network switches, and other IT equipment from hazardous heat, preventing downtime and damage in server rooms and data centers.
- Eco-Friendly R32 Refrigerant: Uses R32 refrigerant with a lower global warming potential (GWP) than traditional refrigerants, ensuring compliance with EPA, CEC, DoE, and NRCan standards while achieving up to 34.7% improved energy efficiency over previous models.
- Close-Coupled Cooling Design: Directs cold air to specific heat loads, such as overheated rack enclosures or equipment hot spots, via a flexible cooling duct, reducing recirculation and increasing energy efficiency by up to 34.7%.
- Built-In Evaporator for Drip-Free Operation: Expels condensed water through the directional exhaust duct, eliminating the need for drain tubes, pans, or water collection tanks, simplifying maintenance and operation.
- Remote Monitoring and Control: Includes a pre-installed SRCOOLNET2LX network module with an ENVIROSENSE sensor for 24/7 monitoring of temperature and humidity, enabling remote management via SNMP, web browser, SSH, telnet, or PowerAlert® Device Manager to adjust settings, cycle power, and switch to dehumidification mode.
- Upgraded Hot Air Exhaust System: Features an IT-grade hot air exhaust fan that remains effective under high heat loads, with an included exhaust kit to vent hot air through a window or drop ceiling for optimal cooling performance.
- Flexible Cooling Options: Offers targeted cooling through a flexible duct or room-wide cooling via a louvered vent, with dehumidification and air filtration to enhance equipment reliability and operating conditions.
- Plug-and-Play Installation: Rolls on four casters into a compact 4-square-foot space and connects to a standard 208/240V 20A outlet via a 5.9 ft. 6-20P LCDI plug with leakage current protection, requiring no professional installation or external condensers.
- Automatic Restart and Timer: Programmed to restart automatically after power failures, with a built-in timer for unattended shutdown and startup, ensuring continuous operation without manual intervention.
- Comprehensive Package: Includes the SRCOOL24KE unit, SRCOOLNET2LX network module, ENVIROSENSE sensor, exhaust duct, cooling ducts, adapters, adjustable exhaust and cooling panels, self-tapping screws, drainage plugs, SNMP configuration cable, and owner’s manual for easy setup.
- 2-Year Limited Warranty: Backed by Eaton Tripp Lite’s commitment to quality, offering a 2-year limited warranty for reliable, long-term performance in critical IT environments.
