Gigabyte H231-H60 HCI Server – Intel DP 2U 2 Nodes Server - 6-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs - 2nd Gen. Intel Xeon Scalable and Intel Xeon Scalable Processors
Key features
- Supports up to 2 x double slot GPU cards
- NVIDIA validated GPU platform; Supports for NVIDIA Tesla GPUs
- 2U - 2 nodes with rear access to the node trays
- 2nd Gen. Intel Xeon Scalable and Intel Xeon Scalable Processors
- 4 x LGA 3647 sockets
- Intel C621 Chipset
- 6-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs
- Supports Intel Optane DC Persistent Memory
- 2 x Dedicated management ports
- 1 x CMC global management port
- 4 x 2.5" U.2, 20 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
- 4 x Low profile PCIe Gen3 expansion slots
- 2 x OCP Gen3 x16 mezzanine slots
- Aspeed AST2500 remote management controller
- 2200W 80 PLUS Platinum redundant PSU
- Optimized performance with Mellanox Infiniband EDR 100G or Ethernet 100G products
2nd Generation Intel Xeon Scalable Family Ready
GIGABYTE’s servers are fully ready to support the second generation of Intel Xeon Scalable Family processors, codenamed “Cascade Lake”, which bring the following major enhancements:
- Intel Optane Persistent Memory: Built-in support for this revolutionary new product based on Intel’s 3D Xpoint technology
- Overall Performance: Higher CPU frequencies, improved turbo profiles vs. prior-gen Intel Xeon Scalable processors
- Increased DDR4 Memory Speed & Capacity: Up to 2933MHz (1 DIMM per channel on some SKUs), 16Gb based DIMM supported
- Intel Deep Learning Boost: Significantly accelerates inference performance for deep learning workloads optimized to use VNNI (Vector Neural Network Instructions)
- Security: Hardware mitigations for Meltdown / Spectre security vulnerabilities
Intel Xeon Scalable Family Processors
GIGABYTE’s Intel Xeon Scalable Processor family servers are available in dual socket configurations, and are compatible with the full family* of different SKUs (Bronze, Silver, Gold and Platinum) that are workload optimized to support different applications, from enterprise IT database, cloud and storage to the most high-demand HPC workloads.
* SKU compatibility will depend on the maximum CPU TDP supported for each system, please refer to each product’s specification page for further information
Advanced features built into the silicon include:
- Intel QAT: Speed up data compression and cryptography with integrated Intel QuickAssist Technology (QAT).
- Intel AVX-512: Intel Advanced Vector Extension 512 instruction set architecture enables workload-optimized performance and throughput increases for advanced analytics, high performance computing (HPC) applications, and data compression.
- Intel VROC: Intel Xeon Scalable Processors come with built-in support for Intel VROC (Virtual RAID on CPU). And Gigabyte Intel Xeon Scalable NVMe SKU servers all ship with an Intel VROC module as standard.
- Intel Omni-Path: Selected Gigabyte servers support CPU SKUs with integrated Intel Omni-Path Fabric connection
Compute
Memory
I/O
GIGABYTE’s second generation Intel Xeon Scalable family servers come ready to support Intel Optane Persistent Memory, a revolutionary new product that re-defines traditional memory & storage architectures by enabling a large persistent memory tier between DRAM and SSDs, that’s higher capacity than DRAM and faster than SSDs, enabling the user to bring more data closer to the CPU for faster time for insight.
Optane Persistent Memory Modules (“PMem”) integrate seamlessly into existing DDR4 DIMM slots, and use Intel’s 3D Xpoint memory technology, which unlike DRAM retains data after power is removed. The modules will be available in capacities up to 512GB – a massive increase compared to the current maximum 128GB of industry-leading DDR4 memory sticks – and can be addressed by the OS or application either as memory (Memory Mode) or storage (Application Direct Mode).
Note: the maximum number of Intel Optane PMem that can be installed per system and the DIMM slot positions that can be used for PMem will vary according to each server model due to thermal considerations. Please refer to each product’s specification page for further instructions.
This server product is enabled for Intel VROC (Virtual RAID on CPU) to enable software RAID on connected NVMe SSDs, and ships with a VROC key as standard*
* Intel SSD Only VROC Key
Dense Add-On Slot DesignGigabyte delivers best-in-class comprehensive add-on slot options:

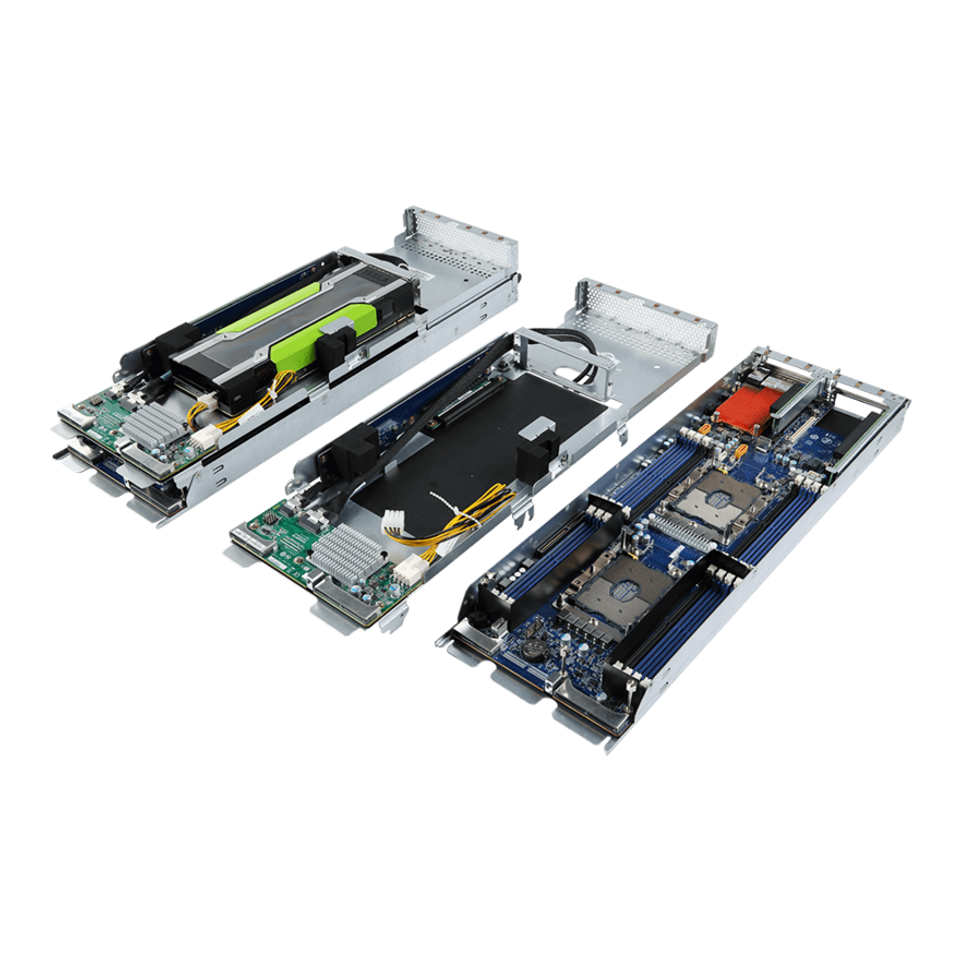

Each node carries 2 x LP and 1 x OCP slots
Replaces the top 2 nodes with dedicated GPU slots
GIGABYTE’s H-Series Servers feature an Aspeed CMC (Chassis Management Controller) for chassis-level management and node-level monitoring (by connecting internally to Aspeed BMCs integrated on each node). This results only in one MLAN connection required to perform monitoring of all four nodes*, resulting in less ToR (Top of Rack) cabling and switch connections.
* IPMI only, without iKVM functionality
Gigabyte H-Series servers feature the ability to create a “ring” connection for monitoring & management of all servers in a rack for greater cost savings and management efficiency.
Gigabyte systems are thermally designed to provide optimal support for the maximum range of CPU SKUs. On certain models, high density fan designs enable efficient performance at up to 165W TDP.
GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.
Gigabyte continues to be responsive to market needs and to create user-friendly solutions, including:
- Tool-less rail kit included as a default across all new server models
- Supplying multiple connector options and tools where appropriate
Gigabyte SERVER Xeon Scalable servers are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.
Cold Redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher loading, Gigabyte has introduced a power management feature called Cold Redundancy for servers with dual PSU. When the total system loading falls lower than 40%, the system will automatically place one PSU into standby mode, enabling the other PSU to take over the greater load. This can enable total system power efficiency savings of up to 10%.
System Power Efficiency
Gigabyte Management Console
Gigabyte server utilizes the AMI MegaRAC SP-X solution for BMC server management, has a browser-based graphical user interface, and is feature-rich and easy to use.
- RESTful API support includes the latest DMTF standard of Redfish. Allows integration with 3rd party applications for server management
- Including HTML5 based iKVM remote management client, no need to purchase other additional licenses
- Detailed FRU information from SMBIOS
- 10 to 30 seconds pre-event automatic recording function
- SAS / RAID controller monitoring function
Gigabyte Server Management (GSM)
Gigabyte Server Management (GSM) is GIGABYTE’s proprietary multiple server remote management software platform, available as a free download from each Gigabyte server product page. GSM is compatible with either IPMI or Redfish connection interfaces, and comprises the following sub-programs:
- GSM Server
A software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple Gigabyte servers via each server node’s BMC. - GSM CLI (GBT Utility)
A command-line interface program to enable global remote monitoring and management of multiple Gigabyte servers via each server node’s BMC. - GSM Agent
A software program installed locally on each Gigabyte server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI. - GSM Mobile
A remote server management mobile APP, available for both Android and iOS. - GSM Plugin
A plugin that allows the user to manage and monitor Gigabyte server nodes within VMware’s vCenter.
Automatic Fan Speed Control
To achieve the best cooling and power efficiency, Gigabyte servers are enabled with automatic fan speed control. Individual fan speed will be automatically adjusted according to CPU, DIMM, M.2, HDD, and GPU temperature sensors. When BMC detects a temperature change at a particular location, the corresponding fan speed will be changed accordingly.
Certified Ready with Software Partners
Being a member of key software alliance partner programs enables Gigabyte to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.
Support Various Computing Accelerators
Gigabyte servers have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for deep learning, high performance computing (HPC), enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.
