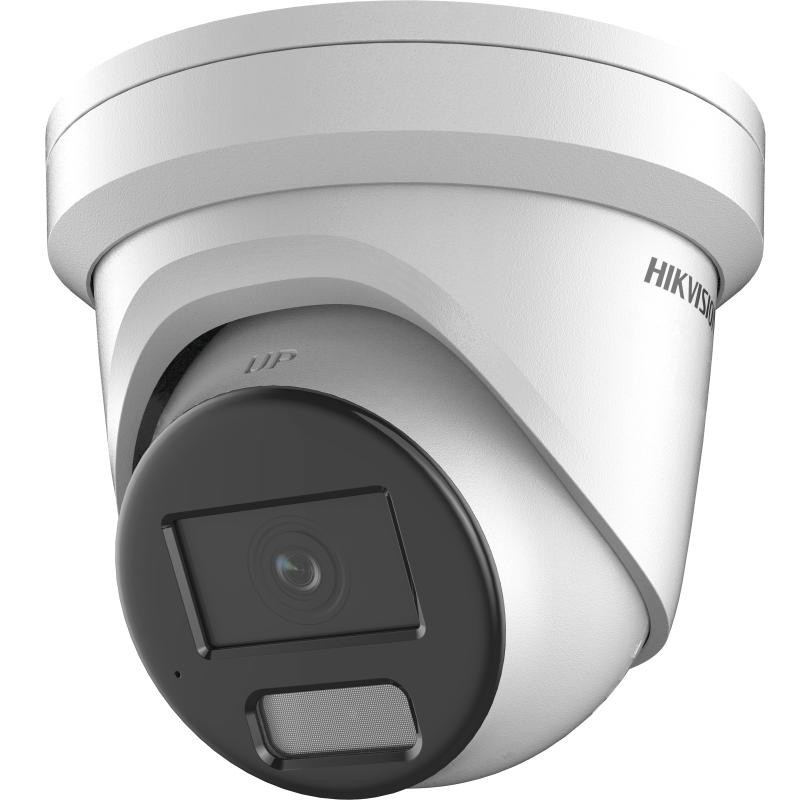

Hikvision 4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera

• High quality imaging with 4 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

Specification

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°

4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°

• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:

• mm: 2.5 m to ∞

4 mm: 3.1 m to ∞

DORI

• DORI:

• mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m

4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light:  Yes
• IR Wavelength: 850 nm

General

• Power:

12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 6 W

• Material:

Cover: Metal, main body: Metal

• Dimension: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
• Package Dimension: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
• Weight: 770 g (1.7 lb.)
• With Package Weight: 1040 g (2.3 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Start up and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
