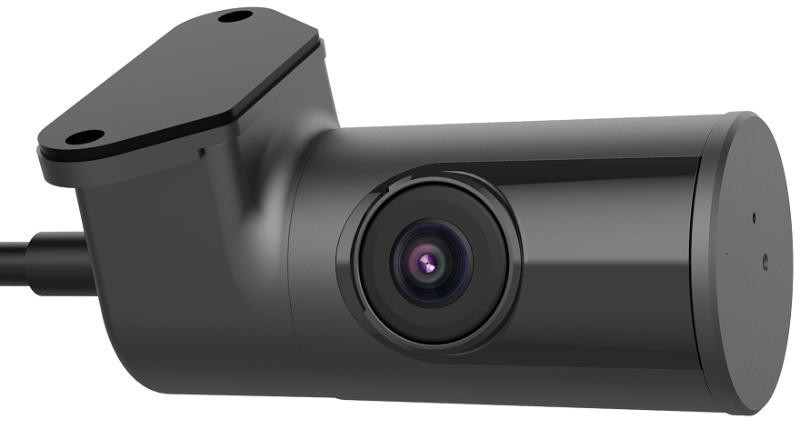

Hikvision 720P 1/2.9”CMOS Infrared Array Cylindrical Analog Camera - AE-VC143T-ITS(2.1mm)(2m)

• Adopts progressive scan CMOS to prevent motion image aliasing
• Supports HD coaxial output with the resolution 720P
• Min. illumination: 0.1 Lux @(F1.2, AGC ON), 0 Lux with IR
• Supports auto day & night switch
• Adopts auto electronic shutter to adapt to different environment
• Support auto gain control and self-adaption to light
• Shock-proof design

Datasheet

Specification

Camera

• Shutter Speed: 1/25 s to 1/30,000 s
• P/N: NA
• Wide Dynamic Range: NA
• Day & Night: Electronic

Lens

• Fixed Aperture: F2.0
• Lens Mount: M12

Video

• Frame Rate: 720P@25 fps


• SNR: 42 dB

Interface

• Video Output: TVI
• Built-in Microphone: Yes
• Built-in Speaker: No
• Audio: Yes
• Interface Style;

1 Vpp Composite Output (aviation plug or BM4F plug )

aviation plug：1: video, 2: Audio, 3: power, 4: ground

BM 4F plug: 1:power ,2：ground，3：Video，4：Audio

Supplement Light Unit

• Power Supply: 9 to 16 V DC
• Power Consumption: Max. 2 W

General

• Camera Material: Plastic
• Camera Dimension: 61 mm × 39 mm × 33mm
• Startup and Operating Conditions: -40 °C to 75 °C (-40 °F to 167 °F), 90%
