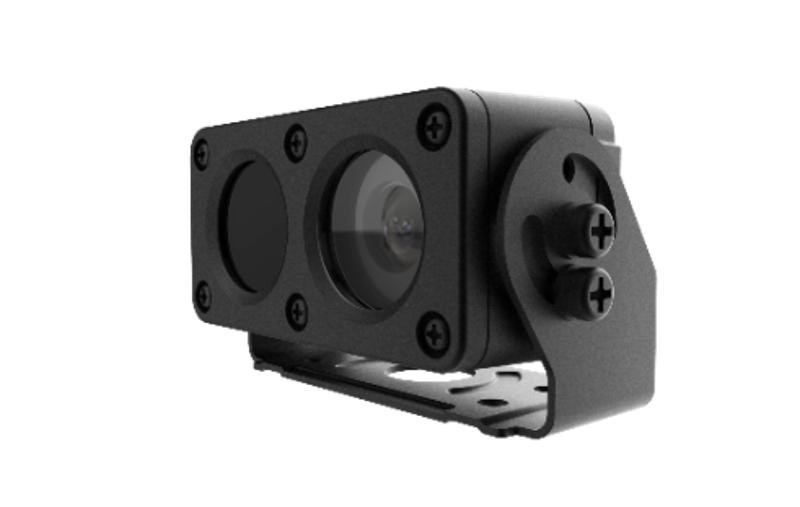

Hikvision 720P 1/2.9”CMOS Infrared Array Square Analog Camera - AE-VC153T-IT(3.6mm)
- Progressive scan CMOS
- Up to 720P resolution
- Low illumination, 0.1 lux @ (F1.2, AGC ON), 0 lux with IR
- Supports auto electronic day & night switch
- Supports auto white balance
- Supports left & right mirror mode
- IP 68 protection level
DatasheetSpecification
Camera
- Shutter Speed: 1/25 s to 1/50,000 s
- P/N: P (Default format is PAL and support switching to NTSC)
- Wide Dynamic Range: 85dB
- Day & Night: Electronic
Lens
- Lens Mount: M12
Video
- Frame Rate: 720P@25 fps
- SNR: 42 dB
Interface
- Video Output: TVI
- Built-in Microphone: No
- Built-in Speaker: No
- Audio: No
- Interface Style;
1 Vpp Composite Output (aviation plug)
1: video, 2: empty, 3: power, 4: ground
Supplement Light Unit
- Power Supply: 9 to 16 V DC
- Power Consumption: Max. 2.5 W
General
- Camera Dimension: 83.2 mm × 46 mm × 41.6 mm (3.28" × 1.81" × 1.64")
- Startup and Operating Conditions: -40 °C to 75 °C (-40 °F to 167 °F), 90%
