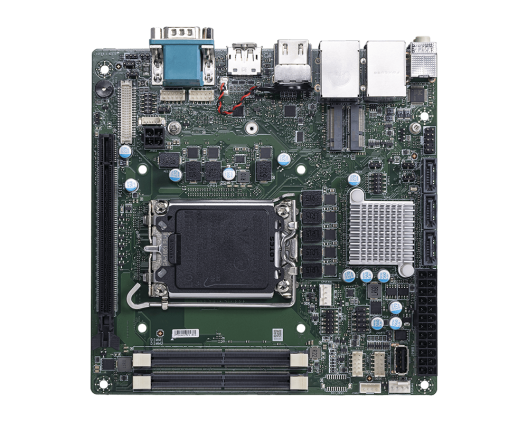

MSI MS-CF23 Mini-ITX with 15th Gen Intel Arrow Lake-S Core Ultra 9/7/5 Series Processor, & Intel H810 for Mainstream Solution

Product code: UK-MSI-MS-CF23
Condition: New
Availability: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.uk | Call Us: +44 330 043 2524

Request A Quote

MSI MS-CF23 Mini-ITX with 15th Gen Intel Arrow Lake-S Core Ultra 9/7/5 Series Processor, & Intel H810 for Mainstream Solution Intel 15th Gen Arrow Lake…

MSI MS-CF23 Mini-ITX with 15th Gen Intel Arrow Lake-S Core Ultra 9/7/5 Series Processor, & Intel H810 for Mainstream Solution

MSI MS-CF23 Mini-ITX with 15th Gen Intel Arrow Lake-S Core Ultra 9/7/5 Series Processor, & Intel H810 for Mainstream Solution

MSI MS-CF23 Mini-ITX with 15th Gen Intel Arrow Lake-S Core Ultra 9/7/5 Series Processor, & Intel H810 for Mainstream Solution

  • Intel 15th Gen Arrow Lake-S Core Ultra 9/7/5 Series with H810
  • 2 DDR5 5600 MT/s SODIMM&CSODIMM slots up to 96GB
  • Triple independent displays: DP, HDMI, LVDS
  • 1 2.5GbE LAN with RJ-45, 1 GbE LAN with RJ-45
  • 1 PCIe x16 (Gen 5)
  • 1 M.2 E Key Slot
  • 1 M2 M Key, 3 SATA 3.0 for storage
  • 2 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 5 USB 2.0,4 COM (1 RS-485), GPIO, Audio, System FAN
  • Onboard TPM 2.0
  • SMBus
  • ATX Power

Specifications

Processor

  • CPU
  • 15th Gen Intel Arrow Lake-S Core Ultra 9/7/5 Series Processor, Max. TDP-65W
  • Frequency
  • Depends on CPU
  • L2 Cache
  • Depends on CPU
  • CPU Type
  • Socket (LGA 1851)
  • Chipset
  • Socket LGA1851
  • BIOS
  • AMI UEFI

Memory

  • Technology
  • Dual-channel DDR5 Non-ECC 5600 MT/s
  • Max. Capacity
  • Up to 96GB
  • Socket
  • 2 x 262-pin DDR5 SO-DIMMs

Display

  • Controller
  • Intel UHD Graphics
  • Graphic Memory
  • Depends on CPU
  • LVDS
  • 1 x Dual channel 18/24-bit
  • eDP
  • --
  • VGA
  • --
  • DVI
  • --
  • HDMI
  • 2
  • DisplayPort
  • 1
  • Multiple Display
  • 3 independent displays
  • Display Interface
  • HDMI up to 4096 x 2160 @30Hz
    DP up to 4096 x 2304 @60Hz
    LVDS up to 1920 x 1200 @60Hz

Ethernet

  • Controller
  • 1 x Intel I219-LM GbE LAN PHY
    1 x Intel I226-V 2.5GbE LAN

Audio

  • Controller
  • Realtek ALC897 Audio Codec (Co-lay ALC888S)

Super I/O

  • Controller
  • Fintek F81966D-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes

TPM

  • Controller
  • Infineon SLB 9672VU2.0

I/O Interface

  • PS/2
  • --
  • USB
  • 2 x USB 10Gbps (rear)
    2 x USB 5Gbps (rear)
    5 x USB 2.0 (5 x Internal with one Vertical Type-A)
  • Parallel
  • --
  • Serial
  • 4 x COM ports
    COM1: RS-232/422/485, Auto-flow Control
    COM2~4: RS-232
  • GPIO
  • 8-bits (4 x GPI; 4 x GPO), 5V

Expansion Slot

  • PCIe x16
  • 1 x PCIe x16 (Gen 5)
  • PCIe x8
  • --
  • PCIe x4
  • --
  • PCIe x1
  • --
  • PCI
  • --

Storage

  • SATA
  • 3 x SATA 3.0 (AHCI Mode Supported)
  • IDE
  • --
  • eSATA
  • --
  • CFast
  • --
  • mSATA
  • --
  • CompactFlash
  • --

Power Supply

  • DC Input
  • --
  • ATX
  • ATX-Power 24P, 12V-8P

Environment

  • Operating Temperature
  • 0 ~ 60°C
    Note: Thermal Test w/ Airflow:0.7m/s
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C

Form Factor

  • Dimensions
  • 170 x 170 mm (Mini-ITX)
  • Weight
  • 0.40 kg

Certification

  • EMC
  • CE, FCC Class B, BSMI, RCM, VCCI, UKCA

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise LTSC (64-bit)
    Windows 11 IoT Enterprise LTSC (64-bit)
    Linux (Support by request)
