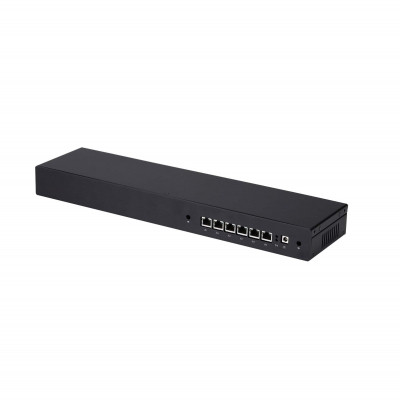

The Qotom Mini PC Q515G6 1U is a powerful and versatile mini PC that is perfect for a variety of applications. It features an integrated 7th generation Intel Celeron processor, 6 groups of Gigabit Intel network cards, HDMI+VGA dual display, DDR4 memory, up to 2 serial ports, 8 USB, and 2 RS485 ports. This makes it ideal for use as a server, media center, or industrial control unit.
Here are some of the benefits of using the Qotom Mini PC Q515G6 1U:
- Powerful performance: The Qotom Mini PC Q515G6 1U is powered by an integrated 7th generation Intel Celeron processor, which provides plenty of power for even the most demanding tasks.
- Versatile connectivity: The Qotom Mini PC Q515G6 1U features 6 groups of Gigabit Intel network cards, HDMI+VGA dual display, DDR4 memory, up to 2 serial ports, 8 USB, and 2 RS485 ports. This makes it perfect for use in a variety of applications.
- Easy to use: The Qotom Mini PC Q515G6 1U is easy to install and use. Simply connect it to your network and power, and you're ready to go.
| Description | |
| CPU | Intel Celeron Skylake SOC Processor, Default 3865U Dual core 2M Cache, 1.8 GHz, 15W |
| Memory | Single Channel DDR4 2133/2400MHz SDRAM, Max Support to 16G |
| Chipset | By CPU |
| Display | Intel HD Graphics |
| 1 x HDMI, 1 x VGA(Option) | |
| Ethernet | 6 x Intel I211AT Gigabit LAN |
| 1 x MiniPCIE, Default Half-length for Wi-Fi Module, Full-length for 3G/4G Module | |
| Audio | N/A |
| Storage | 1 x mSATA，1 x SATA 3.0 |
| USB | 2 x USB 3.0，2 x USB 2.0 |
| Serial | 1 x RS-232 (Option) |
| WatchDog | Yes |
| GPIO | Yes |
| RS-485 | 2 (Option) |
| Power On | Yes |
| Front I/O | |
| Power Button | 1 |
| Display | 1 x HDMI |
| Serial | 1 x RS-232 |
| USB | 2 x USB 3.0，2 x USB 2.0 |
| Rear I/O | |
| DC-IN | 12V3A，5.5mm，2.5mm |
| LED | 1 x Power LED, 1 x HDD LED |
| Ethernet | 6 x Intel I211AT Gigabit LAN |
| Other | |
| Material | Aluminum |
| Dimension | 187 x 111 x 50mm |
| Weight | 1kg |
| Packaging Dimension | 260 x 220 x 75mm |
| Kensington Lock | Yes |
| Cooling Mode | Fanless, passctive cooling |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | Windows 7，Windows 8，Windows10，Linux |
| Environmental | |
| Operting Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Packlist | |
| PackList | 1 x MiniPc，1 x Power supply，1 x Power cable，1 x VESA |
