Startech 1 Port Low Profile PCI Express Serial Card - 16550 - Add a RS-232 serial port to your standard or small form factor computer through a PCI Express expansion slot - pci express serial card - pci-e serial card - pci express RS232 - rs232 card - pci serial adapter CARD SERIAL RS232 CARD

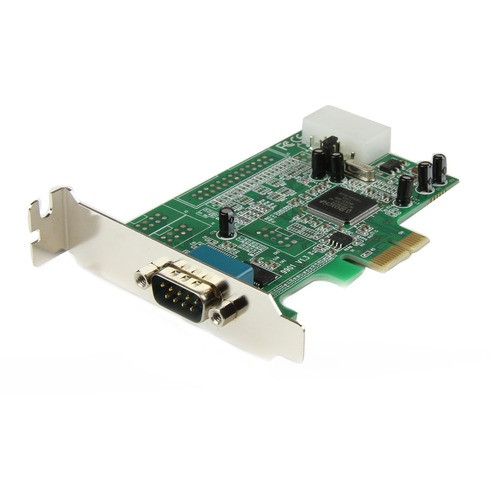

The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX1S552LP card.
Backed by a Startech 2-year warranty and free lifetime technical support.
- One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
- Ships with half-height/low profile mounting bracket, includes standard bracket
- Selectable power output on pin 9 for the serial port
- Native single-chip, single lane PCI Express
- Single chip design optimizes speed and reliability
- Compliant with PCI Express base specifications revision 1.1a
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
- Automated in-band software flow control using programmable Xon/Xoff in both directions
- 256 Byte FIFO
The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® 2000/XP/2003/VistaÂ/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX1S552LP card.
Backed by a Startech Lifetime warranty and free lifetime technical support.
| Number of Serial Ports (External) | 1 |
| Limited Warranty | 2 Year |
| Weight (Approximate) | 1.60 oz |
| Form Factor | Plug-in Card |
| Length | 4.1" |
| Height | 0.8" |
| Width | 3.1" |
| Card Height | Low-profile |
| Product Type | Serial Adapter |
| Manufacturer Part Number | PEX1S553LP |
| Manufacturer Website Address | http://www.StarTech |
| Manufacturer | StarTech |
| Product Model | PEX1S553LP |
| Product Name | 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART |
| Brand Name | StarTech |
| Host Interface | PCI Express x1 |
| Data Transfer Rate | 460kB/s |
| Platform Supported | Linux |
| Mac | |
| PC | |
| UART Type | 16550 |
| Additional Information |
|
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Certification | WEEE |
| REACH | |
| RoHS | |
| TAA Compliant | Yes |
