The NEC direct view indoor LED FA Series provides crystal clear images for the ultimate visual experience and are the ideal solutions for today s demanding applications.
The NEC direct view indoor LED FE Series provides vibrant LED imaging in a cost effective package and are the ideal solutions for today’s demanding applications. This 165" UHD kit is built with NEC’s 0.95mm LED-FE009i2 module designed for vibrant and colorful content visualization and is ideal for viewing from 3 to 6 feet away. The FE Series delivers unmatched brightness among fine-pitch DvLEDs. Boardrooms, auditoriums, retail, airport signage, and situational awareness are just some of the applications where the NEC FE Series is designed to be integrated. The FE Series is engineered with Multi-Color LEDs that deliver excellent imaging at a low cost and have no external cables required for installation. The front serviceable design allows for easy access and quick maintenance when needed. NEC offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what’s most important – your business.

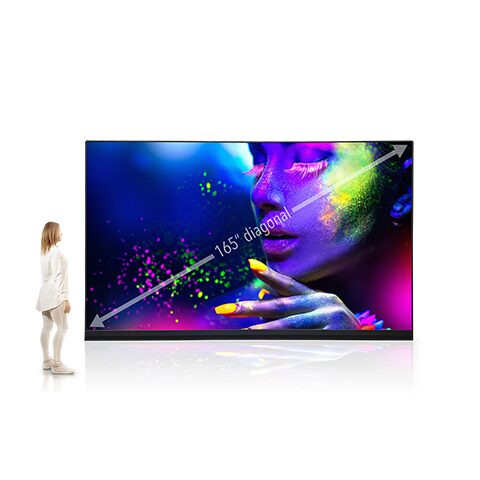

- 165” diagonal screen size
- UHD (3840x2160) resolution with a refresh rate of >= 3840 Hz
- Kit includes everything needed for an LED installation including the LED modules, power bar, LED controller, mounting structure, overframe kit as well as spare parts and a pixel card removal tool
- Front serviceable modules allowing for installation in difficult to access areas
- Pixel cards are hot-swappable and can be replaced without turning the display off
- Shallow depth (3.2” installed) and reduced weight allow for greater installation flexibility and also meet ADA requirements
- Improved LED performance with better contrast, viewing angles, brightness uniformity and color uniformity
- To learn more about NEC’s FE Series.
- Standard installation included.
Display
| Panel Technology | Direct View LED | Viewable Image Size | 165 in. |
| Aspect Ratio | 16:9 | Native Resolution | 3840x2160 |
| Module Resolution | 640 x 360 | Pixel Configuration | 4-1 IMD (Black) |
| Pixel Pitch | 0.95 mm | Brightness (typical) | 600 cd/m2 |
| Brightness (maximum) | 660 cd/m2 | Contrast Ratio (typical) | 5000:1 |
| Viewing Angle (typical) | 70/70 horizontal / 70/70 vertical | Refresh Rate | Up to 3840 Hz |
| Active Screen Area | 143.4 x 81 in. / 3648 x 2052 mm | Orientation | Landscape |
| Dimming Capability | 256 levels | Color Processing | Up to 16 bit |
| Displayable Colors | 281 Trillion | Color Temperature (Max) (°K) | 3000 |
| Color Temperature (Typical) (°K) | 6500 | Color Temperature (Min) (°K) | 9500 |
| Gamma (Max) | 4.0 | Gamma (Typical) | 2.8 |
| Gamma (Min) | 1.0 | Lifetime | 100,000 hours |
| UNSPSC Code: | 43211902 |
Manufacturer Standard Warranty
