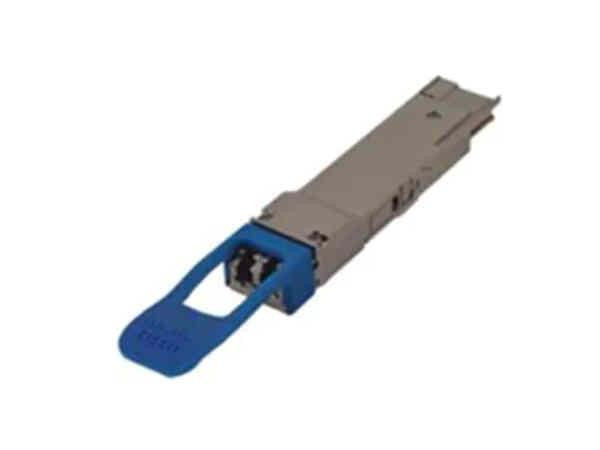

The Cisco QDD-400G-LR4-S Module supports link lengths of up to 10km SMF with duplex LC connector. It is compatible to IEEE 802.3cu for 400GBASE-LR4-6km requirements but extends the reach to 10km, is compliant to100G Lambda MSA group 400G-LR4 requirements, and 400GAUI-8/CEI-56G-VSR-PAM4 standards. The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.
- Primary Information
Device Type: Transceiver Form Factor: QSFP-DD Cabling Type: SMF Data Transfer Rate: 400 Gbps Wave Length: 1270nm, 1290nm, 1310nm, 1330nm Max Transfer Distance: 10 Km Interfaces: Duplex LC - Networking
Data Link Protocol: Gigabit Ethernet - Dimensions&Miscellaneous
Width: 18.4 Mm Height: 8.5 Mm - Service&Support
Service & Support Type: 5 years Standard warranty - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 43222608
