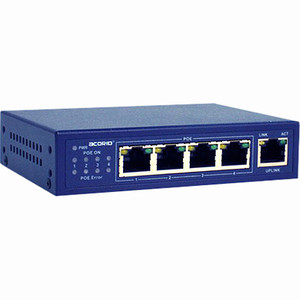

4XEM 4-Port PoE+(Plus) 25.5Watt 10/100Mbps Ethernet Switch - 4 Ports - Fast Ethernet - 10/100Base-TX - 2 Layer Supported - Power Supply - Twisted Pair - PoE Ports - Desktop - 1 Year Limited Warranty PORT 10/100MBPS ETHERNET SWITCH
With 25.5 watt Power over Ethernet (PoE) available on all 4 ports, 4XEM'S 4-Port PoE+ 10/100M Desktop Switch (4XLS5004P255) delivers fast 10/100Mbps Ethernet network capabilities plus industry-standard IEEE 802.3af 25.5 watt power over UTP Cat 5 or higher to network devices requiring higher power needs. Works right out of the box, with no software to configure. A simple, cost-effective, and highly reliable network data connection, it makes a great solution for expanding your home or office network.
Problem it solves: No separate power supplies or power outlets needed. Drive up to 4 high powered IEEE 802.3af compliant devices with this hard working, high performing PoE+ switch.
4XEM gear is respected industry wide for its high performance, premium quality and durability.
Miscellaneous
| Certifications & Standards | IEEE Standards:
- 802.3i
- 802.3x
- 802.3af
- 802.3at
Electromagnetic Emissions" - CE mark,commercial
- FCC Part 15 class B
- C tick
- EN55024
- VCCI Class B
- EN55022,ClassB
Safety: - CE Mark,commercial
- CE/LVD EN60950
|
Network & Communication
Warranty
Physical Characteristics
| Weight (Approximate) | 10.58 oz |
| Form Factor | Desktop |
Power Description
| Input Voltage | 48 V DC |
| Power Source | Power Supply |
| PoE (RJ-45) Port | Yes |
Interfaces/Ports
| Token Ring Port | No |
| LRE Port | No |
| Uplink Port | Yes |
| Number of PoE+ (RJ-45) Ports | 4 |
| Bypass | No |
| Total Number of Network Ports | 4 |
| Port/Expansion Slot Details | 4 x Fast Ethernet Network |
Media & Performance
| Network Technology | 10/100Base-TX |
| Twisted Pair Cable Standard | Category 5 |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 4XLS5004P255 |
| Manufacturer Website Address | http://www.4xem.com |
| Manufacturer | 4XEM Corporation |
| Product Model | 4XLS5004P255 |
| Product Name | 4-Port PoE+(Plus) 25.5Watt 10/100Mbps Ethernet Switch |
| Product Series | LS5000 |
| Brand Name | 4XEM |
