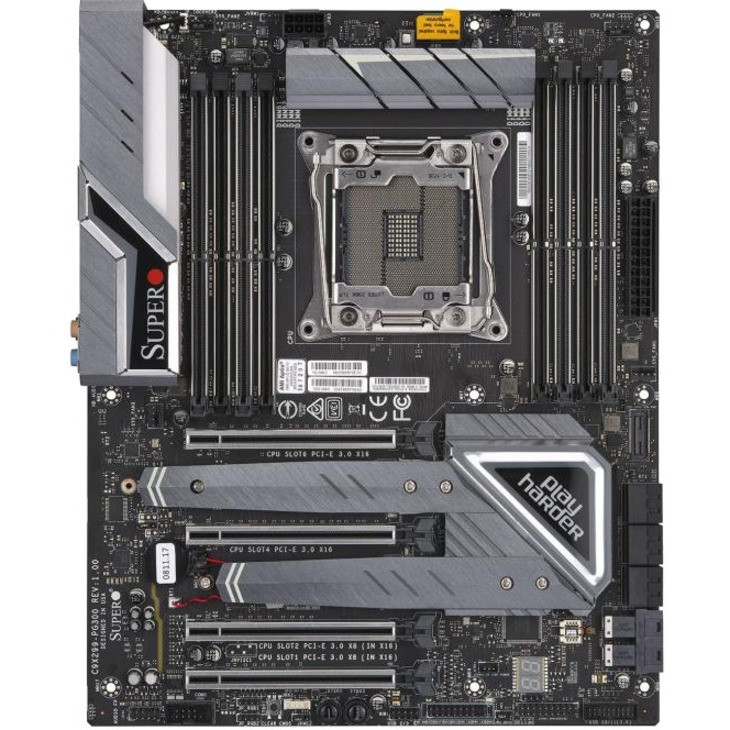

Supermicro C9X299-PG300 Desktop Motherboard - Intel Chipset - Socket R4 LGA-2066 - Intel Optane Memory Ready - ATX - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 8 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces ATX LGA2066SOCKET-R4 X299PCH
Core™ X-Series Processor Based Motherboards
X299 chipset / Socket R4 Boards
Supermicro 's new ATX form factor motherboards using Intel® X299 Express Chipset supports Intel® Core™ i9/i7/i5 X-Series Processors. The X299 new platform supports overclocking of CPU and Memory with increased performance, with SuperO Booster and Intel XTU/management tool. Ideal applications include workstation and high frequency trading.
| Onboard Video | No |
| Limited Warranty | 1 Year |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| Total Number of USB Ports | 8 |
| Number of USB 3.0 Ports | 4 |
| Number of USB 3.1 Ports | 2 |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Maximum Memory | 128 GB |
| 128 GB | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 8 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 2666 MHz |
| 2400 MHz | |
| 2133 MHz | |
| 1866 MHz | |
| 2666 MHz | |
| 1600 MHz | |
| 1866 MHz | |
| 2133 MHz | |
| 2400 MHz | |
| 1600 MHz | |
| Intel Optane Memory Ready | Yes |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 3.0 Ports | 2 |
| Number of M.2 Interfaces | 2 |
| Processor Supported | Core X-Series |
| Total Processor Supported | 1 |
| Processor Socket | Socket R4 LGA-2066 |
| Chipset Manufacturer | Intel |
| Package Contents |
|
| Compatibility | Chassis (Optimized for C9X299-PG300):
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| WEEE |
| RAID Levels | 5 |
| 0 | |
| 10 | |
| 1 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | MBD-C9X299-PG300-O |
| Manufacturer Website Address | http://www.Supermicro .com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | C9X299-PG300 |
| Product Name | C9X299-PG300 Desktop Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
