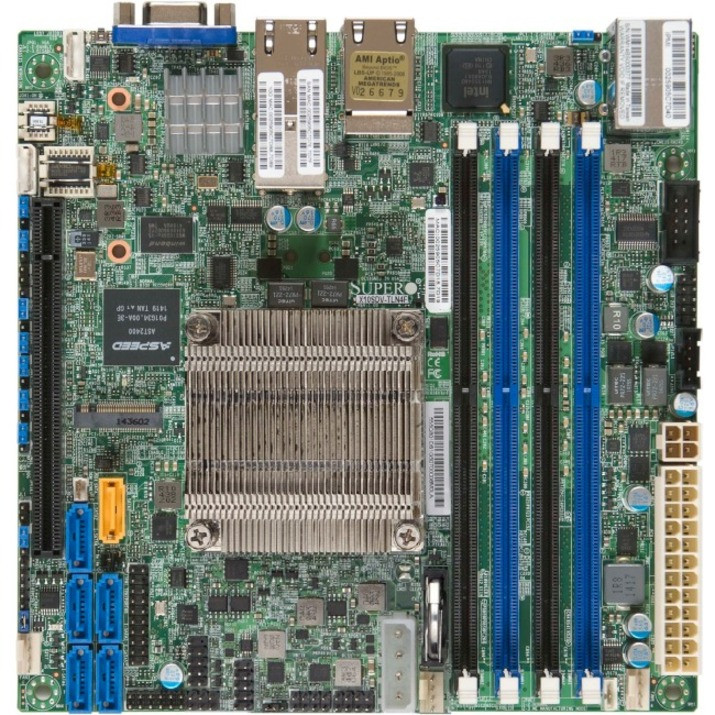

Supermicro X10SDV-6C-TLN4F Server Motherboard - Intel Chipset - Socket BGA-1667 - Mini ITX - Intel Xeon D-1528 - 128 GB DDR4 SDRAM Maximum RAM - UDIMM, RDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces D-1528 128GB-MAX MITX PCIEX16
X10SDV Embedded Boards / Xeon D SoC BGASupermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon®/Pentium® System-on a-Chip (SoC) D-1500 Family solutions. The X10SDV series offer infrastructure optimization, by combining the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. With server-class reliability, availability and serviceability (RAS) features now available in an ultra-dense, low-power device, the X10SDV will be able to deliver balanced compute, storage and intelligent edge networks and appliances. These advanced technology building blocks offer the best work load optimized solutions and long life availability with the Intel® Xeon®/Pentium® processor D family, with up to 128GB DDR4 ECC RDIMM operating at 2133MHz, USB 3.0 I/O, six SATA3.0 storage and dual 10 GbE LAN networking ports.
Features
- Intel® Xeon® processor D-1528, Single socket FCBGA 1667; 6-Core, 12 Threads, 35W
- System on Chip
- Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
- 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
- 2 10GbE and 2 GbE LAN ports
- 6 SATA3 (6Gbps) ports via SoC
- 2 USB 3.0 ports (rear) 4 USB 2.0 ports (via headers)
- 1 SuperDOM, 1 COM, TPM header, GPIO and SMbus headers
- 12V DC Input and ATX Power Source
