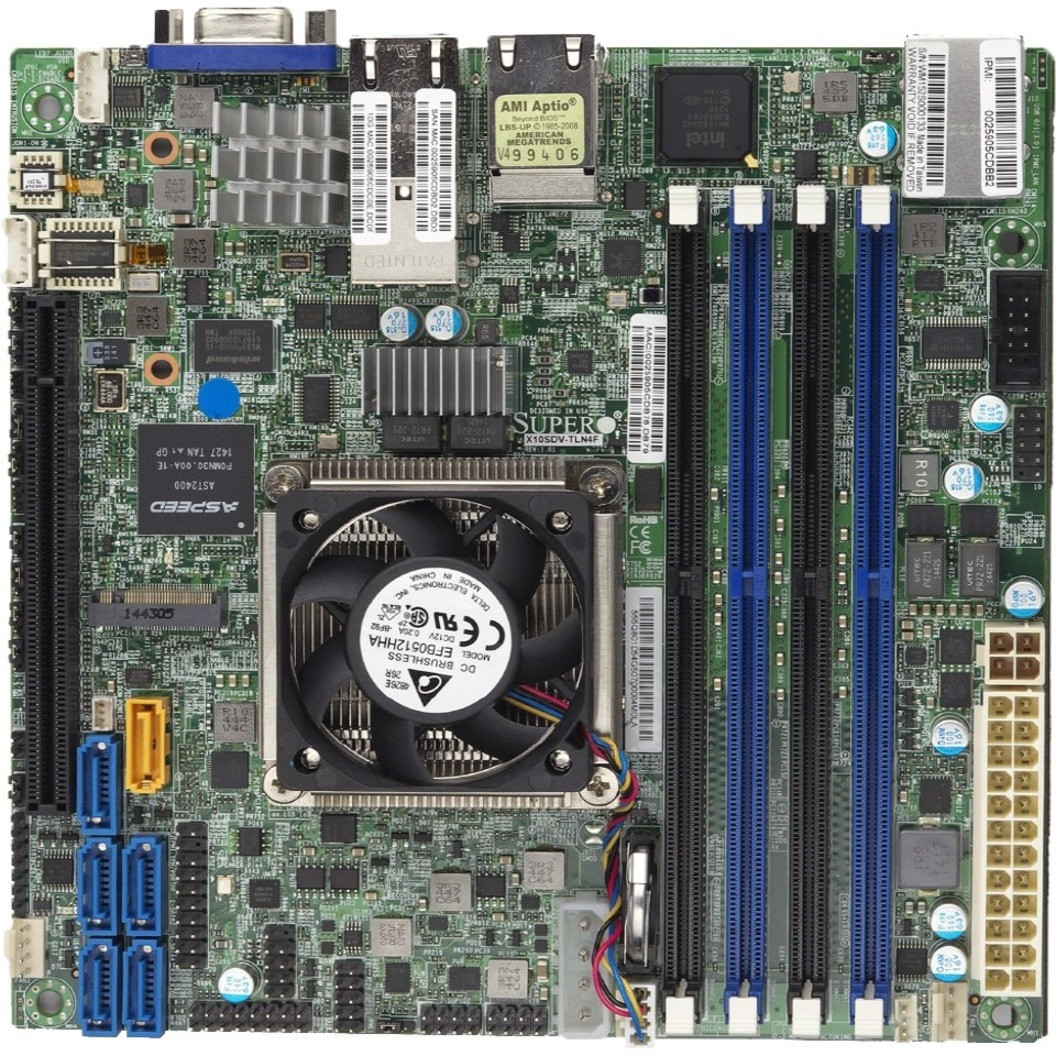

Supermicro X10SDV-8C-TLN4F Server Motherboard - Intel Chipset - Socket BGA-1667 - Mini ITX - Intel Xeon D-1541 - 164 GB DDR4 SDRAM Maximum RAM - DDR4-2133/PC4-17000, DDR4-1866/PC4-14900, DDR4-1600/PC4-12800 - DIMM, RDIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces
- Dimensions&Miscellaneous
Model: MBD-X10SDV-8C-TLN4F Width: 6.7 Inch Depth: 6.7 Inch - Primary Information
Mainboard Form Factor: Mini ITX Mainboard / Chipset Type: System on Chip Compatible Processors: Intel Xeon Processor D-1541. Networking Type: Gigabit Ethernet Features: 1 SuperDOM, 1 COM, TPM header, GPIO and SMbus headers; 12V DC Input and ATX Power Source - Processor
Processor / Socket Type: FCBGA1667 - Memory
RAM / Technology: DDR4 RAM / Max Supported Size: Up to 128GB Registered ECC RDIMM, DDR4-2133MHz; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots GB - Storage
Controller Interface Type: SATA III - Expansion
Expansion Slots Total (Free): 1 PCI-E 3.0 x16; 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280 Interfaces & Connections: 4 USB 2.0 ports (4 headers, Type A)); 2 USB 3.0 ports (2 rear); 2 RJ45 10GBase-T ports; 2 RJ45 Gigabit Ethernet LAN ports; 1 RJ45 Dedicated IPMI LAN port; 1 VGA port; 1 COM Port (1 header); 6 SATA3 (6Gbps) port - UNSPSC Code
UNSPSC Code: 43201513
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +44 330 043 2524 | You can also use the quote request page
