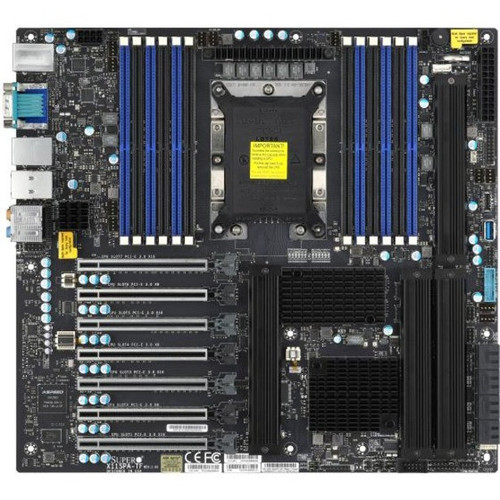

Supermicro X11SPA-TF Workstation Motherboard - Intel C621 Chipset - Socket P LGA-3647 - Extended ATX - 3 TB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 12 x Memory Slots - Gigabit Ethernet - 8 x SATA Interfaces SUPPORT SINGLE XEON SPPR
BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)
Supermicro 's new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 2TB DDR4 2933MHz in 8 DIMM slots with support for Intel® Optane™ DC Persistent Memory per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| Number of Total Expansion Slots | 7 |
| Number of PCI Express x16 Slots | 7 |
| Total Number of PCI Express Slots | 7 |
| Form Factor | Extended ATX |
| Width | 13" |
| Depth | 12" |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2500 |
| Onboard Video | On-board Video Chipset |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Total Number of USB Ports | 6 |
| Number of USB 3.1 Ports | 6 |
| Package Contents |
|
| Compatibility | Supermicro Chassis: 3U
4U/Tower
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Product Type | Workstation Motherboard |
| Manufacturer Part Number | MBD-X11SPA-TF-O |
| Manufacturer Website Address | http://www.Supermicro .com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X11SPA-TF |
| Product Name | X11SPA-TF Workstation Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of M.2 Interfaces | 1 |
| Number of Onboard USB 3.1 Ports | 4 |
| Processor Supported | Xeon |
| Total Processor Supported | 1 |
| Processor Socket | Socket P LGA-3647 |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| RAID Levels | 5 |
| 10 | |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Maximum Memory | 3 TB |
| 3 TB | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 12 |
| Memory Form Factor | DIMM |
| LRDIMM | |
| RDIMM | |
| Memory Speed Supported | 2666 MHz |
| 2933 MHz | |
| 2933 MHz | |
| 2666 MHz |
