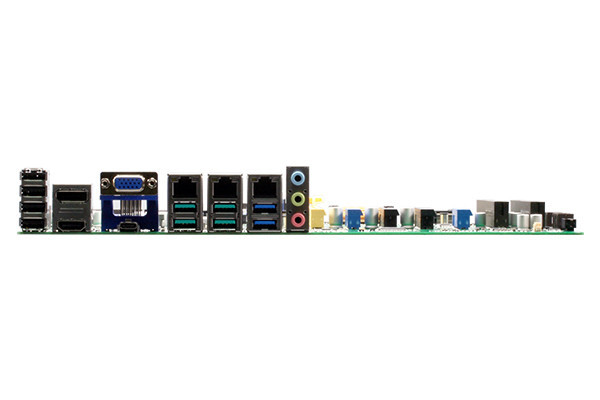

AAEON ATX-Q370A ATX Industrial Motherboard with 8th/9th Generation Intel Core Processor, DDR4 DRAM, Supports iAMT 12.0, and Intel CNVi WLAN Card, Option: LAN x 3, Type-C Alternate (Display + Data USB 3.2 Gen 1) Function
Overview
The ATX-Q370A from AAEON combines our expertise in industrial motherboards with the 8th and 9th Generation Intel Core processors (formerly Coffee Lake, Coffee Lake Refresh). Supporting CPUs up to 95W TDP, the ATX-Q370A combines high-end performance and expandability with PCIe 3.0, M.2 2280 and M.2 2230 with CNVi support. ATX-Q370A is designed to power applications including Smart Security and Access Control, and can connect to a wide number of devices with ten USB ports and up to three Gigabit LAN ports.
Features
- 8th/9th Generation Intel Core LGA1151 Processor
- Supports Power 95W max.
- DDR4 2666/2400/2133 MHz, max. 128GB
- Three Independent Displays: HDMI x 1, VGA x 1, DP x 1, USB Type-C x 1 (optional)
- Dual Intel Gigabit Ethernet, i210AT x 1 (option: i210AT x 2), i219LM x 1
- USB 3.2 Gen 2 ports x 4, USB 3.2 Gen 1 ports x 2, USB 2.0 ports x 6
- M.2 E-key (PCIex1/USB2.0/CNVi) x 1, M.2 M-key (PCIex4/SATA3) x 1
- TPM Onboard
