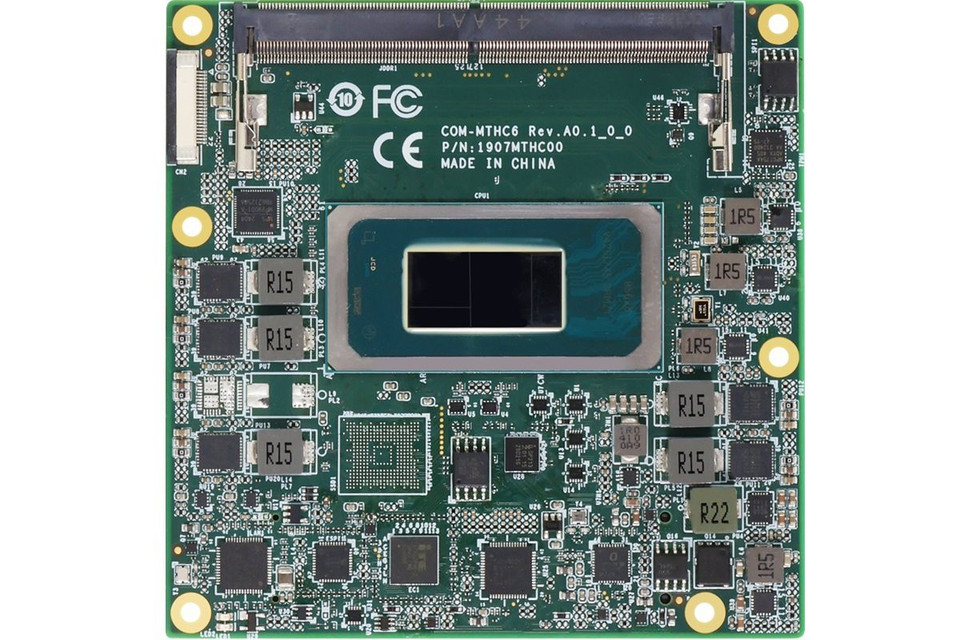

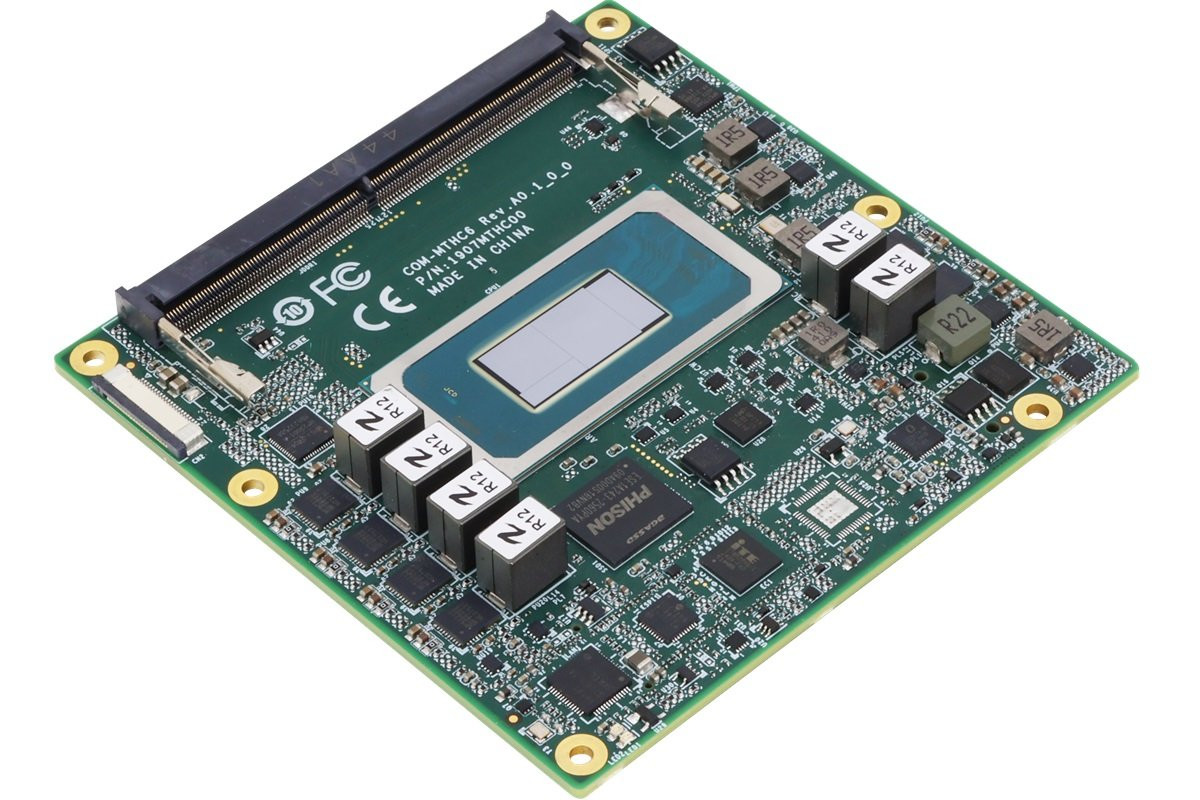

Aaeon COM Express Type 6 Compact Size with Intel Core Ultra Series Processors
Powered by Intel Core Ultra Processors
Powered by Intel Core Ultra Processors The COM-MTHC6 supports up to 45W CPUs from the Intel Core Ultra Processor family (formerly Meteor Lake H Series), utilizing the integrated architecture to combine CPU, GPU, and NPU into one high-performance, low-power platform.
AI Software Development Kit
AAEON’s AI Software Development Kit makes the route to deployment easier, allowing for one-click installation of the Intel Distribution of OpenVINO Toolkit, allowing users to easily verify NPU functionality for faster model development, refinement, and deployment.
Support for Eight PCIe Devices
With one eight-lane and two four-lane PEG 4.0 slots alongside four PCIe 4.0 and an additional standard PCIe slot, the COM-MTHC6 is capable of accommodating multiple high-performance GPUs, capture cards and storage modules, with the additional option of NVMe SSD preinstallation.
Wide Voltage, Industrial-Grade Reliability
Built to bring high-level edge AI functionality to across harsh deployment scenarios like factories and roadside units, the COM-MTHC6 keeps mission-critical data safe with a 9V to 16V power input range, even when relying on fluctuating power sources.
Key Features
- DDR5 5600MHz Dual-Channel SODIMM x 2, up to 96GB
- VGA Switch DDI x 1, LVDS colay eDP x 1, DDI x 2
- USB 2.0 x 8, USB 3.2 Gen 2 x 4
- PCIe [x1] x 4, PCIe [x4] x 1, PEG [x8] + [x4] + [x4]
- Intel Ethernet Controller I226, 2.5GbE x 1
- 9V ~ 16V Power Input
- COM Express Type 6, 3.75” x 3.75” (95mm x 95mm)
