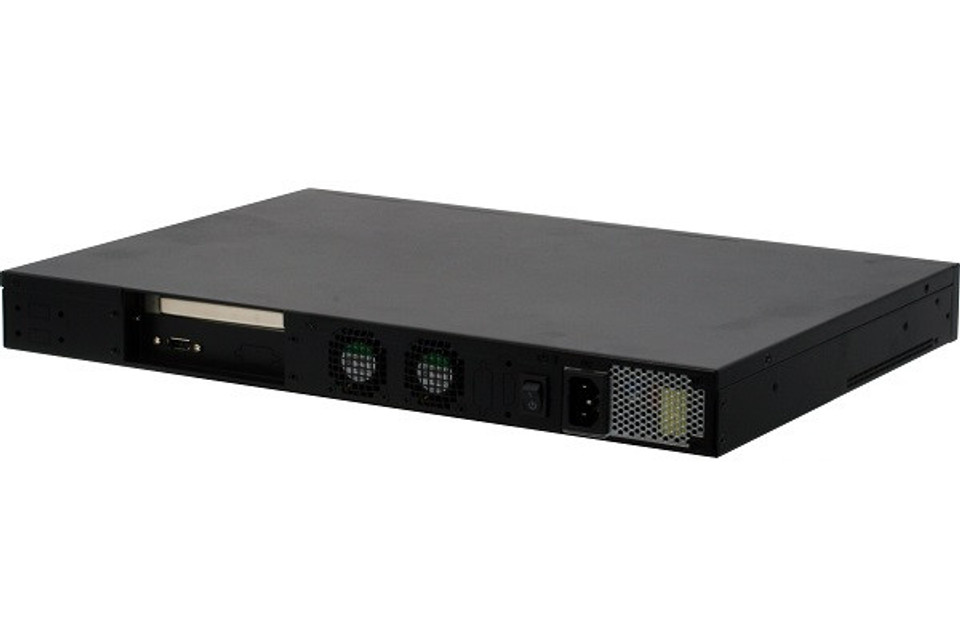

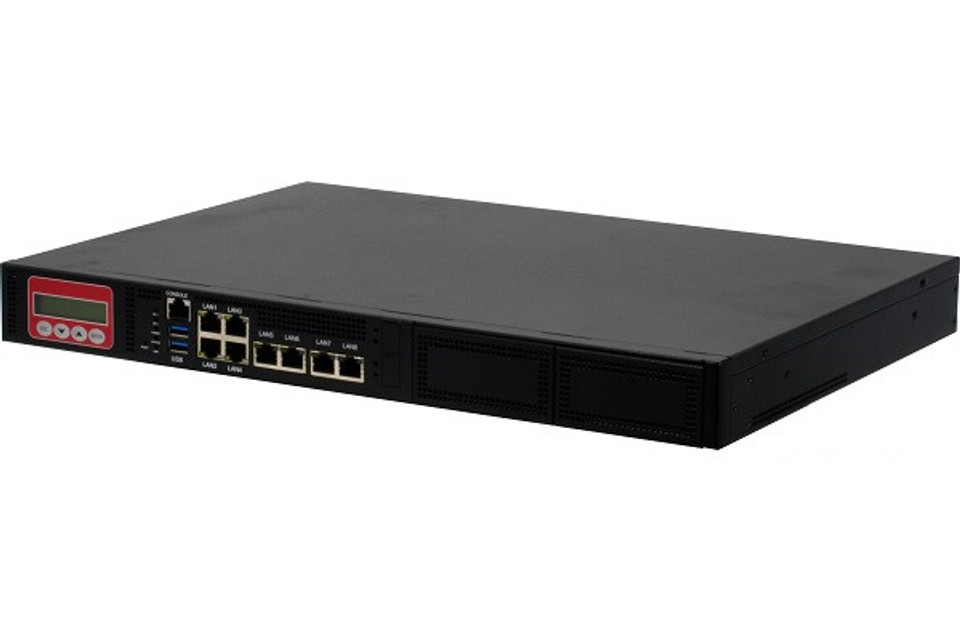

AAEON FWS-7840 1U Rackmount Network Appliance with 10th Generation Intel Core/ Xeon processor
Overview
The FWS-7840 rackmount network appliance is built to power higher-bandwidth networks that require greater flexibility. Featuring the Intel Xeon W processors (formerly Comet Lake), the FWS-7840 leverages higher processor core counts and access to innovative technologies such as Intel Deep Learning Boost to power network applications such as SD-WAN, Next Generation Firewall (NGFW), Unified Thread Management (UTM), and even AI Edge Server.
Connectivity is provided standard with eight RJ-45 ports powered by the Intel i350AM4 chipset, which provides on-board access to Intel Virtualization Technology, including on-chip QoS, Traffic Management, and SR-IOV. The system can be expanded to meet the specific needs of each network deployment, with two Network Interface Module slots which support the entire range of AAEON’s NIM line-up. Additionally, the system can be expanded to include two SFP+ 10Gbps ports, allowing even greater bandwidth.
The FWS-7840 is built to provide reliable operation with features such as network bypass support and redundant power supply. Additionally, the system also features a Mini PCIe expansion bay to support wireless network deployments. Along with AAEON’s industry leading service and support, network managers and service providers can get the exact solution they need to power their network structures.
Features
- 1U Rackmount Network Appliance
- Intel 10th Generation Intel Core/ Xeon processor
- Intel Communications Chipset W480E
- 2 x DDR4 2666MHz U-DIMM ECC DIMM slots
- 8 x 1Gb RJ45 Port or 6 x 1Gb RJ45 + 2 x 1Gb SFP , with 2 x i350AM4 LAN Chips
- 2 x 10Gb SFP+ with XL710 AM2 LAN Chip (Option)

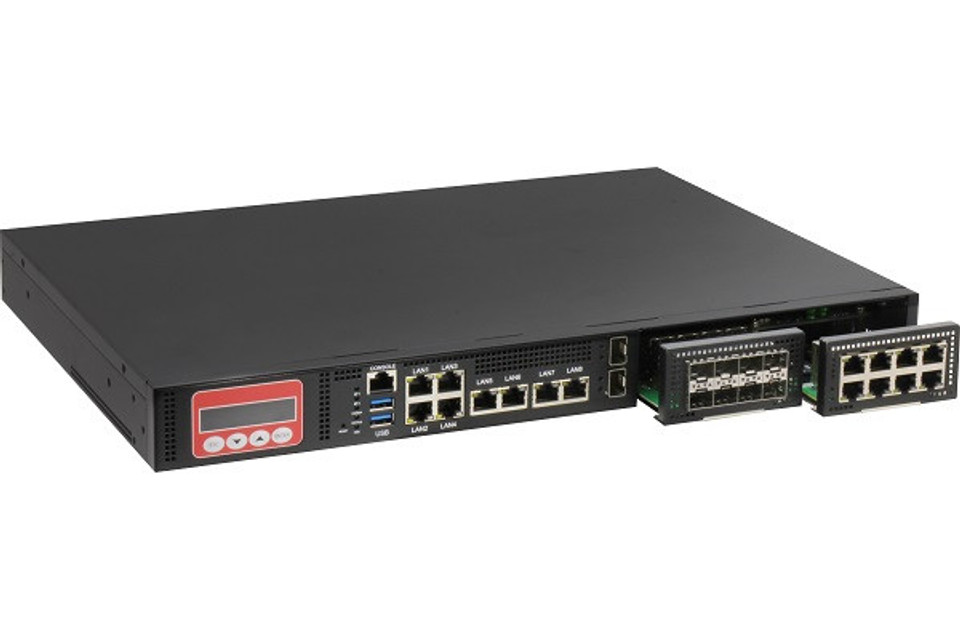

- 2 x NIM Slots
- 1 x RJ45 console Port (Option Micro USB console)
- 1 x Mini PCIe (Option mSATA)
- 2 Pairs Bypass default
