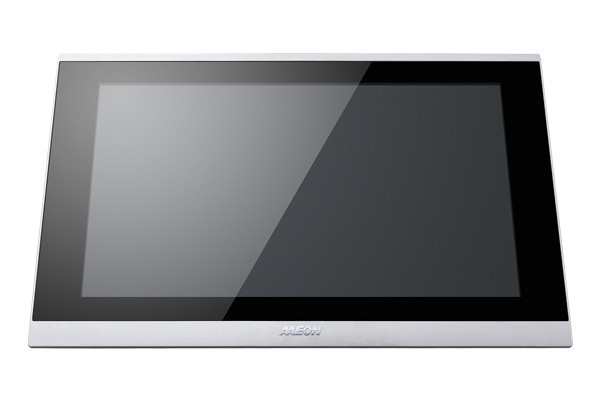

AAEON OMNI-2155-CML 15.6” HMI Panel PC with 10th Generation Intel® Core / Pentium / Celeron Processor
Overview
The OMNI-2155-CML powered by 10th Generation Intel Core processors (formerly Comet Lake), is the first in the OMNI family of industrial touch panel PC solutions to offer a socket-type processor, allowing for easier maintenance and scalability to meet the performance needs of individual applications. The system features an M.2 2280 (M-Key) slot driven by PCIe 3.0 [x4] with support for fast NVMe SSDs. It also delivers M.2 2230 (E-Key) to support a range of functions including Wi-Fi or Bluetooth connectivity. The OMNI-2155-CML is also built with a full-sized Mini Card slot which supports PCIe and mSATA, set via the BIOS.
The OMNI-2155-CML is built from the ground up for industrial applications. The 15.6” LCD touch screen utilizes the P-CAP system and can be configured to be operable with gloves. It also features a wide voltage input (10 to 35V) and provides consistent operation without loss of performance in temperatures from 0°C up to 45°C.
The OMNI-2155-CML offers a broader range of I/O features, including four serial COM ports, four USB3.2 Gen 2 ports, and two Gigabit Ethernet ports, providing support for Intel vPro and Intel AMT, enabling remote monitoring and control. The OMNI-2155-CML also offers storage flexibility with NVMe support, mSATA, and 2.5” SATA III (6.0 Gbps) storage devices. The OMNI-2155-CML can easily connect with cellular networks thanks to onboard SIM card slot, allowing for even more flexibility to communicate with wide area networks.
Features
- 15.6” (1366 x 768) TFT LCD Display
- Extreme Computing Power & Graphic Display Capability
- DDR4 slot x 2, up to 64GB
- Support High Speed NVMe storage (M.2 2280)
- GbE LAN x 2, RS232/422/485 x 2
- USB 3.2 Gen2 x 4
- Supports Intel AMT
- Wide Range 10-35V DC input
- 0 ~ 45°C Operating Temperature
Data SheetComplete your Aaeon 10TH
