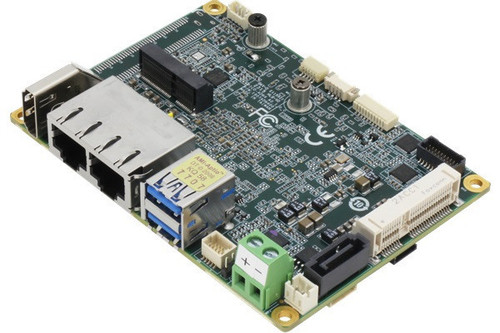

AAEON PICO-ADN4 Intel Atom x7000E Series, N-series, LPDDR5 8GB Memory Core i3-N305 Processor (formerly Alder Lake N)
Overview:
AAEON has introduced the PICO-ADN4, the latest addition to its PICO-ITX board lineup. Designed for Industry 4.0 applications such as industrial automation and assembly line quality control, the PICO-ADN4 is available in standard and wide-temperature range versions, making it suitable for factory use even in challenging environmental conditions. While it supports 12V DC input, an optional DC-DC converter can extend its compatibility to power sources ranging from 9V to 36V, ideal for locations with unstable power supplies.
Notably, the PICO-ADN4 is equipped to host CPUs from the latest Intel Core i3 Processor N-series, Intel Atom x7000E Series, and the Intel Processor N-series platform (formerly known as Alder Lake-N). This versatility enables it to handle a wide range of processing needs.
In addition to these features, the board has been upgraded to use LPDDR5 system memory for faster data transmission speeds and features soldered system memory, which is advantageous for applications prone to vibration.

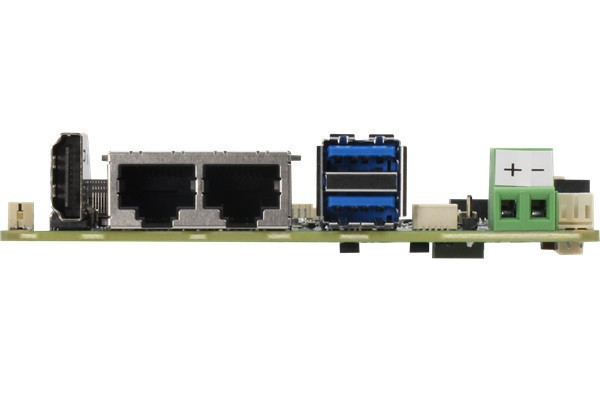

The PICO-ADN4 also includes an advanced Ethernet interface with support for 2.5GbE, enhancing networking capabilities. Physical interfaces on the board include HDMI and LVDS for display output, along with various connectors for communication and control tasks. Expansion options encompass Wi-Fi support, additional storage via mSATA, and BIOS-based expansion features.
Despite its low-power processor lineup, the PICO-ADN4 delivers enhanced graphics capabilities, with Intel UHD Graphics for 12th Gen Intel Processors providing higher graphics render clock frequencies, as well as the CPUs themselves capable of higher single-core frequencies compared to the previous generation.
Features:
- Onboard LPDDR5 4800, Single Channel (Max.16GB)
- HDMI1.4 x 1, eDP1.4/LVDS x 1
- Intel i226v 2.5GbE, RJ-45 x 1
- REALTEK.RTL8111H-CG 1GbE, RJ-45 x 1
- Full-Size mSATA/mPCIe x 1, M.2 2230 E-key x1
- USB 3.2 Gen2 x 2port, USB2.0 x 2, RS-232/422/485 x 2
- TPM2.0, SATA 6.0Gbps x 1, GPIO 4-bit, SMBUS/I2C x 1
- BIO support (Optional), Audio: Line out (Optional)
- DC 9~36V input (Optional, support by power adapter card)
