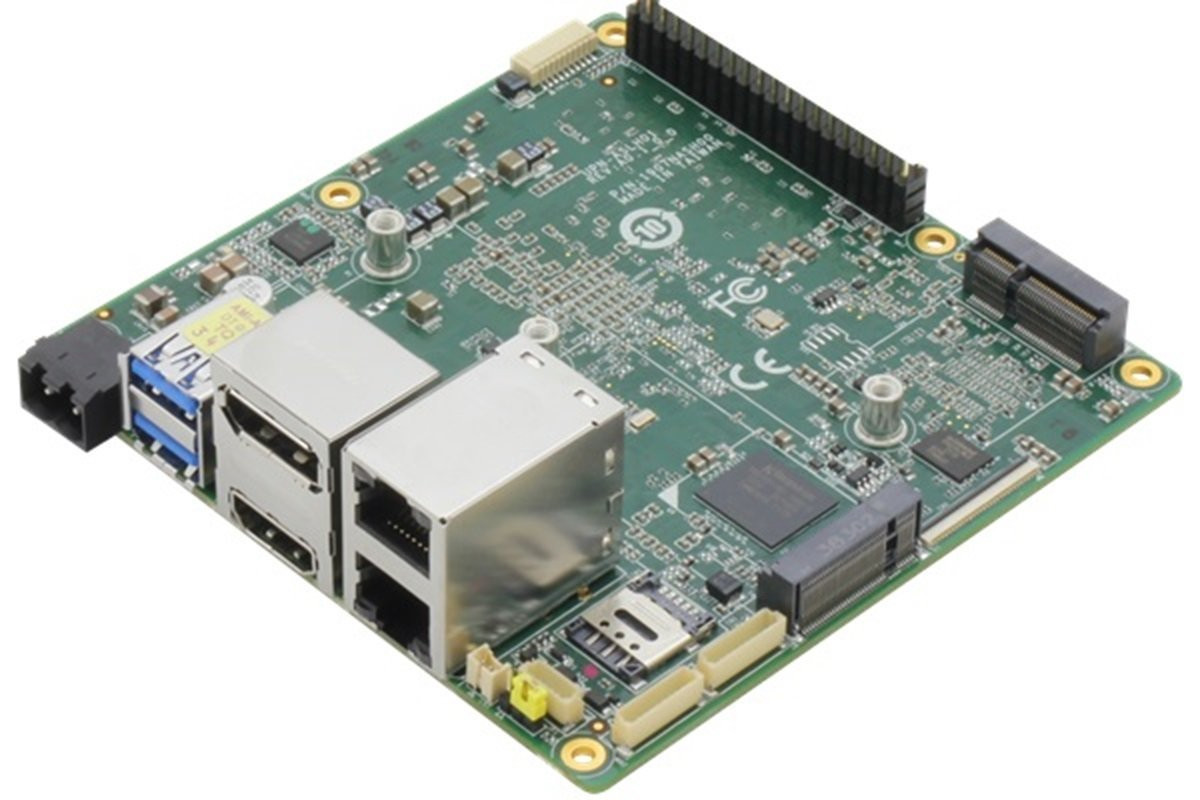

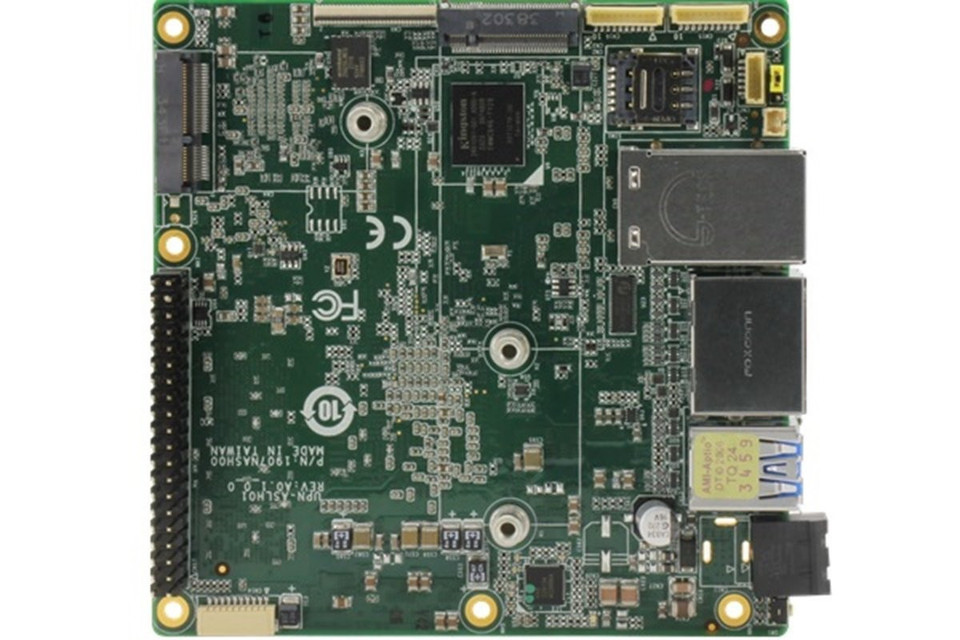

Aaeon UP Squared Pro 710H | Intel Core i3-N305 with onboard Hailo-8 edge AI Processor - UPN-ASLHI3-A10-16128

• Intel Atom x7000RE Series, Intel Core i3-N305

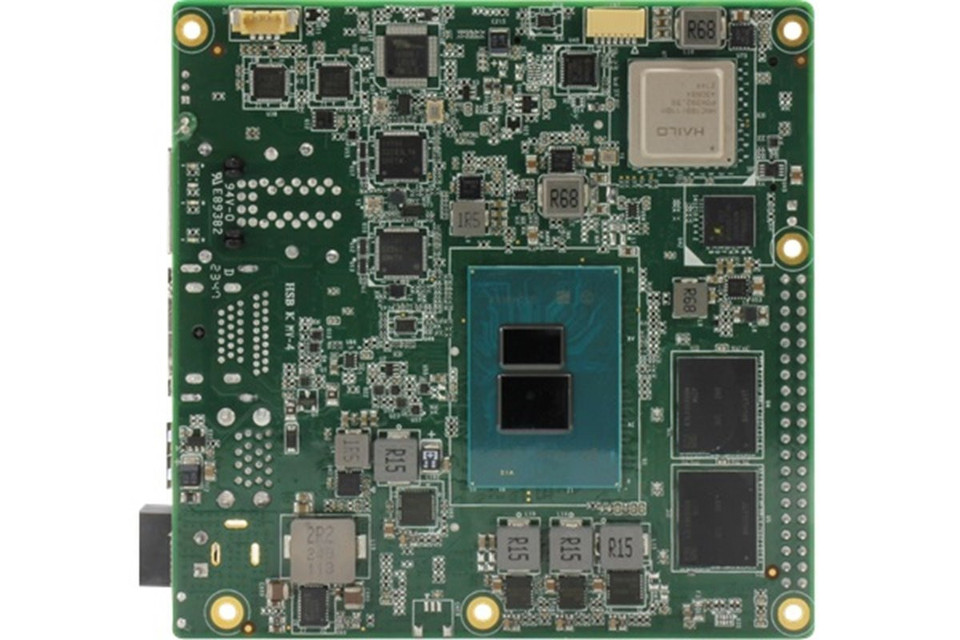

• Onboard Hailo-8 edge AI processor
• Onboard LPDDR5 Memory, 16GB
• Onboard eMMC Storage, 128GB
• 2.5GbE x 2 (Intel Ethernet Controller I226-IT)
• USB 3.2 (Type-A) x 2
• 40-pin GPIO x 1
• DP 1.4 x 1/HDMI 2.0b x 1
• RS-232/422/485 x 2 via pin header
• M.2 2230 E-Key/M.2 2280 M-Key (Optional: M.2 3052 B-Key x 1)
• Onboard TPM 2.0
• 12V ~ 36V DC-in with Phoenix Connector

Streamline Machine Vision with UP Squared Pro 710H AI Solution

The UP Squared Pro 710H combines power-efficient operation with high-quality visual data acquisition and integrated AI inferencing capabilities, providing a streamlined pathway for deploying machine vision solutions. With support for MIPI cameras, Intel Processor N-series CPUs, and various software development frameworks for building and running inferencing models at the edge, the UP Squared Pro 710H is the ultimate single-board choice for bringing building access monitoring, occupancy analysis, and efficient smart city solutions to market.

UP x Hailo x Intel AI Solution

The UP Squared Pro 710H offers an integrated hardware platform that incorporates embedded Intel and Hailo technology, providing an easier route from concept to deployment. By combining Intel Processor N-series CPUs with AAEON’s design expertise, integration with various peripheral devices becomes straightforward. Additionally, dedicated pin control drivers and access to a range of software frameworks with which to develop edge AI models enhance the overall development process.

For a more comprehensive overview of the benefits of the synergy between AAEON, Intel, and Hailo products, revisit our recent UP x Hailo Edge AI webinar on accelerating and scaling AI projects using Intel-powered UP developer boards equipped with Hailo AI acceleration modules.

High-Bandwidth, Low-Latency MIPI Camera Support

Supporting MIPI cameras through its 61-pin FPC connector, the UP Squared Pro 710H enables the development of access management and occupancy analysis applications that leverage visual data with higher frame rates and resolutions while benefiting from lower latency. With up to 26 TOPS of AI performance via its integrated Hailo-8™ Edge AI processor, the UP Squared Pro 710H’s MIPI CSI interface can deliver superior video quality for more accurate edge AI inferencing.

Compact, Versatile Deployment

With a small 4" x 4" form factor and a wide power input range of 12V to 36V, the UP Squared Pro 710H can be discreetly deployed in a variety of setups. Additionally, its fanless design minimizes maintenance needs and enhances application longevity. The UP Squared Pro 710H also meets the demand for energy efficiency, as its E-core-based CPU architecture and low power consumption make it a cost-effective option for applications that require continuous operation, such as security solutions.

UPN-ASLHI3-A10-16128
