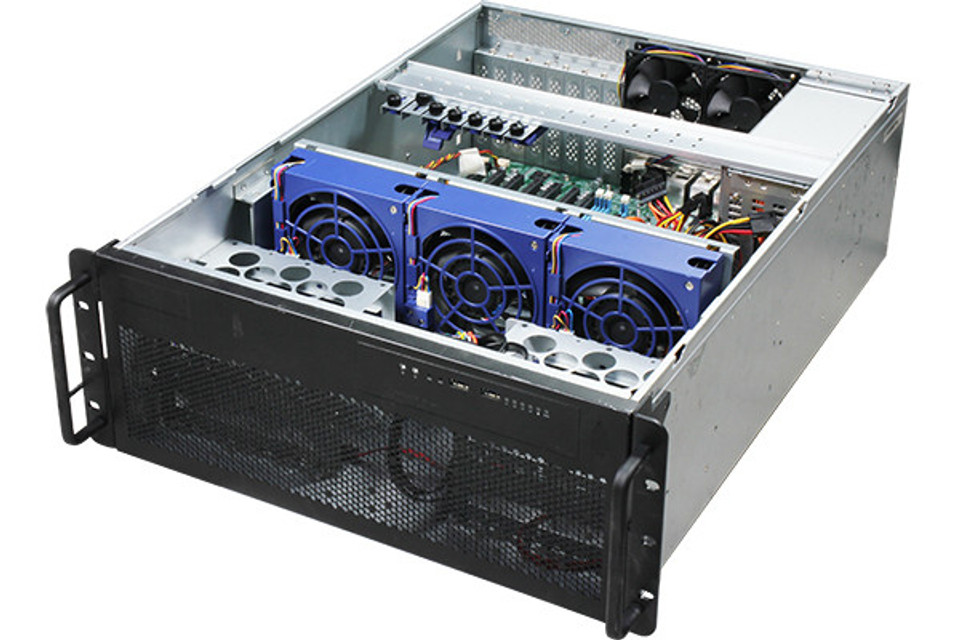

AAEON ZEUS-WHI0 4U Rackmount Whitely Platform Server System, Supports a 3rd Generation Intel Xeon Scalable Ice Lake-SP CPU
Overview
AAEON’s ZEUS-WHI0 is an exceptionally powerful, dynamic 4U Rackmount Server System for large industrial network structures such as GPU servers, industrial servers, and telecommunications frameworks. Armed with a 3rd Generation Intel Xeon Scalable Processor (formerly Ice Lake-SP), the ZEUS-WHI0 offers reliable operation alongside enhanced network security features. The ZEUS-WHI0’s innovative modular hardware design makes it easy to meet diverse project requirements, with flexible and compatible PSU and cooling options to optimize efficiency based on the workload demands of an application.
Multiple Graphic Card Support
Containing seven PCIe slots with up to Gen 4 speed, the ZEUS-WHI0 is capable of supporting up to four GPU cardS (per project basis) to handle multiple concurrent AI processes and enhance graphics realization, meaning no task is too heavy to handle. Further to this, the ZEUS-WHI0 also holds expanded storage options, with eight 2.5” or 3.5” HDD supported via two 4-bay inputs.
Flexible & Compatible PSU Options
Allowing users to configure their application according to the workload required, the ZEUS-WHI0 is modular, being compatible with three PSU options. The Mini-Redundant 800W PSU offers reliability and continued operation, while the CRPS 1600W PSU enables users to run power-intensive applications requiring multiple graphics cards. Meanwhile, the project-based PS2 ATX PSU is ideal for running a more cost-effective industrial server.
Modular System Cooling
The ZEUS-WHI0’s cooling solutions correspond to the modularity of its PSU options, with the option of three fan systems to handle the heat dissipation needs of different workloads. The system contains three middle fans by default, while two rear fans can be added as an additional feature. For applications incorporating multiple PCIe expansion options, such as graphics, NIC, and RAID cards, the ZEUS-WHI0 can include an outside fan module, giving users a more robust thermal mechanism.
Features
- 4U Rackmount Server System
- Single 3rd Generation Intel Xeon Scalable Ice Lake-SP CPU
- Intel Communications Chipset C621A
- DDR4 2666 MHz R-DIMM Slot x 6
- IPMI Support, optional
- 3.5” SATA HDD or 2.5” SATA HDD x 8, M.2 2280 M key socket x 1
- Rear side PCIe 3.0 [x16] x 3, PCIe 3.0 [x4] use PCIe [x8] slot x 3, PCIe 3.0 [x8] x 1
- 800W Mini Redundant PSU or 1600W CRPS PSU
