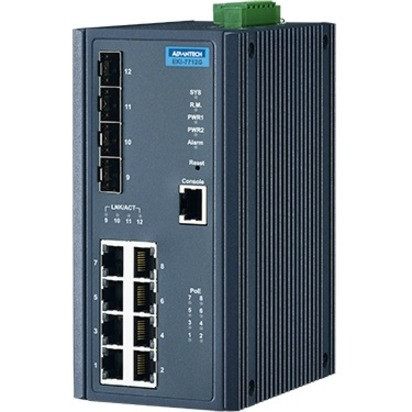

Advantech 8GE PoE+4G SFP Managed Ethernet Switch - 8 Ports - Manageable - 10/100/1000Base-TX - 2 Layer Supported - Modular - 4 SFP Slots - Power Supply - Twisted Pair, Optical Fiber - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty POE+ 4 SFP PORTS NEMA TS2 WIDE TEMP
EKI-7712G-4FP/4FPI supports 8 Gigabit IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7712G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7712G-4FPI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.Features
- 8 x IEEE 802.3 af/at PoE Gigabit ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
- NEMA TS2 for Traffic Control
- EN50121-4 approval for Railway trackside deployment
- -40 ~ 75°C wide-range operating temperature (EKI-7712G-4FPI)
- Dual 48 VDC power input and 1 relay output
Technical Specs
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 2 |
Power Description
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
Miscellaneous
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
I/O Expansions
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of Total Expansion Slots | 4 |
| Number of SFP Slots | 4 |
| Shared SFP Slot | No |
Physical Characteristics
| Weight (Approximate) | 2.43 lb |
| Form Factor | Wall Mountable |
| DIN Rail Mountable | |
| Height | 2.9" |
| Width | 6" |
| Depth | 4.1" |
Interfaces/Ports
| Modular | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| 4 x Gigabit Ethernet Expansion Slot |
Media & Performance
| Network Technology | 10/100/1000Base-TX |
| 1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | EKI-7712G-4FPI |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | EKI-7712G-4FPI |
| Product Name | 8GE PoE+4G SFP Managed Ethernet Switch |
| Product Series | EKI-7712G |
| Brand Name | Advantech |
