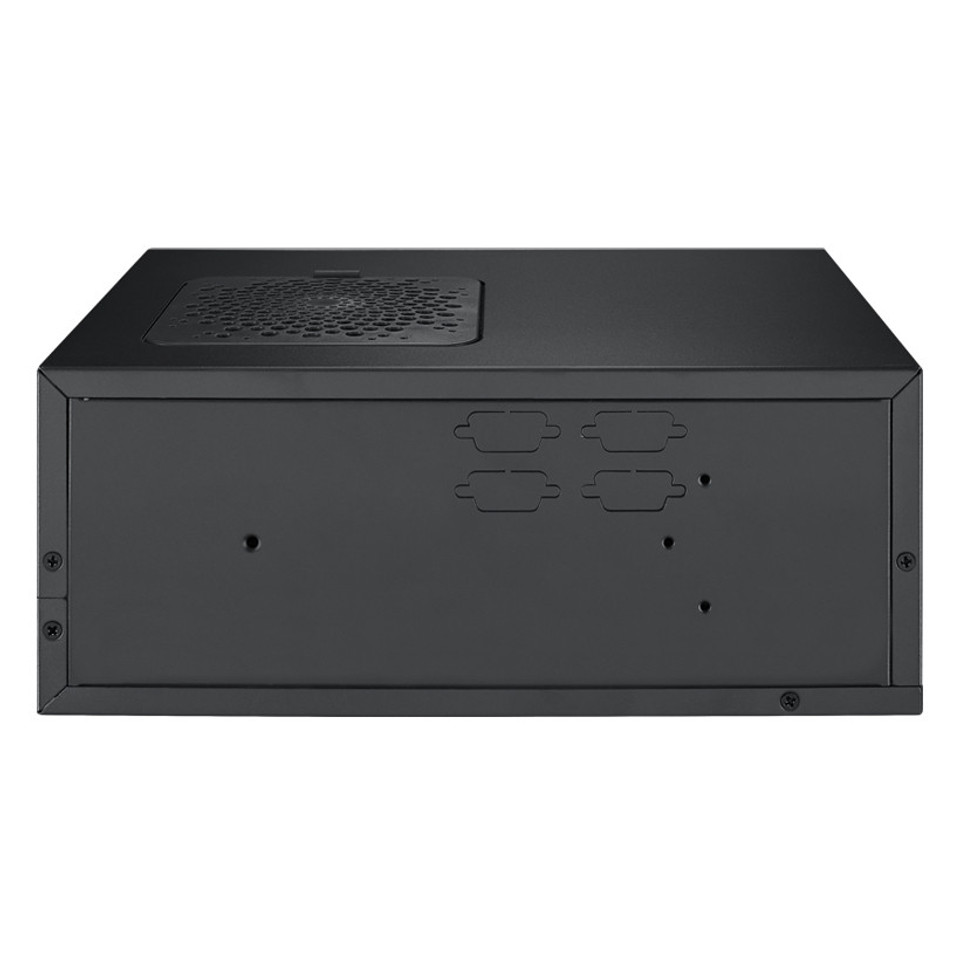

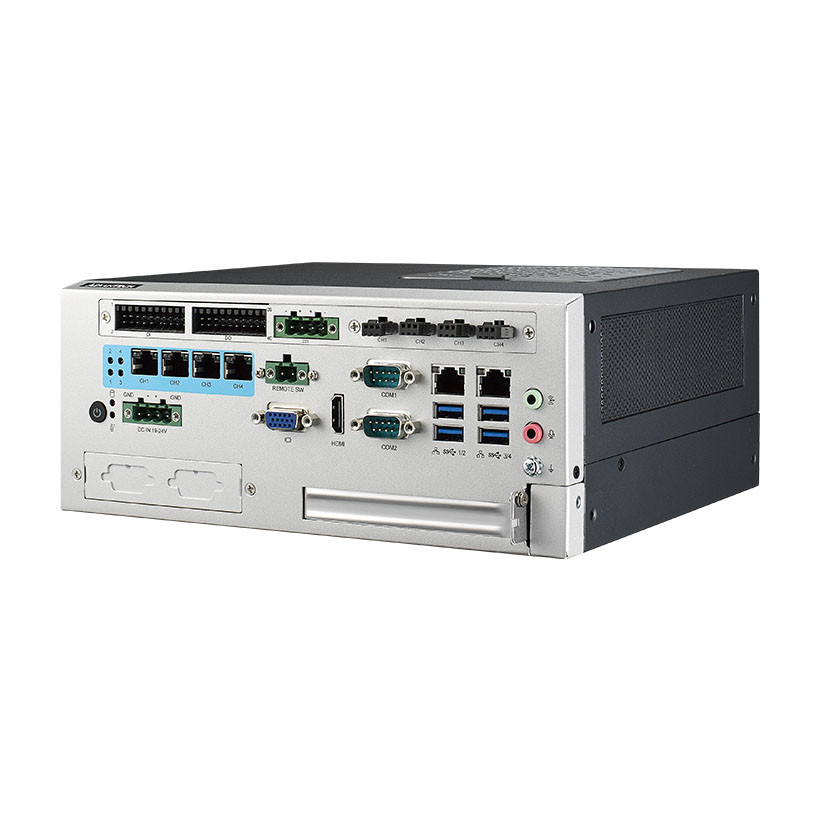

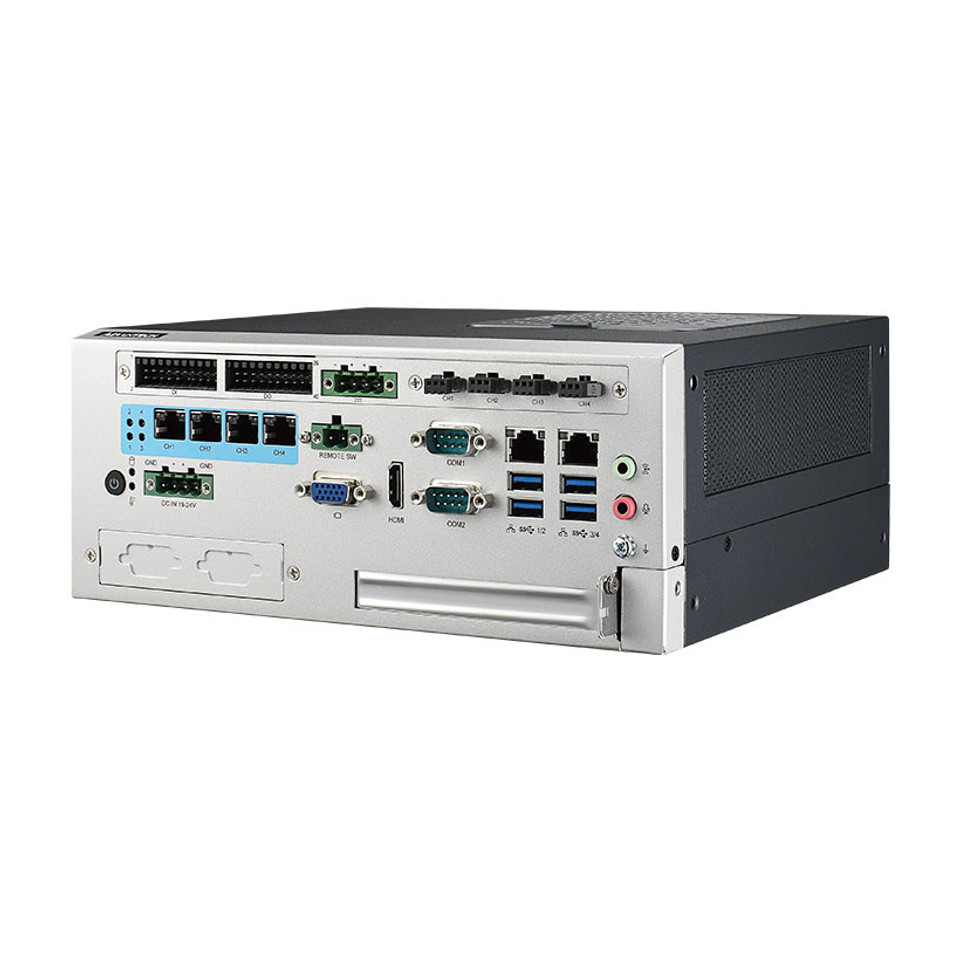

Advantech Compact Vision System AIIS-3411P-00A1
Empower your industrial automation and machine vision applications with the Advantech AIIS-3411P-00A1 Compact Vision System. This powerful and versatile system is engineered to deliver exceptional performance and reliability, even in challenging environments.
Unleash the Power of 10th Gen Intel Core i CPU
Experience blazing-fast processing speeds and seamless multitasking with the integrated 10th Gen Intel Core i CPU. This high-performance processor ensures smooth operation of demanding vision applications, enabling real-time analysis and decision-making.
Flexible Vision System Configuration for Diverse Needs
The AIIS-3411P-00A1 offers exceptional flexibility with its diverse interface options. Connect up to four cameras via GigE PoE or USB 3.0, accommodating a wide range of vision sensors for comprehensive image acquisition.
Effortless Lighting Control and Isolated DIO
Achieve optimal image quality and simplify system integration with the built-in 4-channel lighting control and isolated DIO. Precisely control lighting conditions and seamlessly connect to external devices for streamlined automation.
Features:
- Intel 10th generation Core i CPU (LGA1200)
- AIIS-3411P: 4-CH GbE PoE (Power over Ethernet)
- ．Powered device auto detection and classification
- ．IEEE 802.3af compliant, supports IEEE 1588
- ．Compatible with GigE cameras
- AIIS-3411U: 4-CH USB 3.0 with dedicated controller
- ．Maximize the USB3.0 bandwidth for multi-cameras
- ．Compatible with USB 3.0 cameras
- Optional AIIS-1882 module for lighting control and isolated DIO
- ．Supports 4-ch lighting control output powered by internal 12VDC/1A per channel with trigger input or optional external power input 12~24VDC, 2A max.
- ．Programmable delay time, PWM high/low time and lighting output duration
- ．12-ch isolated digital input and 16-ch isolated digital output and 2,500 VDC isolation protection for all I/O signals
