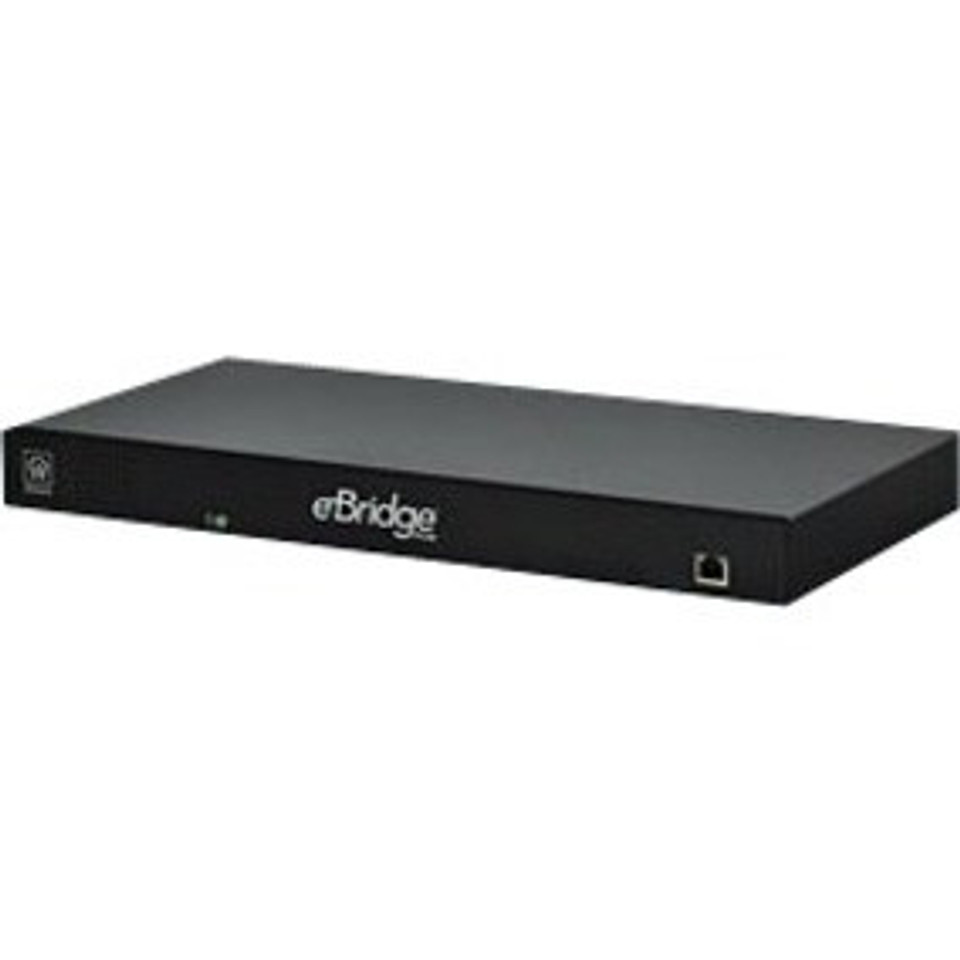

Altronix Eight (8) Port Managed EoC Receiver with Integral PoE+ Switch (25Mbps) - for Camera
The eBridge8E is an all-in-one head-end solution for upgrading coax to IP that combines a PoE+ switch and EoC Receiver into a single integrated unit for upgrading existing coax infrastructure and deploying the latest IP devices. This 8-Port Managed EoC Receiver with Integral PoE+ switch provides 30W full power per port (240W max). Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control and report power and diagnostics from anywhere.
Applications:
Applications:
- Eliminates the costs and labor associated with installing new network cabling.
- Retrofit digital IP cameras in an analog CCTV installation.
- Works with Megapixel, HD720, HD1080 & VGA (SD) cameras (see note, pg. 2).
- Extend Network link distance in an industrial environment.
- Upgrade deployed CCTV Coax to a digital network for Retail, Casinos, Airports, Schools, Hospitals, etc.
Features
- 8 ports with 30W full power per port.
- 240W total power
- IEEE 802.3at (30W), IEEE 802.3af (15.4W)
- 1Gb uplink (10/100/1000)
- Throughput is rated to pass 25Mbps at distances up to 500m
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- Eliminates the costs and labor associated with installing new network cabling.
- Retrofit digital IP cameras in an analog CCTV installation
- Works with Megapixel, HD720, HD1080 & VGA (SD) cameras
