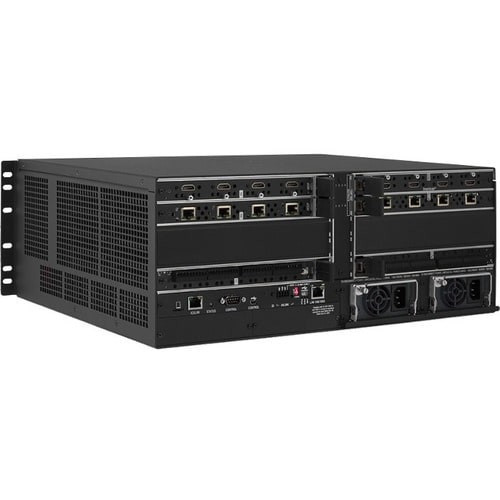

AMX Enova DGX 800 Digital Media Enclosure - FG1061-08-FX
The Enova DGX 800 adds several new capabilities such as automatic setup of DXLink endpoints, single IP addressing for multiple endpoints, and a new web interface to greatly simplify installation and configuration. The new advanced Audio Switching Boards add audio breakaway capabilities and parametric EQ on each DGX output.
The Enova DGX 800 is far beyond a modular media switcher with built-in controller - it functions as the centerpiece of a complete integrated solution that manages and distributes analog and digital audio and video including HDMI/HDCP, control and Ethernet. Easily integrate HDCP into system designs and enjoy hassle-free plug-and-play operation. No tools, no delays and no key constraints - it just works with AMX's exclusive InstaGate Pro® Technology. Built for today's and tomorrow's needs, a comprehensive set of Enova DGX boards can be used in conjunction with DXLink and DGX Transmitters and Receivers to provide an end-to-end distribution system over twisted pair cable or fiber. An integrated NetLinx NX Controller and embedded Ethernet switch enables management of the entire solution including source equipment and display devices located throughout the environment - all from a single point of control.
In addition to eliminating HDCP delays, InstaGate Pro allows traditionally key limited sources to be switched freely to all connected HDCP compliant displays - eliminating HDCP key limitations that plague large applications. Built-in SmartScale® Technology on every output provides video that is perfectly scaled for each connected display, eliminating the integration challenges that can occur when sources and displays have different supported resolutions - making it easy to specify, easy to install and easy to use. With the powerful combination of analog-to-digital signal conversion, video scaling and high speed digital switching the system delivers perfect video every time - regardless of signal type.
As part of a complete distribution system, easily send analog or digital audio and video including HDMI with HDCP signals, plus control 10 Km over single mode fiber or 300 meters over multimode fiber; send all this plus power up to 100 meters over standard twisted pair cable to and from the Enova DGX using the DXLink Twisted Pair and Fiber Transmitters/Receivers.
- HDMI/HDCP Switching - End-to-end distribution of HDMI/HDCP without interruption or key constraints using InstaGate Pro® Technology
- 4K and Ultra High Definition (UHD) Content Ready - Designed to support future resolutions for years to come
- HDCP Compliance Over Fiber - Compatible DXLink Fiber boards transmit uncompressed video, including HDCP protected content, up to 10 Km at 10 Gbps (single mode fiber options transmit 10 Km, multimode 300 m)
- Fiber Your Way - DXLink Fiber boards are available in single mode or multimode; simplex or duplex
- AV and Control over Twisted Pair, Fiber or Both - Send audio, video, bi-directional control and Ethernet over twisted pair or fiber cable, or integrate both into the same system
- Embedded NetLinx NX Integrated Control Processor - Allows any connected device to be managed, monitored or controlled
- Integrated Ethernet Switch - Pass Ethernet through the attached DXLink Twisted Pair or Fiber Transmitters and Receivers
- Analog to Digital Video Conversion with Scaled Outputs - Converts any source signal to digital and uses SmartScale Technology to automatically output video that is perfectly scaled for each connected display
- Onboard Web Configuration for all Aspects of the DGX System - Greatly simplifies the setup and configuration of Enova DGX systems including DXLink endpoints drastically reducing installation time
- Automatic Setup of DXLink Endpoints - Simplified installation by auto-discovering DXLink devices when they are connected to an Enova DGX
