AMX Jetpack 3x1 Switching, Transport, and Control Solution - AMX-VTK-0001

AMX Jetpack is an incredibly affordable switching, transport, and control solution for K12 classrooms and small-to-medium meeting spaces that provides simple to operate room controls, multiple video inputs, and enables voice lift for clear communication with everyone in the space. The JPK-1300 combines 4K60 4:2:0 HDMI and USB-C video switching and distance transport, room control, wallplate accessibility, and audio amplification in a kit that requires zero programming and provides the security and reliability that AMX is well known to provide.

The kit is fully loaded to support a wide range of classroom and meeting space applications and can be controlled through panel buttons, RS-232, Telnet, SSH, a Web GUI, and the Jetpack Manager application.

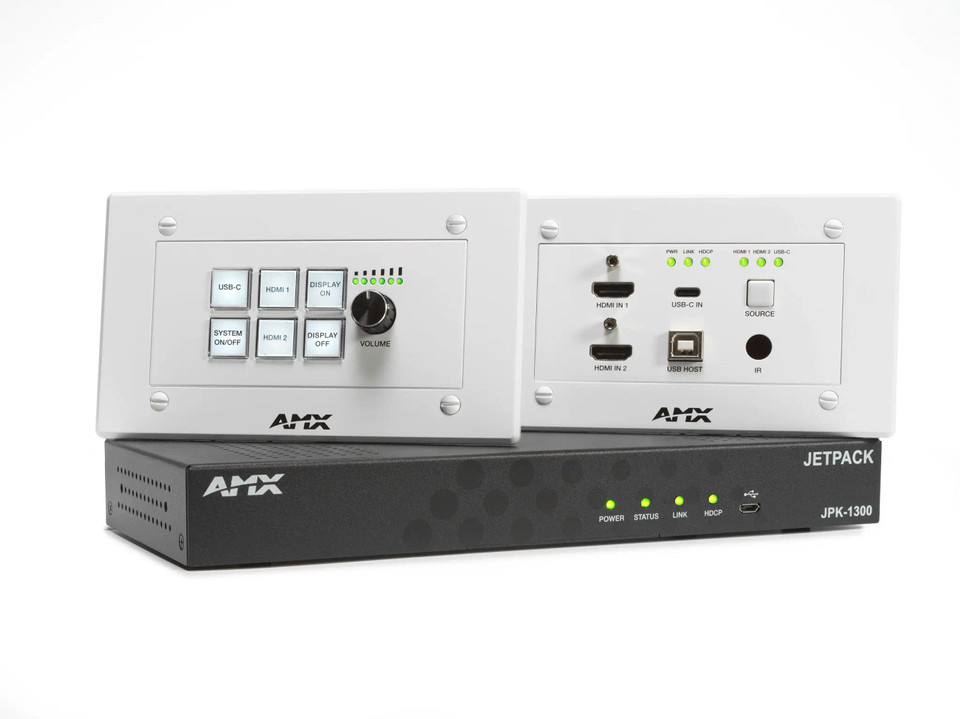

The kit includes:

6-Button Keypad with volume knob
3-Input Switching Wallplate Transmitter (2 HDMI, 1 USB-C) includes auto and manual switching modes, and support for transmission of uncompressed video and audio up to 40m/131ft at 4K or 70m/230ft at 1080P over shielded Cat 6/6A/7 cable

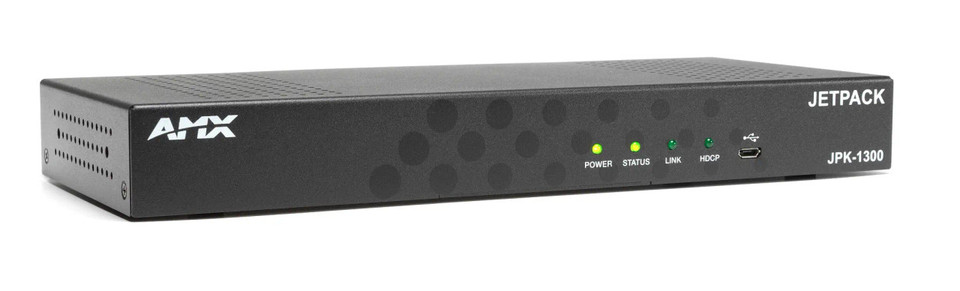

Multi-Function Receiver with Built-In 2x25W 4/8-ohm Amplifier, USB signal pass-through, RS232 control, Relay, IR, mic/line input, line out, remote mute, audio de-embedding, USB-AUDIO, ARC function, and CEC control (Embedded HDBaseT™ technology allows for full usage of HDMI and controls over Cat 6/6A/7 cable.)
Web Configuration for simplified installation
Jetpack Management PC tool included for campus wide room and device management

The kit is available in two models – JPK-1300-UA (US/AU version) and JPK-1300-EK (EU/UK version). It is the ideal solution for K12 and other education applications as well as enterprise and hospitality venues needing affordable, multi-functional A/V support for classrooms and small-to-medium meeting spaces that could benefit from a bundled product offering 4K60 video transmission and switching, room and device control, audio amplification, simplified web configuration and campus management.

Common Applications

AMX Jetpack is ideal for K12 and other education applications as well as enterprise and hospitality venues needing affordable, multi-functional A/V support for classrooms and small-to-medium meeting spaces that could benefit from a bundled product offering 4K60 video transmission and switching, room and device control, audio amplification for voice lift, simplified web configuration and campus management.

Features

4K60, HDMI 2.0, and HDCP 2.2 Support – Supports video resolution up to 4K@50/60Hz 4:2:0, 10.2Gbps video bandwidth
USB-C and HDMI Video Inputs – Transmitter includes 2x HDMI and 1x USB-C video inputs
HDBT Distance Transport – HDBT transmits lossless and zero-delay video & audio up to 131ft/40m for 4K or 230ft/70m for 1080P via a Shielded Cat 6/6A/7 cable
USB Pass-Through – Built-in USB-C and USB-B Host 2x1 USB Hub with pass-through to simplify connectivity to smart boards
Audio Amplifier – Built-In 2x25W 4/8-ohm Amplifier
Comprehensive Audio Features– USB2.0 audio on USB-C input, Mic/Line Input, Line Output, HDMI Audio Extraction, ARC support, and Remote Mute
Power Over Cable (PoC) – A single power supply connected to the Receiver powers the entire solution
Included Campus Management Software– Jetpack Management Tool PC Software makes it easy to discover and manage all your AMX Jetpack kits on the same network
Simplified Room Control – Control the display or projector and a screen from built-in control ports on the RX or CEC

Specifications

Video Inputs	JPK-1300 TX (2) HDMI; supports HDMI/HDCP (1) USB-C; supports HDMI/HDCP
Video Outputs	JPK-1300 RX (1) HDMI; supports HDMI/HDCP
Video Resolution Support	Various up to 4096 x 2160@ 60 Hz - Reference Data Sheet for Specific Resolution Support
Audio Inputs	JPK-1300 TX (2) HDMI; Embedded audio on HDMI; supports 2 CH L-PCM de-embedding and pass-through of PCM 2-Channel (1) USB-C; Embedded audio on HDMI; supports 2 CH L-PCM de-embedding and pass-through of PCM 2-Channel; USB 2.0 Audio JPK-1300 RX (1) MIC/LINE; analog audio
Audio Outputs	JPK-1300 RX (1) AMP OUT, 2x25W 4/8 Ohm (1) AUDIO OUT, 2 channel analog line level audio output
USB Pass-Through Bandwidth	Maximum Supported: 220 Mbps

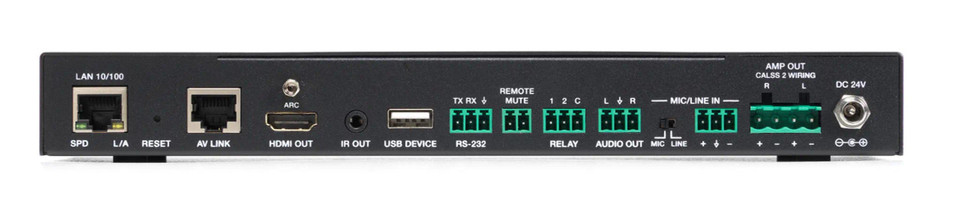

Ports	JPK-1300 TX (2) HDMI Type A Port (Audio, Video) (1) USB Type C Port (Audio, Video, USB 2.0) (1) USB Type B Port (USB Host) (1) MICRO USB Port (Program) (1) RJ-45; (AV Link - Connection to RX) (1) RJ-45; (Control - Connection to Keypad) JPK-1300 RX (1) Screw Down Locking Power Connector (DC Power) (1) HDMI Type A Port (Audio, Video) (1) USB Type A Port (USB Device) (1) MICRO USB Port (Program) (1) 3.5 mm Mini-Stereo Jack (IR Out) (1) RJ-45 Connector, TCP/IP Port (LAN 10/100) (1) RJ-45 (AV Link – Connection to TX) (1) 3-pin 3.81 mm pluggable Phoenix Terminal Blocks (RS-232) (1) 3-pin 3.81 mm pluggable Phoenix Terminal Blocks (Relays) (1) 2-pin 3.81 mm pluggable Phoenix Terminal Blocks (REMOTE MUTE) (1) 3-pin 3.81 mm pluggable Phoenix Terminal Blocks (Audio Out) (1) 4-pin 5.08 mm pluggable Phoenix Terminal Blocks (AMP OUT) (1) 3-pin 3.81 mm pluggable Phoenix Terminal Blocks (MIC/LINE IN)
Environmental	Temperature (Operating): 32°F (0°C) to 104°F (40°C) Temperature (Storage): -4°F (-20°C) to 140°F (60°C) Humidity (Operating): 20% to 90% RH (non-condensing) Humidity (Storage): 20% to 90% RH (non-condensing) Thermal Dissipation (Typical): JPK-1300 Kit, 80 Watts BTU/hr
Regulatory Compliance	FCC Part 15 Class B EN 55032 EN 55035 CB IEC/EN 60950 CB IEC/EN 62368-1 UL 62368-1 RoHS/REACH EMC (Australia) EMC (Canada) EMC (UKCA) Prop65
Dimensions (H x W x D)	UA version: Keypad: Front panel: 70mm x 114mm x 22.2mm / 2.76” x 4.49” x 0.87” Rear case: 69.4mm x 48.4mm x 17.2mm / 2.73” x 1.91” x 0.68” Wall-plate Transmitter: Front panel: 116mm x 114mm x 39.2mm / 4.57” x 4.49” x 1.54” Rear case: 85.8mm x 52.6mm x 34.2mm / 3.38” x 2.07” x 1.35” Receiver: 250mm x 30mm x 104mm / 9.84” x 1.18” x 4.09” EK version: Keypad: Front panel: 146mm x 85mm x 22.2mm / 5.75” x 3.35” x 0.87” Rear case: 69.4mm x 48.4mm x 17.2mm / 2.73” x 1.91” x 0.68” Wall-plate Transmitter: Front panel: 146mm x 85mm x 39.2mm / 5.75” x 3.35” x 1.54” Rear case: 85.8mm x 52.6mm x 34.2mm / 3.38” x 2.07” x 1.35” Receiver: 250mm x 30mm x 104mm / 9.84” x 1.18” x 4.09”
Weight	UA version: Keypad: 0.19kg/0.42lb Wall-plate Transmitter: 0.35kg/0.77lb Receiver: 0.81kg/1.79lb EK version: Keypad: 0.23kg/0.51lb Wall-plate Transmitter: 0.33kg/0.73lb Receiver: 0.81kg/1.79lb
