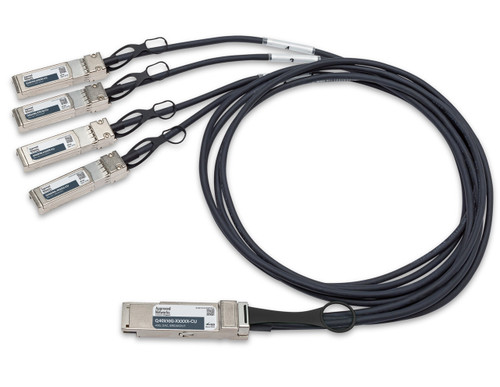

Approved Networks Arista/Juniper 40GBASE QSFP+ Passive DAC Cable (QSFP+ to 4 x SFP+) Multi-Vendor Breakout Length Required
A passive DAC cable carries an Ethernet signal over a short length (typically under five meters) of copper with no additional components to boost the signal. The host networking equipment must support the signal processing functions for a passive DAC to work. When a DAC is inserted, networking gear that is compatible with passive DACs reads the module type so the signal conditioning can be activated. Today, 98% of the market utilizes passive DACs for transmissions of seven meters and under, but this depends on the data rate.
40GBase QSFP+ to 4 x SFP+, 100% Compatible Multi-Vendor DAC (Direct Attach Copper) Breakout Cable, Passive
Features
- Fully compliant to the latest SFP+ & QSFP MSA (Multi-Source-Agreement)
- Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standards
- Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)
- 30 AWG to 26 AWG cable sizes available
- 100 ohm differential impedance system
- Single 3.3V power supply, low power consumption, <0.5W
- Operating case temperature: -40 to 85°C
- All-metal housing for superior EMI performance
- Precision process control for minimization of pair-to-pair skew
- AC coupling of PECL signals
- EEPROM for cable signature & system communications
- Low cross-talk and pair-to-pair skew maintains signal integrity
- Fully RoHS compliant for environmental protection
Applications
• InfiniBand SDR, DDR,QDR
• 40G Ethernet transmission
• Fiber Channel
• Rack-to-Rack, Shelf-to-Shelf Interconnect
• Networking
• Hubs, switches, routers, servers
• Data center interconnect
• High Performance Computing application
