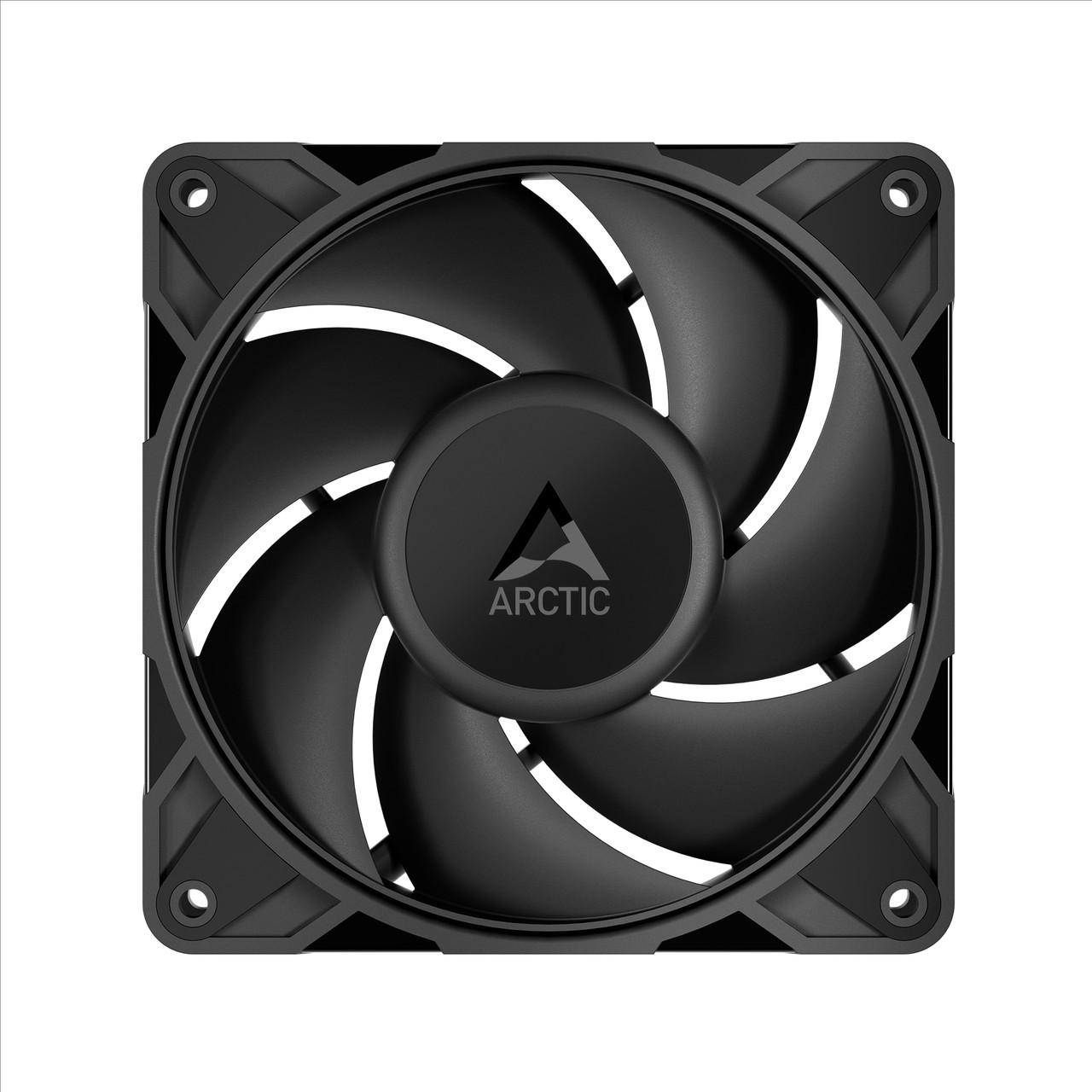

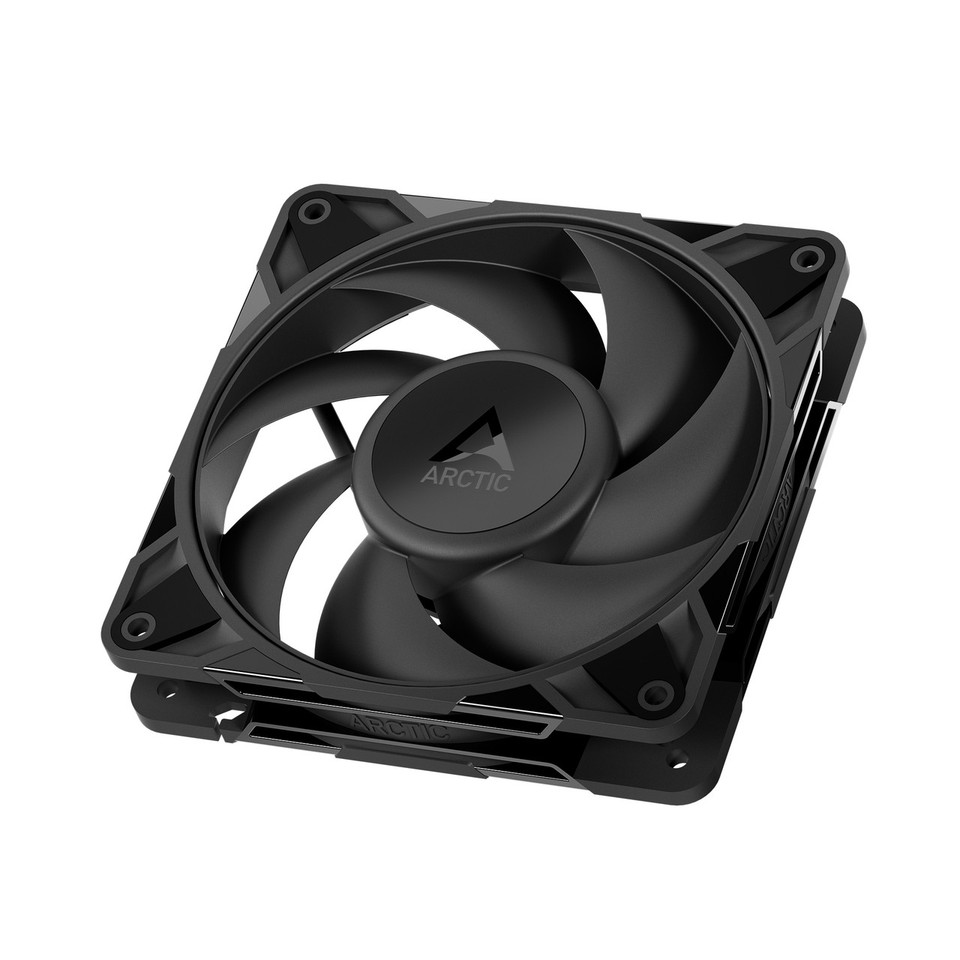

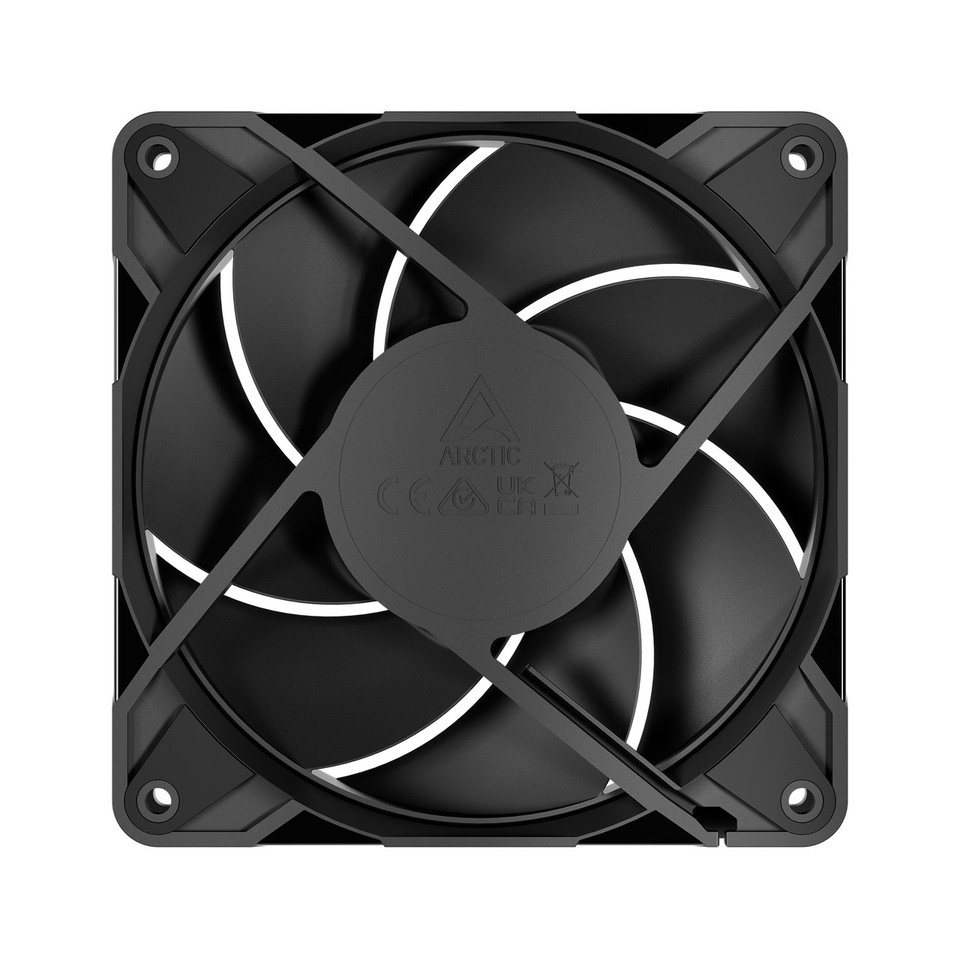

Arctic P12 Pro 120 mm PWM Fan - ACFAN00305A

Product code: UK-ARC-ACFAN00305A
UPC: 840033402750
Condition: New
Availability: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.uk | Call Us: +44 330 043 2524

Request A Quote

Arctic P12 Pro 120 mm PWM Fan - ACFAN00305A Efficient Performance at High Air Resistance Thanks to high static pressure, the Pro fans move air effectively throu…

Arctic P12 Pro 120 mm PWM Fan - ACFAN00305A

Arctic P12 Pro 120 mm PWM Fan - ACFAN00305A

Arctic P12 Pro 120 mm PWM Fan - ACFAN00305A

Efficient Performance at High Air Resistance

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

Optimized Bearing-Shaft Design (FDB)

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

Automated Balancing

An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

General Specifications
Warranty
6 Years

Operating Ambient Temperature
0–40 °C

Dimensions
120 (L) x 120 (W) x 25 (H) mm

Net Weight
183 g

Fan Specifications

Fan Speed
600–3000 rpm, PWM controlled
0 rpm below 5 % PWM

Airflow
77 cfm | 131 m³/h

Static Pressure
6.9 mmH2O

Fan Bearing
Fluid Dynamic Bearing

Typical Voltage
12 V DC

Start Up Voltage
3.3 V DC

Current
0.33 A

Cable Length
400 mm

Connector
4-Pin Fan Plug

Packaging
  •  Width: 125 mm
  •  Height: 30 mm
  •  Length: 127 mm
  • Weight: 0.224 kg

Datasheet
