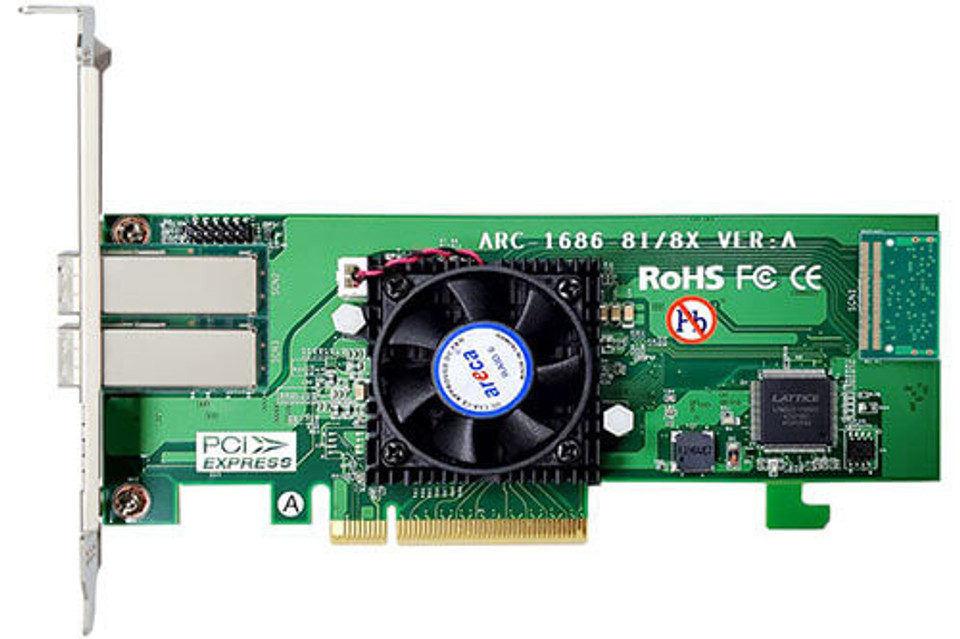

Areca 8 Ports PCIe Gen 4.0 Cost-Effective Raid Adapters - ARC-1686-8X

The new generation ARC-1686-8X family offers advanced technology for increased performance and improved enterprise data protection. They were designed with 1.6 GHz dual core ROC processor and PCIe 4.0 interface for the most performance-hungry database and IT applications. Based on the ARM A15 PCIe 4.0 x8 to SAS/SATA/PCIe RAID on Chip (ROC) controller, the ARC-1686-8X cost-effective tri-mode RAID adapters can offer both PCIe Gen 4.0 host and 12Gb/s SAS/SATA/PCIe (NVMe) tri-mode storage interfaces.

High Bandwidth PCI-E 4.0 Support

To run the PCIe Gen 4.0 slots in Gen 4 speed, please must install the ROC which supports PCI Express 4.0. If you install the PCIe3.0 ROC, the PCI Express 4.0 slots will run only at Gen3 speed.

• Higher bit rate - 16.0GT/s

• Higher bandwidth per lane - 2GB/s

• Higher efficiency - 98.5% encoding efficiency

At the heart of ARC-1686-8X is the incredibly powerful Broadcom SAS3908 dual-core ARM A15 tri-mode ROC, giving effortless performance as desirable. It delivers storage interface PCIe Gen 4 NVMe, 12Gb/s SAS, 6Gb/s SATA, and the security of data protection. Damage in a software RAID is considered as the consumption of massive computation and memory bandwidth on the host. The ARC-1686-8X hardware RAID relieves the parity generation burden from the host and maximizes application processing performance.

ARC-1686-8I PCIe Gen 4.0 Cost-Effective RAID Adapters is built to deliver unprecedented performance, using only carefully, best-in-class components. These include the dual core Broadcom SAS3908, PCIe Gen 4.0 and tri-mode ROC.

Product Highlights

✵ Tri-mode interface at each drive ports-12Gb/s SAS/SATA/ Gen 4.0 PCIe (NVMe)

✵ x8 PCIe Gen 4.0 host interface

✵ Hardware secure boot ready

✵ Universal Bay Management (UBM) management

✵ SFF-9402 compliant connector pin-out

✵ SED support for hardware encryption capable drives

✵ Redundant flash image for adapter availability

✵ Support for SAS tape devices and transport layer retries (TLR) for error handling

✵ RAID levels 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) or JBOD

✵ Broad operating support including Windows, Linux (open source), FreeBSD (open source) and Mac

RAID Features

• RAID level 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) or JBOD
• Multiple RAID selection
• Configurable stripe size up to 1MB
• Support HDD firmware update
• Online array roaming
• Online RAID level/stripe size migration
• Online capacity expansion and RAID level migration simultane ously
• Online volume set growth
• Instant availability and background initialization
• Support global and dedicated hot spare
• Automatic drive insertion/removal detection and rebuilding
• Support for native 4K and 512 byte sector SAS and SATA devices
• Support UNMAP command
• S.M.A.R.T. support
• Multiple pairs SSD/HDD disk clone function
• SSD automatic monitor clone (AMC)
• SED support for hardware encryption capable drives

Operating Systems

• Microsoft Windows
• Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux
• FreeBSD
• XenServer
• unRAID
• macOS
