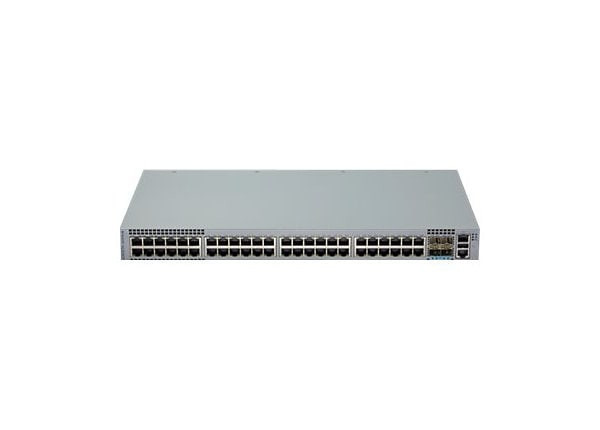

Arista 7010X Series High performance and power efficient 1G Ethernet switch
High Performance and Power Efficient Data Center Gigabit Ethernet Switch
Data centers demand high performance networking solutions. The Arista 7010X offers a purpose built high performance and power efficient solution for high density data center deployments with rich features for modern networks. The Arista 7010X series delivers line rate switching at layer 2 and layer 3 with support for VXLAN and EVPN to enable simple network designs for data centers that lowers the network capital and operational expenses. When used in conjunction with the Arista 7000 series of fixed and modular switches it allows networks to scale out in a high performance two-tier network that provides predictable and consistent application performance.
Offering a choice of two models the 7010X Series supports both AC or DC power. Both models have 48 RJ45 ports for 10/100/1000Mb Ethernet and 4 SFP28 ports for 25G, 10G and 1G uplink connections using a wide range of optics and cables.
High-Performance Server Access
- Non-Blocking 48 10/100/1000 Mbps (RJ-45) & four 1/10/25GbE uplinks (SFP28)
- Wire speed layer 2/3 switching up to 296 Gbps and 220 Mpps
- 100 gigabits of interconnect capacity from leaf to the spine
- 4MB fully shared packet buffer
Cloud Networking Ready
- VXLAN and EVPN
- Up to 64K MAC entries
- Up to 32K IPv4 and 16K IPv6 Host Routes
- Up to 16K IPv4 and 6K IPv6 Routes
- 64-way ECMP and 64-port MLAG
Datacenter Optimized
- Redundant power with power consumption under 0.3W/Gbps
- Redundant & hot-swappable fans
- Field reversible fan module for rear-to-front or front-to-rear cooling
- 4 uplinks for ECMP and MLAG
- 2 post and 4 post mounting
- Smart System Upgrade with Hitless Software Upgrade *
- MLAG ISSU
Arista EOS
- Single binary image for all products
- Fine-grained truly modular network OS
- Full Access to Linux shell and tools
- Extensible platform - bash, python, C++
- Self-healing stateful fault repair (SFR)
Advanced Traffic Control, Provisioning and Monitoring
- LANZ for Microburst Detection
- VXLAN and EOS Network Tracers
- CloudVision for a topology agnostic single point of management
- Open Extensibility and Programmability
- Software Driven Cloud Networking
- Chef, Puppet, Ansible
