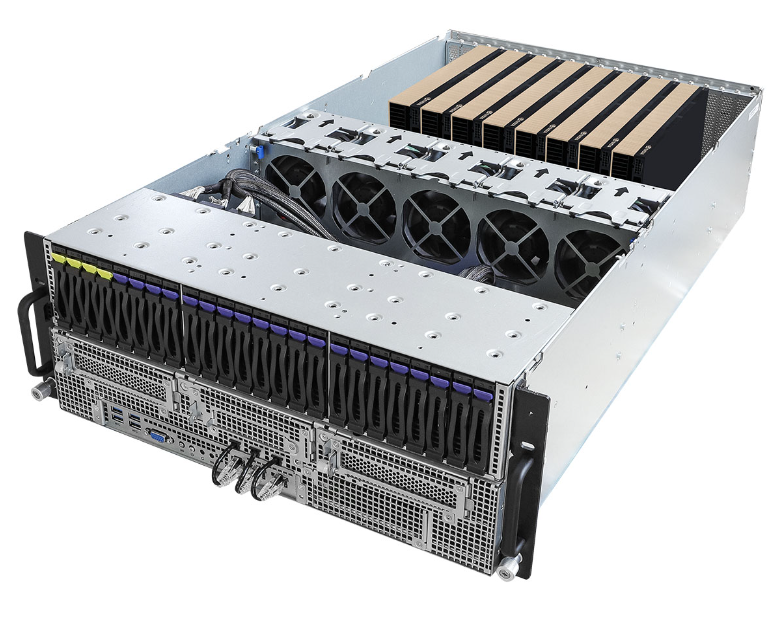

AsRock 4U8G-GNR2 4U Rackmount Server
Experience unparalleled performance and efficiency with the AsRock 4U8G-GNR2, a powerful and versatile 4U rackmount server meticulously engineered for demanding enterprise workloads. This server is designed to maximize your computing capabilities while maintaining optimal energy efficiency.
Unleash the Power of Dual-Socket Computing
Harness the full potential of Intel's latest Xeon Scalable processors with support for two Intel Xeon Scalable processors in an LGA 4710 socket configuration. This dual-socket architecture allows you to tackle the most demanding tasks, from high-performance computing to virtualization and data-intensive applications.
Exceptional Memory Capacity and Bandwidth
With support for up to 16 DDR5 RDIMMs per processor (32 total), the AsRock 4U8G-GNR2 provides massive memory capacity and bandwidth, enabling lightning-fast data access and processing. This makes it ideal for memory-intensive workloads such as in-memory databases, big data analytics, and AI applications.
High Availability and Redundancy for Uninterrupted Operation
Built with redundancy and reliability in mind, this server offers multiple features to ensure high availability. Its 3+1 redundant power supply configuration with 80-PLUS Platinum/Titanium certification guarantees maximum uptime and energy efficiency. The server also supports advanced RAID configurations, providing data protection and fault tolerance.
Features:
- 4U Rackmount with 3+1, 80-PLUS Platinum/Titanium, 1600W CRPS
- Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6 Processors
- 16+16 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
- 4 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays or 24 Hot-swap 2.5" SATA/SAS* drive bays *Additional RAID/HBA card required
- 8 FHFL dual-slot PCIe5.0 x16
- 1 FHHL PCIe5.0 x16
- Supports 1 M.2 (PCIe5.0 x4)
- 2 RJ45 (1GbE) by Intel® i350
- Remote Management (IPMI)
Specifications
| System | |
| Form Factor | 4U Rackmount |
| Dimensions | 786 x 438 x 176.5 mm (30.9'' x 17.2'' x 6.9'') |
| Support MB | GNR2D32G-2L+ |
| Front Panel | |
| Buttons | Power button w/ LED, Reset button, NMI button, UID button |
| LEDs | System fault LED, HDD activity LED |
| I/O Ports | 2 RJ45 (1GbE) by Intel i350, shares with Rear IO 4 Type-A (USB3.2 Gen1) 1 DB15 (VGA) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 4 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays or 24 Hot-swap 2.5" SATA/SAS* drive bays *Additional RAID/HBA card required to support the 24 x 2.5" SATA/SAS drive bays |
| Front Side Backplane | 24-port NVMe/SATA/SAS* passive backplanes *SAS drive is only supported with additional RAID/HBA cards |
| Internal Side | 1 M-key (PCIe5.0 x4), supports 22110/2280 form factor [CPU0] |
| Power Supply | |
| Type | 3+1 CRPS |
| Output Watts | 1000W @ 100-127Vac input / 1600W @ 200-240Vac input |
| Efficiency | 80-PLUS Platinum/Titanium |
| AC Input | Low-line: 100-127Vrms, 47/63Hz ; High-line: 200-240Vrms, 47/63Hz |
| System Fan | |
| Fan | 5 Middle Hot-swap 80x80 mm fans |
| Processor System | |
| CPU | Supports Intel® Xeon® 6 Processors |
| Socket | 1+1 Socket E2 (LGA 4710) |
| Thermal Design Power | Up to 400W |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Supported Type | 288-pin DDR5 RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 128GB RDIMM-3DS: 256GB |
| Max. DIMM Frequency | RDIMM, RDIMM-3DS: 6400MT/s (1DPC), 5200MT/s (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | Rear: 8 FHFL dual-slot PCIe5.0 x16 Front: 1 FHHL PCIe5.0 x16 |
| TPM | |
| TPM support | 1 (13-pin, SPI) |
| Ethernet | |
| Additional GbE Controller | Intel® i350: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | UID button |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) by Intel i350, shares with Front Panel 1 dedicated IPMI, shares with Front Panel |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachomete CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
