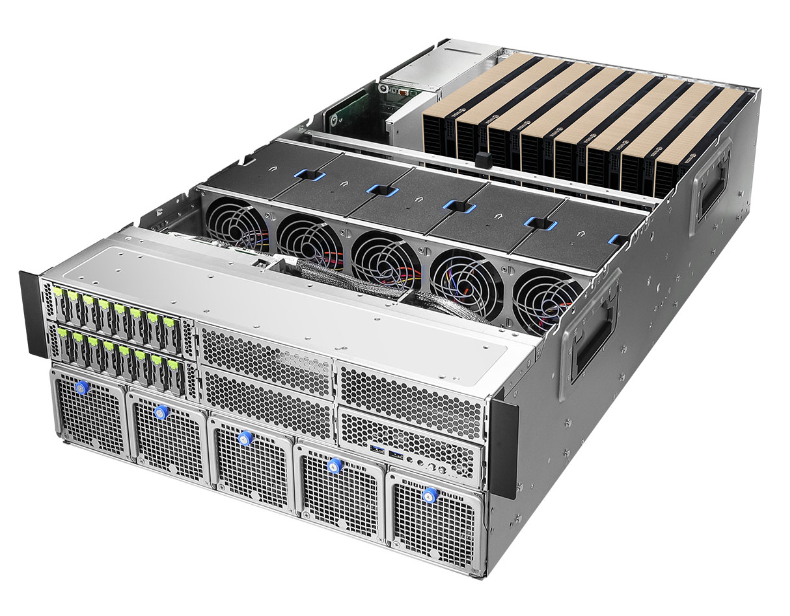

ASRock 4UMGX-GNR2 4U NVIDIA MGX Server
Experience unparalleled computing power and efficiency with the ASRock 4UMGX-GNR2, a 4U server designed for high-performance computing, AI, and deep learning workloads. This server is engineered for maximum performance and scalability, empowering your business to reach new heights.
Unleash the Power of NVIDIA MGX
Equipped with the innovative NVIDIA MGX platform, this server supports up to three double-wide GPUs or one quad-wide GPU plus one double-wide GPU in a 3+1 configuration. This allows for incredible GPU density and flexibility, enabling you to tackle even the most demanding AI and deep learning tasks with ease.
Exceptional Performance and Efficiency
The ASRock 4UMGX-GNR2 is driven by dual Intel Xeon Scalable processors (LGA 4710), supporting up to 6 terabytes of DDR5 RDIMM and RDIMM-3DS memory across 16+16 DIMM slots in a balanced 2DPC configuration. This robust architecture delivers exceptional processing power and memory bandwidth, ensuring smooth and efficient operation even under heavy workloads.
Features:
- 4U NVIDIA MGX™ with 3+1, 80-PLUS Platinum/Titanium, 2700W CRPS
- Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6 Processors
- 16+16 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
- 16 Hot-swap E1.S (PCIe5.0 x4) drive bays
- 8 FHFL dual-slot PCIe5.0 x16
- 5 FHHL PCIe5.0 x16
- 1 HHHL PCIe5.0 x16
- Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe5.0 x2)
- 2 RJ45 (1GbE) by Intel® i350
- Remote Management (IPMI)
Specifications
| System | |
| Form Factor | 4U NVIDIA® MGX™ |
| Dimensions | 800 x 438 x 176.5 mm (31.5'' x 17.2'' x 6.9'') |
| Support MB | GNR2D32MGX |
| Front Panel | |
| Buttons | Power button w/ LED, Reset button, NMI button, UID button w/ LED |
| LEDs | System fault LED, HDD activity LED, LAN1/LAN2 activity LED |
| I/O Ports | 2 Type-A (USB3.2 Gen1) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 16 Hot-swap E1.S (PCIe5.0 x4) drive bays, supports 9.5mm/15mm width |
| Internal Side | 1 M-key (PCIe5.0 x4), supports 22110/2280 form factor [CPU0] 1 M-key (PCIe5.0 x2), supports 22110/2280 form facotr [CPU0] |
| Power Supply | |
| Type | 3+1 CRPS |
| Output Watts | 1200W @ 100-127Vac input / 2700W @ 200-240Vac input |
| Efficiency | 80-PLUS Platinum/Titanium |
| AC Input | Low-line: 100-127Vrms, 50/60Hz ; High-line: 200-240Vrms, 50/60Hz |
| System Fan | |
| Fan | 10 Hot-swap 80x80 mm fans |
| Processor System | |
| CPU | Supports Intel® Xeon® 6 Processors |
| Socket | 1+1 Socket E2 (LGA 4710) |
| Thermal Design Power | Up to 350W |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Supported Type | 288-pin DDR5 RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 128GB RDIMM-3DS: 256GB |
| Max. DIMM Frequency | RDIMM, RDIMM-3DS: 6400MT/s (1DPC), 5200MT/s (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | Rear: 8 FHFL dual-slot PCIe5.0 x16 5 FHHL PCIe5.0 x16 1 HHHL PCIe5.0 x16 |
| Ethernet | |
| Additional GbE Controller | Intel® i350: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 UID button |
| Other Button/LED | 1 Reset button, 1 Power button, |
| VGA Port | 1 Mini-DisplayPort (VGA) |
| USB 3.2 Gen1 Port | 1 Type-A (USB3.2 Gen1) |
| RJ45 | 1 dedicated IPMI |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachomete CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
