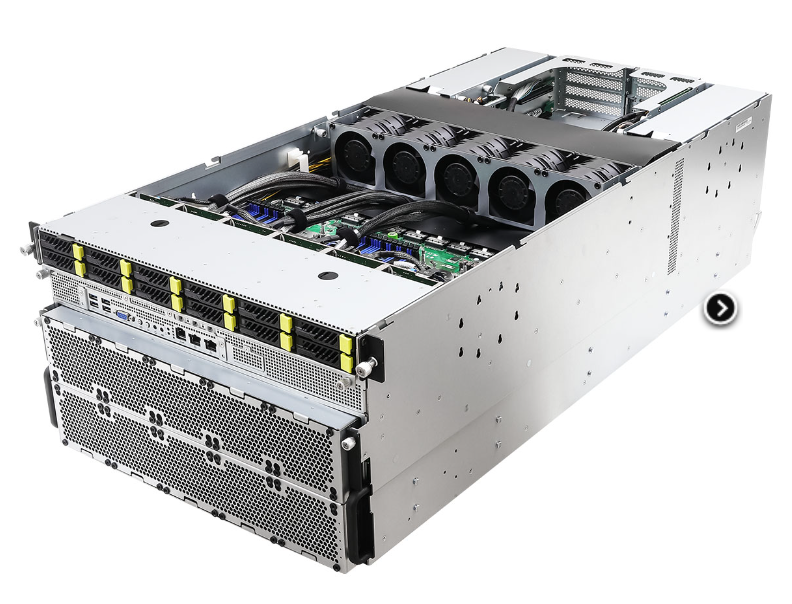

AsRock 6U8X-EGS2 B100 6U Rackmount Server Board
Unleash unparalleled performance and scalability with the AsRock 6U8X-EGS2 B100 server board, a powerhouse engineered for demanding enterprise workloads. This dual-socket LGA 4677 board, housed in a robust 6U rackmount form factor, supports the latest 5th and 4th Gen Intel Xeon Scalable processors, delivering exceptional computing prowess.
Exceptional Power Efficiency and Reliability
Experience unmatched power efficiency with the integrated 4+4 3000W CRPS, boasting an impressive 80-PLUS Platinum/Titanium certification. This ensures optimal energy utilization, reducing operational costs without compromising on performance.
Unmatched Memory Capacity and Bandwidth
Equipped with 16+16 DIMM slots (2DPC) supporting DDR5 RDIMM and RDIMM-3DS, the 6U8X-EGS2 B100 provides massive memory capacity and bandwidth. This architecture enables lightning-fast data processing, making it ideal for memory-intensive applications like virtualization, data analytics, and AI.
Features:
- 6U Rackmount with 4+4, 80-PLUS Platinum/Titanium, 3000W CRPS
- Dual Socket E (LGA 4677), supports 5th and 4th Gen Intel® Xeon® Scalable Processors
- 16+16 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
- Supports NVIDIA HGX B100 8-GPU with NVIDIA NVSwitch™
- 8 HHHL PCIe5.0 x16, 5 FHHL PCIe5.0 x16
- 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays, 4 Hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
- Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe3.0 x4)
- 2 RJ45 (1GbE) by Intel® i350-AM2
- Remote management (IPMI)
Specifications
| System | |
| Form Factor | 6U Rackmount |
| Dimensions | 930 x 448 x 264.7mm (36.6'' x 17.6'' x 10.4'') |
| Support MB | SP2C741D32G-2L+ |
| Front Panel | |
| Buttons | Power button w/ LED, Reset button, NMI button, UID button |
| LEDs | System fault LED, HDD activity LED |
| I/O Ports | 2 RJ45 (1GbE) by Intel i350, shares with Rear IO 1 dedicated IPMI, shares with Rear IO 4 Type-A (USB3.2 Gen1) 1 DB15 (VGA) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays, 4 Hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays |
| Internal Side | 1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 2280/22110 form factor [PCH] 1 M-key (PCIe3.0 x4), supports 2280/22110 form factor [PCH] |
| Power Supply | |
| Type | 4+4 CRPS |
| Output Watts | 3002.4W @ 220-240Vac input, 2900W @200-220Vac input, 1250W @100-127Vac input |
| Efficiency | 80-PLUS Platinum/Titanium |
| AC Input | Low-line: 100-127Vrms, 50/60Hz ; High-line: 200-240Vrms, 50/60Hz |
| System Fan | |
| Fan | 21 PWM Hot-swap 80x80 mm fans |
| Processor System | |
| CPU | Supports 5th and 4th Gen Intel® Xeon® Scalable Processors |
| Socket | Dual Socket E (LGA 4677) |
| Thermal Design Power | Up to 350W |
| Chipset | C741 |
| System Memory | |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 96GB (2R) RDIMM-3DS: 512GB (2S8Rx4) |
| Max. DIMM Frequency | 5600 MT/s (1DPC) / 4400 MT/s (2DPC) on 5th Gen Intel® Xeon® Scalable Processors 4800 MT/s (1DPC) / 4400 MT/s (2DPC) on 4th Gen Intel® Xeon® Scalable Processors *Memory speed and capacity support varies by CPU SKU |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | Rear: 8 HHHL PCIe5.0 x16 5 FHHL PCIe5.0 x16 |
| Ethernet | |
| Additional GbE Controller | Intel® i350: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 UID button |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) by Intel® i350, shares with Front Panel 1 dedicated IPMI, shares with Front Panel |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjus |
| Voltage | P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
