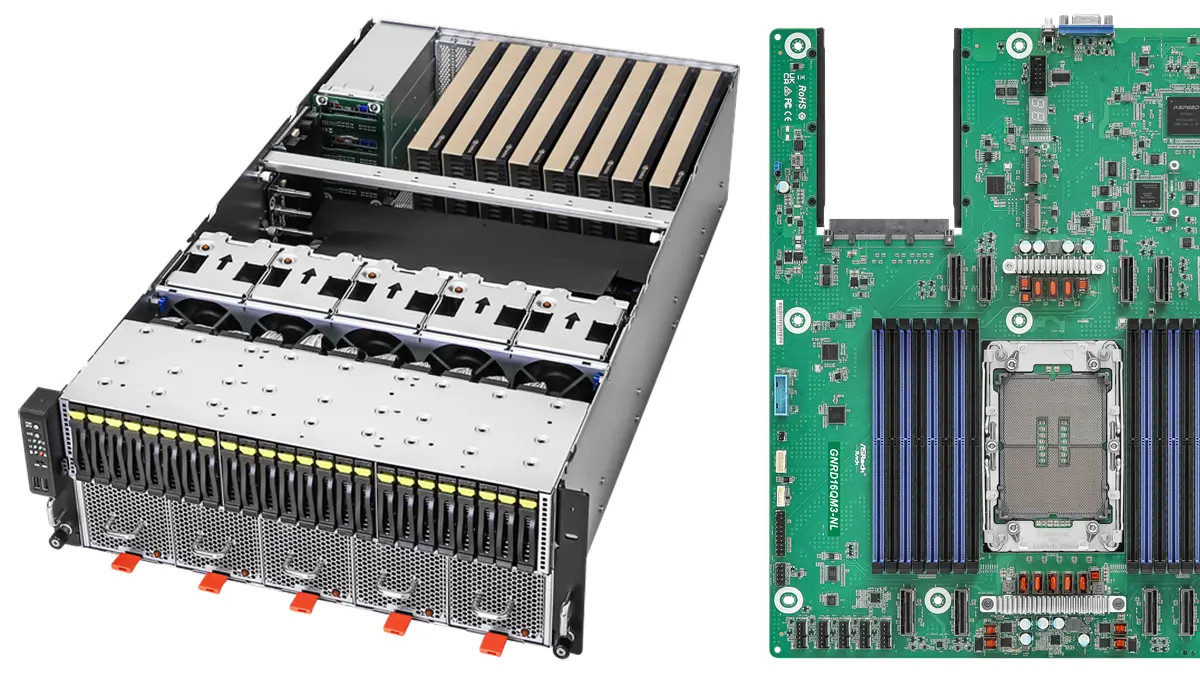

AsRock 6U8X-GNR2/DLC B200 6U Rackmount Server Board
The AsRock 6U8X-GNR2/DLC B200 is a powerful and reliable server motherboard designed for demanding enterprise applications. With support for dual Intel Xeon Scalable processors, up to 3TB of DDR5 memory, and an array of high-speed connectivity options, this board delivers exceptional performance and scalability.
Key Features:
- 6U Rackmount with 6+2, 80-PLUS Titanium, 3000W CRPS
- Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6 Processors
- 16+16 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
- Supports NVIDIA HGX B200 8-GPU with NVIDIA NVSwitch™
- 8 HHHL PCIe5.0 x16, 5 FHHL PCIe5.0 x16
- 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch
- 2 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from CPU
- Supports 1 M.2 (PCIe5.0 x2)
- 2 RJ45 (1GbE) by Intel® i350-AM2
- Remote management (IPMI)
Benefits:
- Unmatched Performance: Experience blazing-fast processing speeds and seamless multitasking with support for dual Intel Xeon Scalable processors.
- Massive Memory Capacity: Equip your system with up to 3TB of DDR5 ECC memory across 16 DIMM slots, ensuring ample capacity for even the most data-intensive workloads.
- Enhanced Reliability and Stability: Benefit from the robust design and high-quality components of the AsRock 6U8X-GNR2/DLC B200, engineered for 24/7 operation and mission-critical applications.
- Future-Proof Your Infrastructure: The AsRock 6U8X-GNR2/DLC B200 is built for the future, with support for the latest generation Intel Xeon processors and DDR5 memory, ensuring your investment remains relevant for years to come.
Specifications
| System | |
| Form Factor | 6U Rackmount |
| Dimensions | 930 x 448 x 264.7mm (36.6'' x 17.6'' x 10.4'') |
| Support MB | GNR2D32G-2L+ |
| Front Panel | |
| Buttons | Power button w/ LED, Reset button, NMI button, UID button |
| LEDs | System fault LED, HDD activity LED |
| I/O Ports | 2 RJ45 (1GbE) by Intel i350, shares with Rear IO 1 dedicated IPMI, shares with Rear IO 4 Type-A (USB3.2 Gen1) 1 DB15 (VGA) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch 2 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from CPU |
| Internal Side | 1 M-key (PCIe5.0 x2), supports 22110/2280 form factor [CPU1] |
| Power Supply | |
| Type | 6+2 CRPS |
| Output Watts | 3002.4W @ 220-240Vac input, 2900W @200-220Vac input, 1250W @100-127Vac input |
| Efficiency | 80-PLUS Titanium |
| AC Input | Low-line: 100-127Vrms, 50/60Hz ; High-line: 200-240Vrms, 50/60Hz |
| System Fan | |
| Fan | 21 PWM Hot-swap 80x80 mm fans |
| Processor System | |
| CPU | Supports Intel® Xeon® 6 Processors |
| Socket | 1+1 Socket E2 (LGA 4710) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 128GB RDIMM-3DS: 256GB |
| Max. DIMM Frequency | RDIMM, RDIMM-3DS: 6400MT/s (1DPC), 5200MT/s (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | Rear: 8 HHHL PCIe5.0 x16 5 FHHL PCIe5.0 x16 |
| Ethernet | |
| Additional GbE Controller | Intel® i350: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 UID button |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) by Intel® i350, shares with Front Panel 1 dedicated IPMI, shares with Front Panel |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjus |
| Voltage | P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
