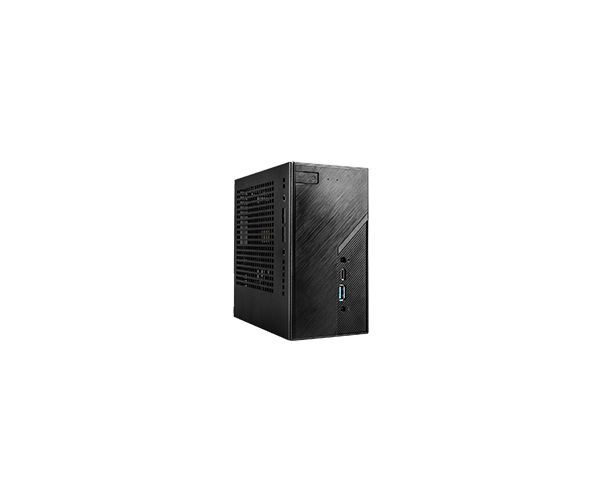

AsRock DeskMini B860 Series - 1.92L Mini PC - Intel Core Ultra Processors (Series 2) (LGA1851), up to 65W
- 1.92L Mini PC
- CPU: Supports Intel Core Ultra Processors (Series 2) (LGA1851), up to 65W
- Memory:
CSO-DIMM version, 2 x DDR5-6400+(OC) MHz slots, max. 128GB
SO-DIMM version, 2 x DDR5-5600+(OC) MHz slots, max. 128GB - Quad Video Outputs:
1 x HDMI 2.1
2 x DisplayPort
1 x Thunderbolt 4 - Quad Storage Devices:
1 x M.2 2280 Slot for PCIe Gen5x4 SSD
1 x M.2 2280 Slot for PCIe Gen4x4 SSD
2 x SATA3 6Gb/s - Abundant USB Ports:
1 x USB 3.2 Gen2x2 Type-C (Front)
1 x USB 3.2 Gen1 Type-A (Front)
1 x Thunderbolt 4 (Rear)
2 x USB 3.2 Gen1 Type-A (Rear)
Specifications
-
CPU- Supports Intel Core Ultra Processors (Series 2) (LGA1851), up to 65W
-
Chipset- Intel B860- Intel Q870 (Deskmini Q870)
-
Cooler- Supports Intel CPU Cooler (Max. Height ≦ 47mm)
-
Memory- CSO-DIMM version, 2 x DDR5-6400+(OC) MHz slots, max. 128GB
- SO-DIMM version, 2 x DDR5-5600+(OC) MHz slots, max. 128GB -
Graphics- Intel Graphics
-
Graphics Output- 2 x DisplayPort 1.4 (8K@60Hz / 4K@120Hz)
- 1 x HDMI 2.1 (4K@120Hz)
- 1 x Intel Thunderbolt 4 -
Audio- Realtek ALC269 Audio Codec
-
Storage- 2 x SATA 6Gb/s Ports
- 1 x M.2 2280 Slot for PCIe Gen5x4 SSD
- 1 x M.2 2280 Slot for PCIe Gen4x4 SSD -
RAID- Supports RAID 0 and RAID 1 for SATA storage devices
-
LAN- 2.5 Gigabit LAN (RTL8125BG)
-
WLAN- 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module
-
Front I/O- 1 x MIC-in
- 1 x USB 3.2 Gen2x2 Type-C
- 1 x USB 3.2 Gen1 Type-A
- 1 x Headphone/Headset Jack -
Rear I/O- 1 x DC-In Jack
- 1 x Intel Thunderbolt 4
- 2 x USB 3.2 Gen1 Type-A
- 1 x 2.5 Gigabit LAN -
Connectors- 2 x CPU Fan Connectors (2 x 4-pin)
- 1 x Internal Speaker Header
- 1 x Front Panel Header
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x Audio Header -
Accessory- 2 x SATA Data with Power Cable- 1 x Wi-Fi 5 Kit (Deskmini B860W)
- 2 x Screws for M.2 Sockets
- 1 x Screw for WiFi Module -
Dimension- 155 x 155 x 80 mm (1.92L)
- Security : - TPM 2.0 (Deskmini Q870)
-
OS- Microsoft Windows 11 64-bit
