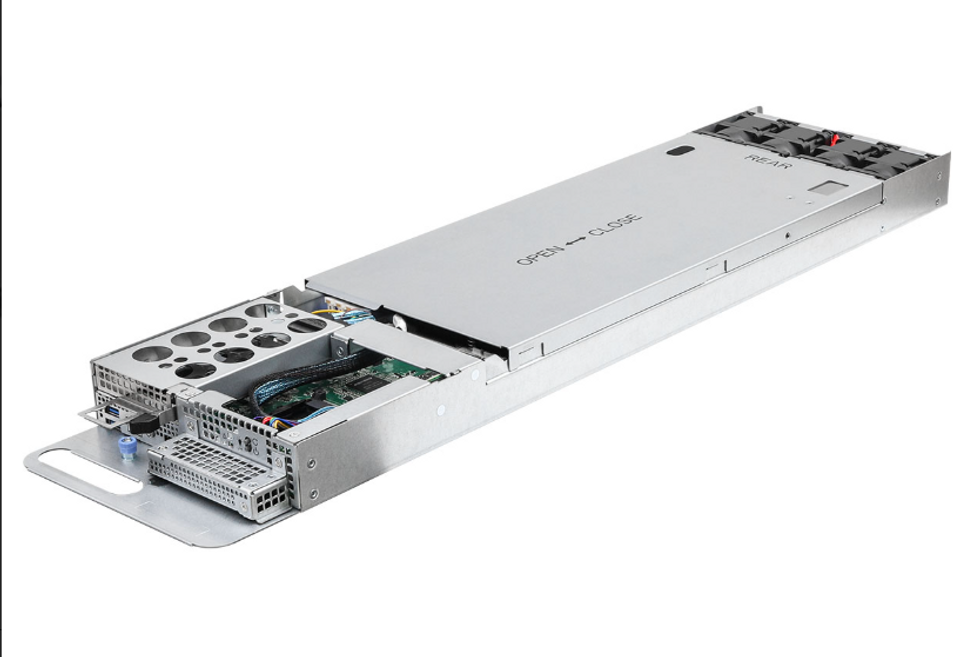

Asrock Rack 1OU3N-MILAN/ORV3: Maximize Density, Minimize Footprint
Introducing the Asrock Rack 1OU3N-MILAN/ORV3, a compact yet powerful 1OU chassis engineered for high-performance computing and data-intensive workloads. This innovative server solution houses three independent ORv3 sleds, each equipped with a potent processor and ample memory capacity, delivering exceptional compute power in a space-saving design.
Unleash Performance Density
- Three-bay ORv3 Architecture: Accommodates three individual ORv3 server sleds within a single 1OU chassis, maximizing processing power within your rack space.
- Powerful Processing: Each sled supports a single AMD EPYC™ 7003 Series processor (codenamed "Milan"), offering unparalleled core counts and performance for demanding applications.
- Extensive Memory Capacity: Each sled features 8 DIMM slots, supporting DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and NVDIMM-N, enabling massive memory configurations to handle data-intensive tasks.
- Efficient Power Delivery: The chassis utilizes a 48V busbar design, delivering 750W of power to each sled efficiently and reliably.
Optimize Your Data Center
The Asrock Rack 1OU3N-MILAN/ORV3 offers significant advantages for data centers and enterprise environments:
- Space Optimization: The compact 1OU design allows you to pack more computing power into your existing rack space, reducing your data center footprint and operating costs.
- Scalability and Flexibility: Easily scale your computing resources by adding or removing ORv3 sleds as your needs evolve.
- Simplified Management: Manage multiple servers from a single chassis, streamlining maintenance and administrative tasks.
Ideal for Demanding Workloads
The Asrock Rack 1OU3N-MILAN/ORV3 excels in various high-performance computing scenarios, including:
- Virtualization and Cloud Computing
- High-Performance Computing (HPC)
- Data Analytics and Machine Learning
- Database Management
Specifications
| System | |
| Form Factor | 1OU Rackmount, ORv3 |
| Dimensions | 537 x 800 x 45.5 mm (21.1" x 31.5" x 1.79", Shelf Dimensions) |
| Support MB | ROMED8HM3 |
| Front Panel | |
| Buttons | Power, UID button w/ LED |
| LEDs | Power |
| I/O Ports | 1 Mini-DisplayPort (VGA)*, 2 Type-A (USB3.2 Gen1) *Need to bundle ASRock Rack special cable for VGA |
| IPMI LAN | 1 dedicated IPMI |
| Rear Panel | |
| Backplane power connector | 1 IT Gear connector for ORv3 48V busbar |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 1 Easy-swap 2.5" NVMe (PCIe4.0 x4) drive bay |
| Internal Side | 2 M-key (PCIe3.0 x4 or SATA 6Gb/s); support 22110/2280/2260/2242/2230 form factor |
| Power Supply | |
| Type | Centralized 48V busbar to OCPV3_PDB/1V |
| Output Watts | 750W |
| System Fan | |
| Fan | 4 system fans (40 x 56 mm) per sled |
| Processor System | |
| CPU | Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology)/7002 series processors |
| Socket | Single Socket SP3 (LGA4094) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (1DPC) |
| Supported Type | Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: up to 64GB LRDIMM: up to 128GB RDIMM/LRDIMM-3DS: up to 256GB |
| Max. DIMM Frequency | RDIMM/ LRDIMM: max. 3200MHz |
| Voltage | 1.2V |
| Ethernet | |
| OCP slot | 1 OCP NIC 3.0 (PCIe4.0 x16) |
| Server Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 512MB |
| System BIOS | |
| BIOS Type | 64MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8 Support ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU Temperature Sensing MB/Card side Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Watchdog | Voltage Monitoring: +12V, +5V, +3.3V, VDDCR_CPU, VDDCR_SOC, VCCM_ABCD, VCCM_EFGH, +BAT, 3VSB, 5VSB, +12V_EDGE, +3V_EDGE |
| Supported OS | |
| OS | Microsoft® Windows: Server 2016 (64 bit) Server 2019 (64 bit) Linux: RedHat Enterprise Linux Server 8.0 (64 bit) / 7.6 (64 bit) CentOS 8.0 (64 bit) / 7.6 (64 bit) SUSE SLES 15.1 (64 bit) / 12.4 (64 bit) UBuntu 18.04.3 (64 bit) / 16.04.6 (64 bit) CITRIX Hypervisor 8.1.0 Virtual: VMWare® ESXi 6.5 u3 / 6.7 u3* *Due to no embedded LAN devices on this motherboard for the VMWare® installation, please use either the ASRock Rack OCP-series LAN Mezzanine cards or standard PCIe LAN cards for this OS installation. Please refer to our website for the latest OS support list. |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
