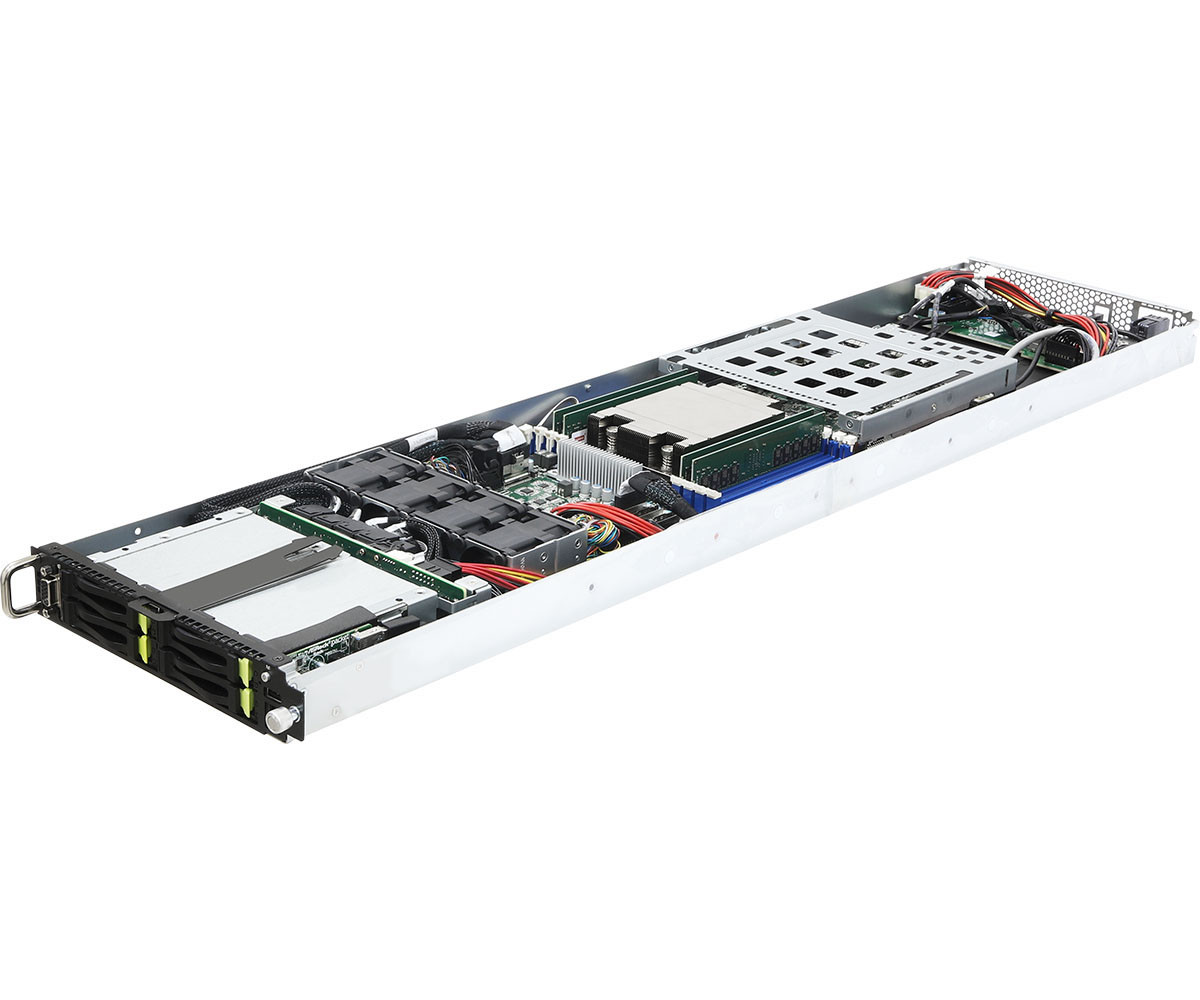

- 1U chassis with 4x 2.5'' SATA3 HDD/SSD or 4 x NVME
- AMD EPYC™ 7002/7001 series processor family
- Eight-Channel DDR4 3200/2933/2666 RDIMM, LRDIMM
- Supports 1 x IPMI LAN, OCP 3.0 LAN card x 1, 1 x VGA port, 1 x USB3.0 port
- Supports SFI LAN connector
- Supports 12V DC-IN port
| System | |
| Form Factor | - 1U Rackmount |
| Chassis Model | - Open19 chassis |
| Dimensions | - 901.7 mm x 212.3 mm x 41.65 mm (L/W/H, w/o ear) |
| Support MB | - Half width, 6.5'' × 17'' (ROMED8HM3/N19) |
| Node number | - 1 |
| Front Panel | |
| Buttons | - Power button |
| LEDs | - Power LED - HDD LED |
| I/O Ports | 1 DB15 (VGA), 1 Type-A (USB3.2 Gen1) |
| Rear Panel | |
| Data connector | - 1 Open19 Standard Data Connector |
| Backplane power connector | - 1 |
| External Drive Bay / Storage | |
| Front Side Drive Bay | - 4 x 2.5" SATA3 HDD/SSD or 4 x NVME |
| Power Supply | |
| Type | - NA, 12V DC-IN Port |
| System Fan | |
| Fan | - 4 x system fans (PF 4056 1BX) |
| Key part | |
| CPU(SoC) | - AMD 7402P 24C/48T, 2.8GHz |
| DIMM | - DDR4 2666 ECC RDIMM 16GB x4 |
| LAN Card | - 2 x 10GbE, Intel® x710-DA2 for OCP 3.0 |
| SSD | - 2 x 2.5'' SATA3 SSD Intel® S4510 240G- 2 x 2.5'' SATA3 SSD Intel® S4510 480G |
| Processor System | |
| CPU | - AMD EPYC™ 7002/7001 series processor family; AMD 7402P 24C/48T, 2.8GHz (Default) |
| System Memory | |
| Supported DIMM Quantity | - Eight-Channel DDR4 3200/2933/2666 RDIMM, LRDIMM, max. 512GB (RDIMM), 1024GB(LRDIMM); default DDR4 2666 ECC RDIMM 16GB x4 |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | - Non operation humidity: 20% ~ 90% ( Non condensing) |
