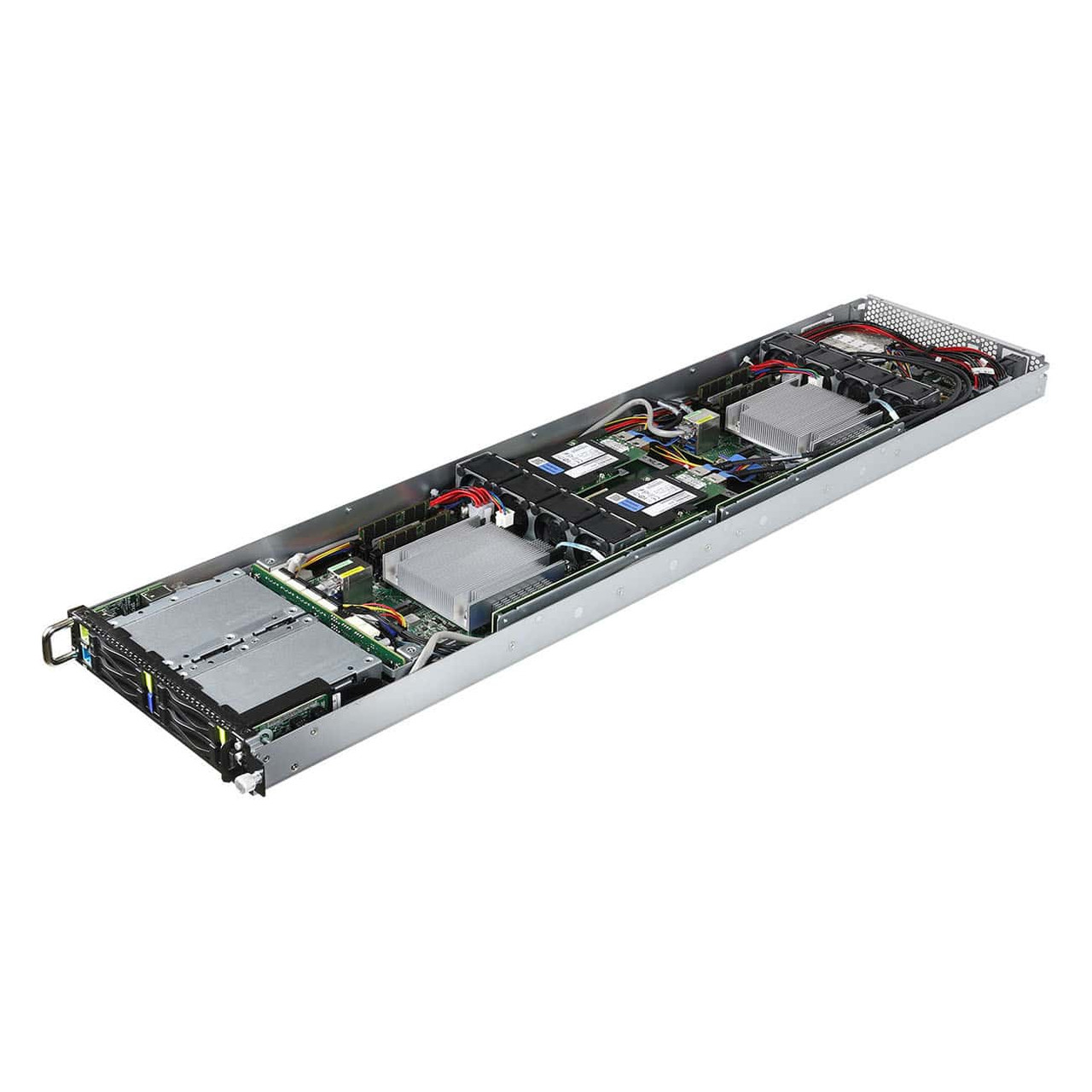

- 1U chassis with 4x 2.5'' SATA3 HDD/SSD
- Intel® Xeon® E-2100 Processors per node, 2 nodes per brick
- Dual Channel DDR4 2666/2400 ECC/non-ECC U SO-DIMM
- 3 x IPMI LAN (2 from Node1, Node2; 1 from CM board), 2 Intel® X710 LAN card
- Supports SFI LAN connector
- Supports 12V DC-IN port]
| System | |
| Form Factor | - 1U Rackmount |
| Chassis Model | - Open19 chassis |
| Dimensions | - 901.7 mm x 212.3 mm x 41.65 mm (L/W/H, w/o ear) |
| Support MB | - mini-ITX, 170.18mm(L) x 170.18mm(W) (E3C246D4I-NL x2; 2 Nodes) |
| Node number | - 2 |
| Front Panel | |
| Buttons | - Power button (2 ;1pc/per node) |
| LEDs | - Power LED - HDD LED |
| External Drive Bay / Storage | |
| Front Side Drive Bay | - 4x 2.5" SATA3 HDD/SSD (Green: from Node1, Blue: from Node2) |
| Power Supply | |
| Type | - NA, 12V DC-IN Port |
| System Fan | |
| Fan | - 8 x system fans (4028 fan, 4pcs per node, support Cold Redundant) |
| Key part | |
| CPU(SoC) | - Intel® E-2278G per node, 2pcs per brick |
| DIMM | - DDR4 2666 ECC SO-DIMM 16Gx2 per node, 4pcs per brick |
| LAN Card | - Intel® X710 2x10G (per node) ; 2 pcs per brick |
| SSD | - Intel® 2.5'' SATA3 SSD S4510 480G x 2 (per node); 4pcs per brick |
| Processor System | |
| CPU | - Intel® Xeon® E-2100 Processors; default Intel® E-2278G per node |
| System Memory | |
| Supported DIMM Quantity | - Supports DDR4 2666/2400 ECC/non-ECC U SO-DIMM, max. 64 GB; default DDR4 2666 ECC SO-DIMM 16Gx2 per node, 4pcs per brick |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | - Non operation humidity: 20% ~ 90% ( Non condensing) |
