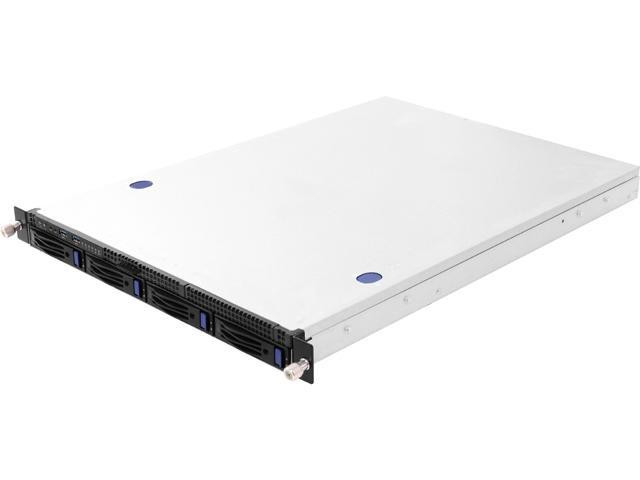

- 1U rackmount with 750W Redundant PSU (1+1)
- Dual Socket P (LGA3647), supports 2nd Gen. Intel® Xeon® Scalable Processors / Intel® Xeon® Scalable Processors
- 16 DIMM slots (2DPC/1DPC), supports DDR4 RDIMM, LRDIMM, Intel® Optane™ Persistent Memory, Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
- 4 hot-swap 3.5" SATA drive bays, 2 fixed 2.5" SATA drive bays
- 2 FH PCIe3.0 x16
- Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- 1 OCP 2.0 connector A1, B1, and C1 (PCIe3.0 x16 or KR x4) for OCP LAN support Type1
- 1 OCP 2.0 connector A2 and B2 (PCIe3.0 x16) for storage support proprietary card
- Remote management (IPMI)
Specifications
| System | |
| Form Factor | 1U Rackmount |
| Dimensions | 625 mm X 430 mm X 43.4 mm |
| Support MB | EP2C622D16NM |
| Front Panel | |
| Buttons | UID, PWR BTN, Reset BTN, NMI BTN |
| LEDs | LAN1/2, SYS, HDD Activity, PWR, UID |
| I/O Ports | 2 Type-A (USB3.2 Gen1) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 4 hot-swap 3.5" SATA drive bays 2 fixed 2.5" SATA drive bays |
| Front Side Backplane | 4-port SATA passive backplane |
| Internal Side | 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s), supports 2280/2260/2242/2230 form factor [PCH] |
| Power Supply | |
| Type | 1+1 Redundant PSU |
| Output Watts | 750W |
| Efficiency | 80-PLUS Platinum |
| System Fan | |
| Fan | 6 PWM hot-swap 40 x 56 mm fans |
| Processor System | |
| CPU | Supports 2nd Gen. Intel® Xeon® Scalable Processors / Intel® Xeon® Scalable Processors |
| Socket | Dual Socket P (LGA3647) |
| Chipset | Intel® C622 |
| System Memory | |
| Supported DIMM Quantity | 16 x 288-pin DDR4 DIMM slots |
| Supported Type | 6+6 Channel memory technology Supports DDR4 2933/2666/2400/2133 RDIMM/LRDIMM Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only) |
| Max. Capacity per DIMM | RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | 2 FH PCIe3.0 x16 |
| Storage Mezzanine | 1 OCP 2.0 connector A2 and B2 (PCIe3.0 x16) [CPU0] for storage support proprietary card (M3008/M3008S/M3108) |
| Ethernet | |
| Mezzanine | 1 OCP 2.0 connector A1, B1, and C1 (PCIe3.0 x16 or KR x4) for OCP LAN support Type1 |
| Server Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | Watch Dog NMI |
| Graphics | |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 16MB |
| Rear I/O | |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 1x RJ45 Gigabit Ethernet LAN port LAN Ports with LED (ACT/LINK LED and SPEED LED), dedicate for IPMI |
| System BIOS | |
| BIOS Type | 128Mb AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8 Support ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU Temperature Sensing System Temperature Sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Supported OS | |
| OS | OS Microsoft® Windows: Server 2012 R2 (64 bit) Server 2016 (64 bit) Linux: CentOS 6.8 (64 bit) / 7. 2 (64 bit) (only supports AHCI mode) SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP1 (64 bit) FreeBSD 11 (64 bit) Fedora Core 24 (64 bit) Ubuntu 16.04/15.10 (64 bit) RedHat Enterprise Linux Server 6.8 (64 bit) / 7.2 (64 bit) Virtual: VMWare® ESXi 6.5 * Please refer to our website for the latest OS support list. |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
