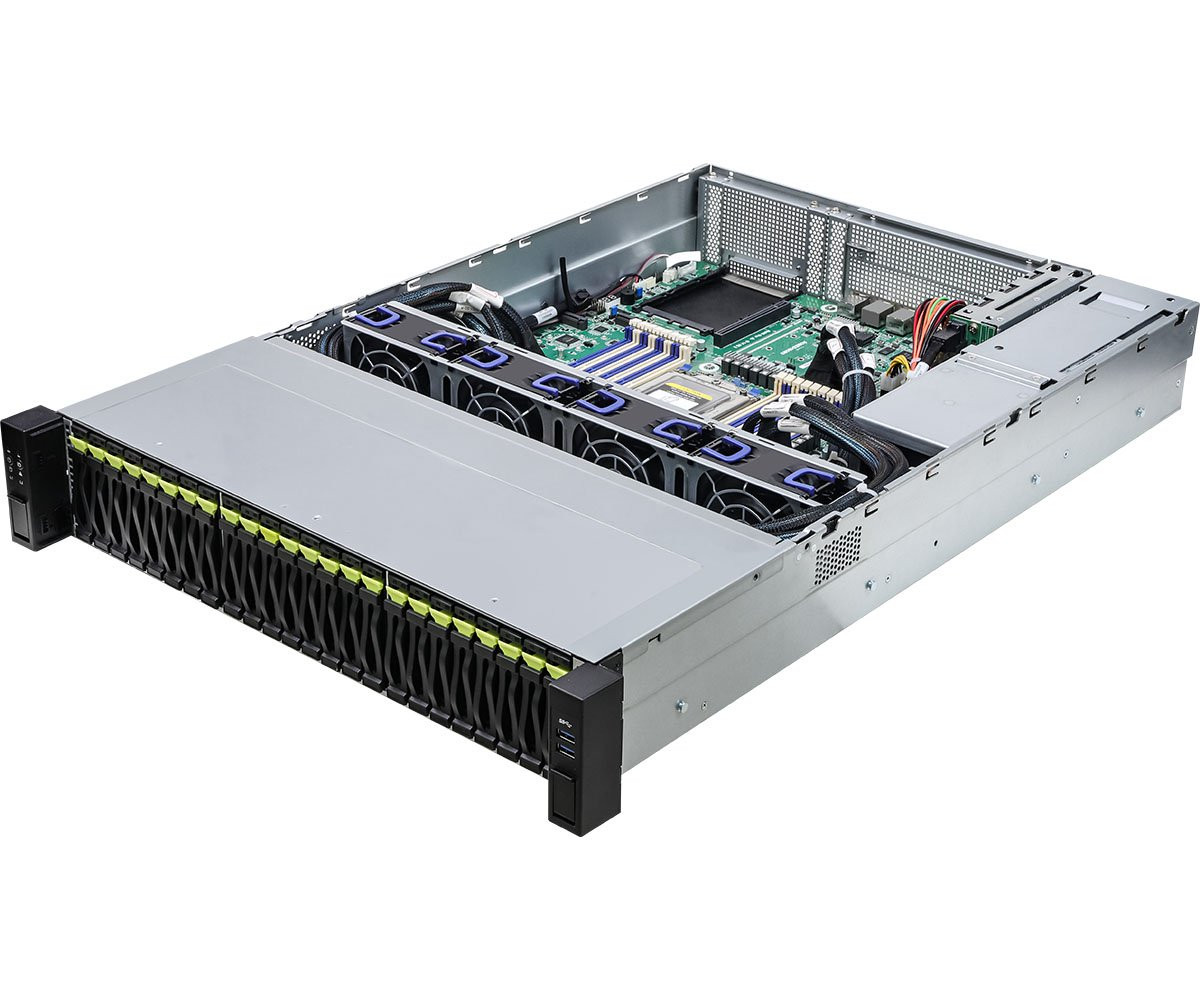

- 2U Rackmount with 1+1 1200W Redundant PSU
- Single Socket SP3 (LGA4094), supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 series processors
- 16 DIMM slots (2DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS
- 1 low-profile PCIe4.0 x8
- 24 Hot-swap 2.5" NVMe drive bays
- 2 Hot-swap 2.5" SATA/SAS drive bays
- Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
- 2 RJ45 (1GbE) by Intel® i350-AM2
- 1 OCP NIC 3.0 (PCIe4.0 x16)
- Remote Management (IPMI)
Specifications
| System | |
| Form Factor | 2U Rackmount |
| Dimensions | 660mm x 438mm x 87.5mm |
| Support MB | ROMED16QM3 |
| Front Panel | |
| Buttons | Power button w/ LED Reset button NMI button UID button w/ LED |
| LEDs | System fault LED HDD activity LED LAN1 / LAN2 LED |
| I/O Ports | 2 Type-A (USB3.2 Gen1) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 24 Hot-swap 2.5" drive bays, Supports 24 NVMe (PCIe x4) drives |
| Front Side Backplane | one 24-port NVMe/SAS/SATA passive backplane |
| Rear Side | 2 Hot-swap 2.5'' drive bays, supports 2 SAS/SATA Drives with optional HBA/RAID adapter card |
| Rear Side Bakplane | one 2-port SAS/SATA passive backplane |
| Internal Side | 2 M.2 (PCIe4.0 x4/SATA) supports 22110/2280 form factor |
| Power Supply | |
| Type | 1+1 CRPS |
| Output Watts | 1200W |
| Efficiency | 80-PLUS Platinum |
| AC Input | Lowline: 100-127V, Highline: 200-240V |
| System Fan | |
| Fan | 4 Hot-swap 80x38mm fans |
| Processor System | |
| CPU | Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors *A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology |
| Socket | 1 SP3 (LGA4094) |
| Thermal Design Power | 280W |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 16 DIMM slots (2DPC) |
| Supported Type | DDR4 288-pin RDIMM, LRDIMM |
| Max. Capacity per DIMM | RDIMM: up to 64GB, LRDIMM: up to 256GB |
| Max. DIMM Frequency | RDIMM/ LRDIMM: up to 3200 MHz |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 8 | 1 low-profile PCIe4.0 x8 |
| TPM | |
| TPM support | 1 (17-pin, LPC) |
| Ethernet | |
| Mezzanine | 1 OCP NIC 3.0 (PCIe4.0 x16) |
| Server Management | |
| BMC Controller | ASPEED AST2500: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 256MB |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 |
| Serial Port | 1 DB9 |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) by Intel® i350-AM2 1 dedicated IPMI LAN |
| LED Indicators | |
| 80 Debug Port LED | 1 |
| System BIOS | |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU Temperature Sensing System Temperature Sensing Card Side Temperature Sensing |
| Fan | Fan Tachometer Fan Multi-Speed Control |
| Voltage | Vsoc,Vcpu, VCCM, VPPM, +1.8V, +3V,+5V, +12V, BAT, +1.8VSB, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | - Non operation humidity: 20% ~ 90% ( Non condensing) |
