Unleash Unparalleled Performance and Efficiency

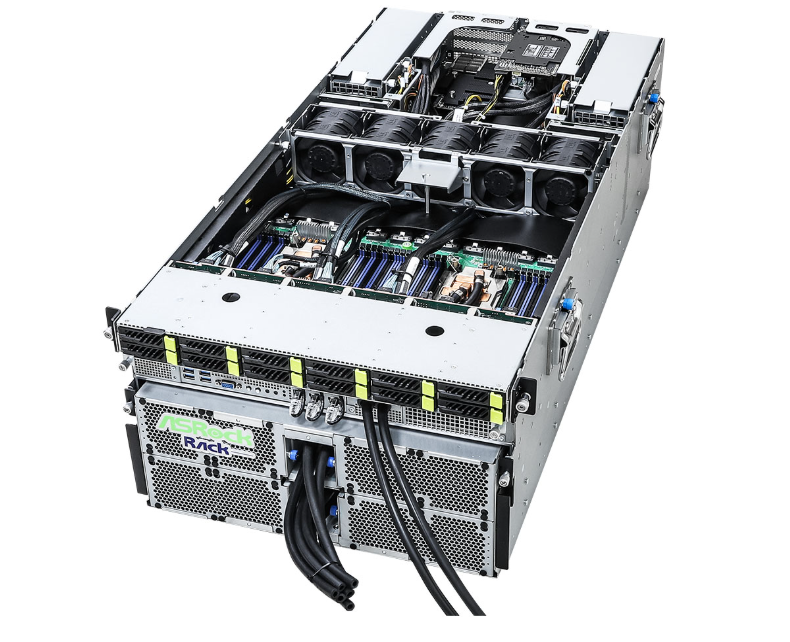

Introducing the ASRock Rack 6U8X-GNR2/DLC, a powerful and versatile 6U rackmount server engineered to elevate your data center operations. With support for dual Intel Xeon Scalable processors and a robust feature set, this server delivers exceptional performance, energy efficiency, and scalability to meet the demands of modern businesses.
Exceptional Computing Power
Experience lightning-fast processing speeds with support for two Intel Xeon Scalable processors (up to 28 cores per processor) in an LGA 4710 socket. The 6U8X-GNR2/DLC is optimized for demanding workloads, including virtualization, data analysis, and high-performance computing.
High-Capacity Memory for Demanding Applications
Equip your server with up to 4TB of DDR5 RDIMM memory across 16+16 DIMM slots (2DPC), ensuring ample capacity for memory-intensive tasks. The server's support for DDR5 technology delivers faster data transfer rates and improved energy efficiency compared to previous generations.
Unmatched Storage Versatility
The 6U8X-GNR2/DLC provides flexible storage options to meet your specific needs. With support for various drive configurations, you can customize your storage solution for optimal performance and capacity.
High-Efficiency Power Supply
Reduce your energy costs and minimize your environmental impact with the server's 80-PLUS Titanium certified power supply. This highly efficient power supply ensures maximum power delivery while minimizing energy waste.
Features:
- 6U Rackmount Form Factor
- Dual Socket E2 (LGA 4710), supports Intel Xeon 6700E-series processors
- 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
- 6+2 Expansion Slots
- 80-PLUS Titanium, 3000W CRPS
Benefits:
- Exceptional Performance: Dual Intel Xeon Scalable processor support for demanding workloads.
- High Memory Capacity: Up to 4TB of DDR5 RDIMM memory for memory-intensive applications.
- Storage Versatility: Flexible storage options to meet specific needs.
- Energy Efficiency: 80-PLUS Titanium certified power supply for reduced energy costs.
- Scalability: Ample expansion slots for future growth.
Specifications
| System | |
| Form Factor | 6U Rackmount |
| Dimensions | 930 x 448 x 264.7mm (36.6'' x 17.6'' x 10.4'') |
| Support MB | GNR2D32G-2L+ |
| Front Panel | |
| Buttons | Power button w/ LED, Reset button, NMI button, UID button |
| LEDs | System fault LED, HDD activity LED |
| I/O Ports | 2 RJ45 (1GbE) by Intel i350, shares with Rear IO 1 dedicated IPMI, shares with Rear IO 4 Type-A (USB3.2 Gen1) 1 DB15 (VGA) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch 4 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from CPU |
| Internal Side | 1 M-key (PCIe5.0 x2), supports 22110/2280 form factor [CPU0] |
| Power Supply | |
| Type | 6+2 CRPS |
| Output Watts | 3002.4W @ 220-240Vac input, 2900W @200-220Vac input, 1250W @100-127Vac input |
| Efficiency | 80-PLUS Titanium |
| AC Input | Low-line: 100-127Vrms, 50/60Hz ; High-line: 200-240Vrms, 50/60Hz |
| System Fan | |
| Fan | 21 PWM Hot-swap 80x80 mm fans |
| Processor System | |
| CPU | Supports Intel® Xeon® 6700E-series processors |
| Socket | 1+1 Socket E2 (LGA 4710) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Supported Type | DDR5 RDIMM |
| Max. Capacity per DIMM | RDIMM: 128GB |
| Max. DIMM Frequency | RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | Rear: 8 HHHL PCIe5.0 x16 5 FHHL PCIe5.0 x16 |
| Ethernet | |
| Additional GbE Controller | Intel® i350: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 UID button |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) by Intel® i350, shares with Front Panel 1 dedicated IPMI, shares with Front Panel |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjus |
| Voltage | P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
