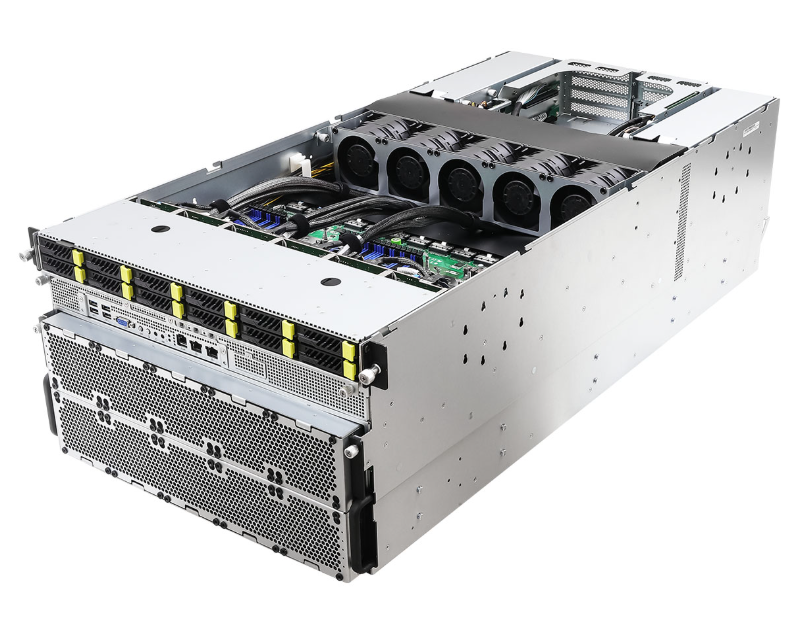

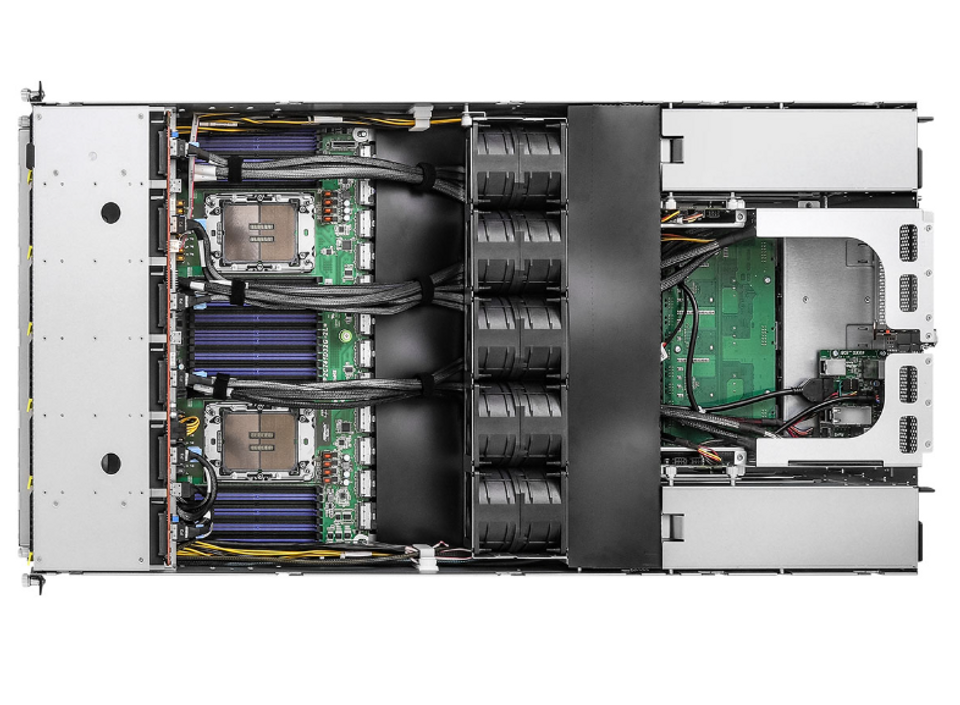

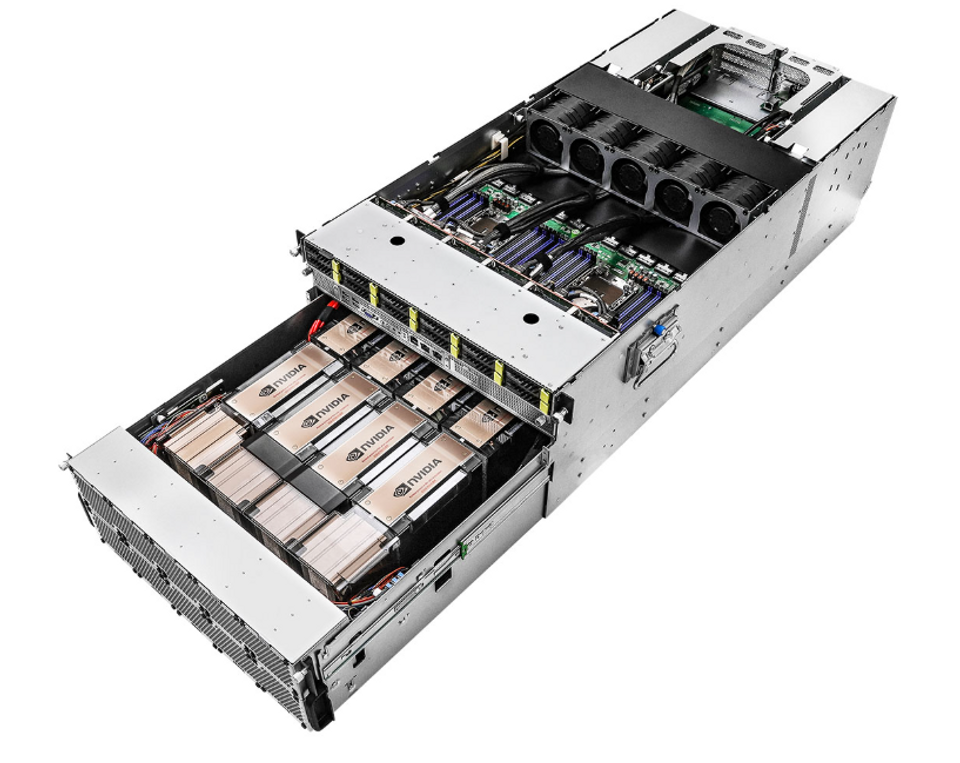

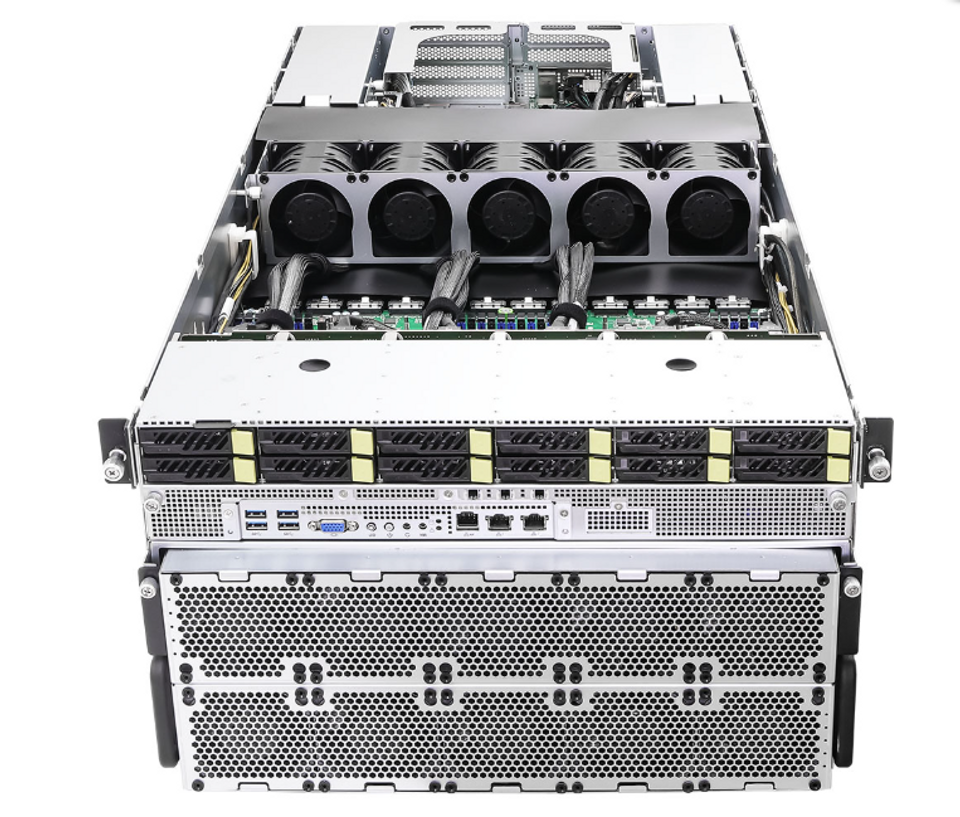

Asrock Rack 6U8X-GNR2 H100: Unleash Unparalleled Server Performance
Experience the epitome of power and efficiency with the Asrock Rack 6U8X-GNR2 H100, a 6U rackmount server meticulously engineered for demanding enterprise workloads. This server is your gateway to unrivaled processing power, exceptional energy efficiency, and remarkable expandability.
Unleash the Powerhouse Within:
At the heart of this server lies support for dual Intel® Xeon® Scalable processors (formerly codenamed Cooper Lake), accommodating two Intel® Xeon® 6700E-series processors. This translates to an incredible processing capability that can handle even the most data-intensive tasks with ease.
Maximize Memory Capacity and Bandwidth:
With support for 16 DIMM slots per socket (2DPC), totaling 32 DIMMs, and compatibility with DDR5 RDIMMs, the 6U8X-GNR2 H100 empowers you with vast memory capacity and lightning-fast bandwidth. This ensures seamless multitasking, effortless handling of large datasets, and overall enhanced system responsiveness.
Exceptional Energy Efficiency:
Equipped with a 3000W CRPS power supply boasting an impressive 80-PLUS Titanium certification, this server guarantees exceptional energy efficiency. This not only reduces your operational costs but also minimizes your carbon footprint, contributing to a greener computing experience.
Features:
- 6U Rackmount Form Factor
- Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
- 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
- 6+2 Expansion Slots
- 3000W CRPS, 80-PLUS Titanium
Elevate Your Enterprise Computing Experience:
The Asrock Rack 6U8X-GNR2 H100 is your ultimate solution for mission-critical applications, virtualization, data centers, and high-performance computing environments. Its exceptional processing power, vast memory capacity, and remarkable energy efficiency make it the ideal choice for organizations seeking to optimize their IT infrastructure and drive unparalleled performance.
Specifications
| System | |
| Form Factor | 6U Rackmount |
| Dimensions | 930 x 448 x 264.7mm (36.6'' x 17.6'' x 10.4'') |
| Support MB | GNR2D32G-2L+ |
| Front Panel | |
| Buttons | Power button w/ LED, Reset button, NMI button, UID button |
| LEDs | System fault LED, HDD activity LED |
| I/O Ports | 2 RJ45 (1GbE) by Intel i350, shares with Rear IO 1 dedicated IPMI, shares with Rear IO 4 Type-A (USB3.2 Gen1) 1 DB15 (VGA) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch 4 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from CPU |
| Internal Side | 1 M-key (PCIe5.0 x2), supports 22110/2280 form factor [CPU0] |
| Power Supply | |
| Type | 6+2 CRPS |
| Output Watts | 3002.4W @ 220-240Vac input, 2900W @200-220Vac input, 1250W @100-127Vac input |
| Efficiency | 80-PLUS Titanium |
| AC Input | Low-line: 100-127Vrms, 50/60Hz ; High-line: 200-240Vrms, 50/60Hz |
| System Fan | |
| Fan | 21 PWM Hot-swap 80x80 mm fans |
| Processor System | |
| CPU | Supports Intel® Xeon® 6700E-series Processors |
| Socket | 1+1 Socket E2 (LGA 4710) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Supported Type | Supports DDR5 RDIMM |
| Max. Capacity per DIMM | RDIMM: 128GB |
| Max. DIMM Frequency | RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | Rear: 8 HHHL PCIe5.0 x16 5 FHHL PCIe5.0 x16 |
| Ethernet | |
| Additional GbE Controller | Intel® i350: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 UID button |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) by Intel® i350, shares with Front Panel 1 dedicated IPMI, shares with Front Panel |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachomete CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
