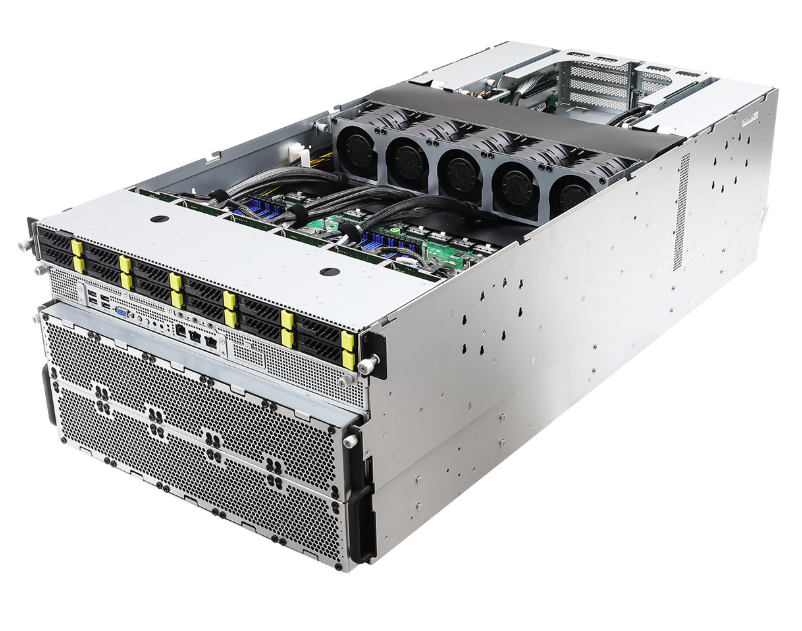

ASRock Rack 6U8X-GNR2 H200: Unleash Unrivaled Computing Power
Experience the epitome of server performance and efficiency with the ASRock Rack 6U8X-GNR2 H200, a powerhouse designed to elevate your data center operations.
Unleash the Power of Dual-Socket Performance
This 6U rackmount server is engineered for demanding workloads, supporting two Intel® Xeon® Scalable processors (formerly codenamed Cooper Lake) in an LGA 4189 socket configuration. Harness the raw processing power of up to 40 cores per processor, enabling you to effortlessly handle complex tasks, virtualization, and data-intensive applications.
Exceptional Memory Capacity and Bandwidth
With support for up to 16 DIMM slots per processor (2DPC), totaling an impressive 32 DIMMs, the 6U8X-GNR2 H200 provides unparalleled memory capacity. Leverage the latest DDR4 memory technology with speeds of up to 3200MHz to eliminate bottlenecks and accelerate data processing speeds.
High-Performance Storage and Expansion
This server offers extensive storage options to meet your specific needs. With support for up to 8 hot-swappable SATA/SAS hard drives and multiple M.2 NVMe SSD slots, you can configure the perfect storage solution for your applications, ensuring rapid data access and high availability.
Efficient Power and Thermal Management
Equipped with a high-efficiency 80 PLUS Titanium certified power supply, the 6U8X-GNR2 H200 minimizes power consumption and reduces operating costs. The server's advanced thermal design, featuring intelligent fan control, ensures optimal cooling and quiet operation.
Features:
- Supports two Intel® Xeon® Scalable processors (LGA 4189)
- Up to 32 DIMM slots (2DPC), supports DDR4-3200 memory
- Up to 8 hot-swappable SATA/SAS hard drive bays
- Multiple M.2 NVMe SSD slots
- 80 PLUS Titanium certified power supply
- Advanced thermal design with intelligent fan control
- Comprehensive management features
Specifications
| System | |
| Form Factor | 6U Rackmount |
| Dimensions | 930 x 448 x 264.7mm (36.6'' x 17.6'' x 10.4'') |
| Support MB | GNR2D32G-2L+ |
| Front Panel | |
| Buttons | Power button w/ LED, Reset button, NMI button, UID button |
| LEDs | System fault LED, HDD activity LED |
| I/O Ports | 2 RJ45 (1GbE) by Intel i350, shares with Rear IO 1 dedicated IPMI, shares with Rear IO 4 Type-A (USB3.2 Gen1) 1 DB15 (VGA) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch 4 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from CPU |
| Internal Side | 1 M-key (PCIe5.0 x2), supports 22110/2280 form factor [CPU0] |
| Power Supply | |
| Type | 6+2 CRPS |
| Output Watts | 3002.4W @ 220-240Vac input, 2900W @200-220Vac input, 1250W @100-127Vac input |
| Efficiency | 80-PLUS Titanium |
| AC Input | Low-line: 100-127Vrms, 50/60Hz ; High-line: 200-240Vrms, 50/60Hz |
| System Fan | |
| Fan | 21 PWM Hot-swap 80x80 mm fans |
| Processor System | |
| CPU | Supports Intel® Xeon® 6700E-series processors |
| Socket | 1+1 Socket E2 (LGA 4710) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Supported Type | Supports DDR5 RDIMM |
| Max. Capacity per DIMM | RDIMM: 128GB |
| Max. DIMM Frequency | RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | Rear: 8 HHHL PCIe5.0 x16 5 FHHL PCIe5.0 x16 |
| Ethernet | |
| Additional GbE Controller | Intel® i350: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 UID button |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) by Intel® i350, shares with Front Panel 1 dedicated IPMI, shares with Front Panel |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
