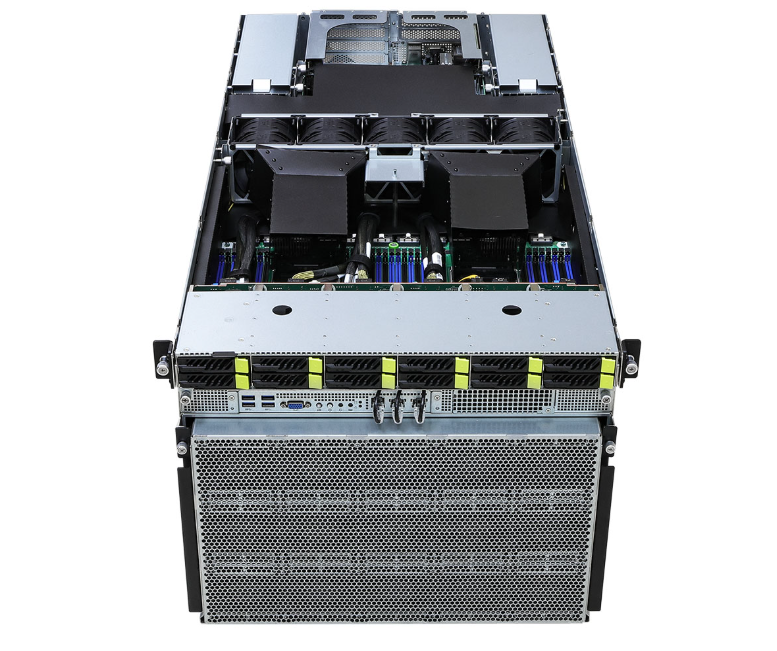

Asrock Rack 8U8X-GNR2 8U Rackmount Server
Experience unparalleled performance and efficiency with the Asrock Rack 8U8X-GNR2, a powerful and reliable 8U rackmount server designed for demanding enterprise workloads. This server is engineered to deliver exceptional computing power, scalability, and energy efficiency, making it the ideal choice for data centers, virtualization, and high-performance computing environments.
Unleash Uncompromising Performance
At the heart of the 8U8X-GNR2 lies dual sockets supporting Intel® Xeon® 6700E-series processors, providing massive processing power for the most demanding applications. With support for up to 16+16 DIMM slots (2DPC) and DDR5 RDIMM, RDIMM-3DS memory technology, this server ensures lightning-fast data access and processing speeds.
Exceptional Energy Efficiency
The 8U8X-GNR2 features a highly efficient 6+6, 80-PLUS Titanium, 3000W CRPS power supply. This cutting-edge power solution minimizes energy waste and reduces operating costs, making it an environmentally responsible choice for your business.
Features:
- 8U Rackmount Form Factor
- Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
- 16+16 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
- 6+6, 80-PLUS Titanium, 3000W CRPS
Specifications
| System | |
| Form Factor | 8U Rackmount |
| Dimensions | 930 x 448 x 353.6mm (36.6'' x 17.6'' x 13.9'') |
| Support MB | GNR2D32G-2L+ |
| Front Panel | |
| Buttons | Power button w/ LED, Reset button, NMI button, UID button |
| LEDs | System fault LED, HDD activity LED |
| I/O Ports | 2 RJ45 (1GbE) by Intel i350, shares with Rear IO 1 dedicated IPMI, shares with Rear IO 4 Type-A (USB3.2 Gen1) 1 DB15 (VGA) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch 4 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from CPU |
| Internal Side | 1 M-key (PCIe5.0 x2), supports 22110/2280 form factor [CPU0] |
| Power Supply | |
| Type | 6+6 CRPS |
| Output Watts | 3002.4W @ 220-240Vac input, 2900W @200-220Vac input, 1250W @100-127Vac input |
| Efficiency | 80-PLUS Titanium |
| AC Input | Low-line: 100-127Vrms, 50/60Hz ; High-line: 200-240Vrms, 50/60Hz |
| System Fan | |
| Fan | 29 PWM Hot-swap 80x80 mm fans |
| Processor System | |
| CPU | Supports Intel® Xeon® 6700E-series Processors |
| Socket | 1+1 Socket E2 (LGA 4710) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Supported Type | Supports DDR5 RDIMM |
| Max. Capacity per DIMM | RDIMM: 128GB |
| Max. DIMM Frequency | RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | Rear: 8 HHHL PCIe5.0 x16 5 FHHL PCIe5.0 x16 |
| Ethernet | |
| Additional GbE Controller | Intel® i350: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 UID button |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) by Intel® i350, shares with Front Panel 1 dedicated IPMI, shares with Front Panel |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
