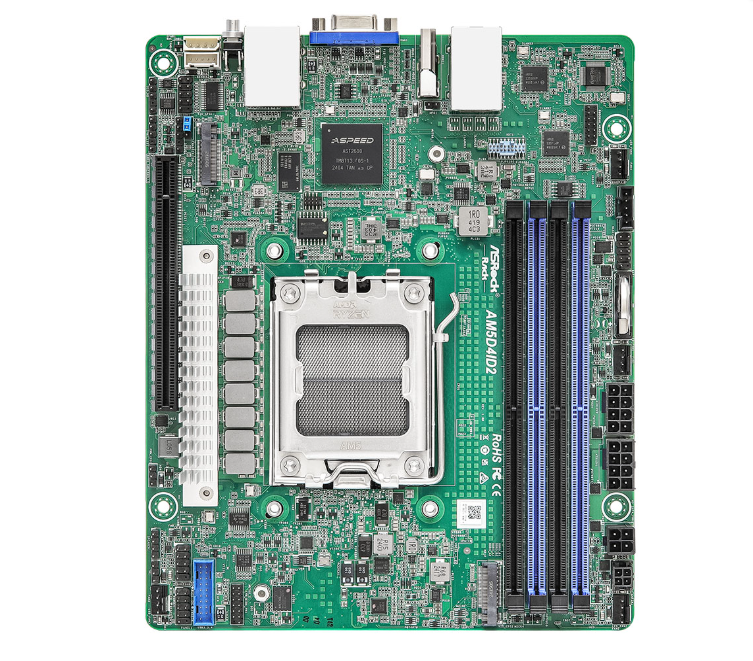

Unleash Next-Gen Performance with the ASRock Rack AM5D4ID2 Motherboard
Experience the epitome of power and versatility with the ASRock Rack AM5D4ID2 motherboard, engineered to propel your business-critical applications and demanding workloads to new heights. Designed for professionals seeking uncompromising performance, this motherboard seamlessly blends cutting-edge technologies with robust reliability.
Unmatched Processing Prowess
Harness the raw power of AMD's latest processor architectures with support for:
- AMD EPYC™ 4004 Series Processors
- AMD Ryzen™ 9000 Series Processors
- AMD Ryzen™ 8000 Series Processors
- AMD Ryzen™ 7000 Series Processors
This extensive compatibility ensures you can select the ideal processor to meet your specific performance requirements, whether you're tackling complex simulations, handling massive datasets, or driving demanding virtualized environments.
Maximize Memory Bandwidth
Fuel your applications with lightning-fast DDR5 memory, leveraging four DIMM slots (2DPC) that support:
- DDR5 ECC UDIMM
- DDR5 non-ECC UDIMM
This configuration provides ample capacity and bandwidth to handle data-intensive tasks with ease, ensuring your system operates at peak efficiency.
Compact Design, Immense Potential
Don't let space constraints limit your ambitions. The AM5D4ID2's compact Deep mini-ITX form factor (6.7" x 8.2") makes it ideal for space-constrained environments without compromising on features or performance. Build powerful, compact systems that fit seamlessly into your existing infrastructure.
Features:
- Supports AMD EPYC™ 4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
- Deep mini-ITX Form Factor (6.7" x 8.2")
- 4 DIMM Slots, Supports DDR5 ECC/non-ECC UDIMM
Elevate Your Computing Experience
The ASRock Rack AM5D4ID2 motherboard is your gateway to unparalleled performance, reliability, and versatility. Equip your business with the tools it needs to thrive in today's demanding digital landscape.
Specifications
| Physical Status | |
| Form Factor | Deep mini-ITX |
| Dimensions | 6.7" x 8.2" |
| Processor System | |
| CPU | Supports AMD EPYC™ 4004 and AMD Ryzen™ 9000/8000/7000 Series Processors |
| Socket | Single Socket AM5 (LGA 1718) |
| Thermal Design Power | 120W (Air)/170W (Liquid) |
| Chipset | KNOLL3 X300 |
| System Memory | |
| Supported DIMM Quantity | 4 DIMM slots (2DPC) |
| Supported Type | DDR5 288-pin ECC/non-ECC UDIMM |
| Max. Capacity per DIMM | 48GB |
| Max. DIMM Frequency | 5200 MHz (1DPC); 3600 MHz (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | PCIe4.0 x16 [CPU] |
| Other PCIe Expansion Connectors | |
| M.2 slot | 2 M-key (PCIe4.0 x4), supports 2280 form factor [CPU] |
| Ethernet | |
| Additional GbE Controller | Intel® i210: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA) AMD Processors with Graphics: 1 HDMI |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA), 1 HDMI |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in |
| Other Power Connectors | 1 (4-pin) for HDD power when using 12V DC-in power source |
| Auxiliary Panel Header | 1 (9-pin): chassis intrusion, system fault LED, LAN activity LED |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| Speaker Header | 1 |
| Fan Header | 4 (4-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 |
| Others | 1 UID header (4-pin), 1 NCSI header (4-pin), 1 IPMI LAN LED header (4-pin), 1 80 debug port header (13-pin) |
| USB 3.2 (Gen1) Header | 1 header (19-pin, 2 USB3.2 Gen1) |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| Fan Fail LED | 4 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 5.1 compliance wake up events, SMBIOS 2.3 |
| Hardware Monitor | |
| Temperature | CPU, DDR, MB, Card Side |
| Fan | Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) |
| Voltage | 3VSB, 5VSB, VCPU, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V |
| Supported OS | |
| OS | Microsoft® Windows: Windows® 10 (64 bit) Windows® 11 (64 bit) Linux: UBuntu 22.04.2 (64 bit) * On the Windows® system, RAID mode supports UEFI Boot only. * The Linux system doesn't support RAID mode. |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
