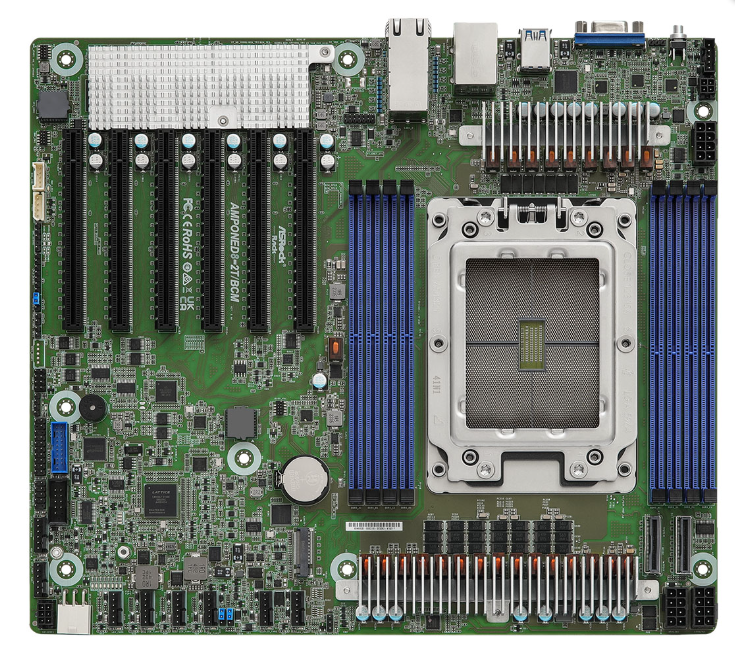

Unleash Unparalleled Performance and Versatility with the ASRock Rack AMPONED8-2T/BCM Motherboard
Experience the perfect blend of power, flexibility, and reliability with the ASRock Rack AMPONED8-2T/BCM motherboard. Engineered for professionals and enthusiasts alike, this micro-ATX powerhouse is designed to elevate your computing experience to unprecedented heights.
Unleash the Power Within:
Harness the immense processing prowess of the latest AMD EPYC™ 4004 and AMD Ryzen 9000/8000/7000 series processors. With support for up to 4 DIMM slots (2DPC) and DDR5 ECC/non-ECC UDIMM memory, experience lightning-fast speeds and seamless multitasking capabilities, effortlessly handling even the most demanding applications.
Exceptional Versatility:
Enjoy unparalleled flexibility with support for both ATX PSUs and 12V DC-in power sources, adapting effortlessly to diverse environments. The compact micro-ATX form factor (9.6" x 9.6") ensures seamless integration into a wide range of systems, from compact workstations to high-performance servers.
Features You'll Love:
- Supports AMD EPYC™ 4004 and AMD Ryzen 9000/8000/7000 series Processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- Micro-ATX Form Factor (9.6" x 9.6")
- Support for ATX PSU or 12V DC-in
Specifications
| Physical Status | |
| Form Factor | CEB |
| Dimensions | 12" x 10.5" (305 mm x 267 mm) |
| Processor System | |
| CPU | Supports AmpereOne family Processors |
| Socket | 1 Socket (LGA-5964) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (1DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | 512GB |
| Max. DIMM Frequency | 5200MHz |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT6: FL PCIe5.0 x16 SLOT5: FL PCIe5.0 x16 SLOT4: FL PCIe5.0 x16 SLOT3: FL PCIe5.0 x16 SLOT2: FL PCIe5.0 x16 SLOT1: FL PCIe5.0 x16 |
| TPM | |
| TPM support | 1 (13-pin, SPI) |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe5.0 x4); support 22110/2280 form factor |
| Others | 2 MCIO (PCIe5.0 x8) |
| Ethernet | |
| Additional GbE Controller | Broadcom BCM57416: 2 RJ45 (10GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA) |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 4 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE), 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) |
| Other Power Connectors | 1 (6-pin) for HDD power |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| Speaker Header | 1 (4-pin) |
| Buzzer | 1 |
| Fan Header | 8 (6-pin) |
| TPM Header | 1 (13-pin, SPI) |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| LED Indicators | |
| Standby PWR LED | 1 |
| Fan Fail LED | 8 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512 Mb (64MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4, SMBIOS 3.6.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB Temperature sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | VCORE, VD2D, VSOC, AVDD, AVDDH, 3V, 5V, 12V, +BAT, 3VSB, 5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
