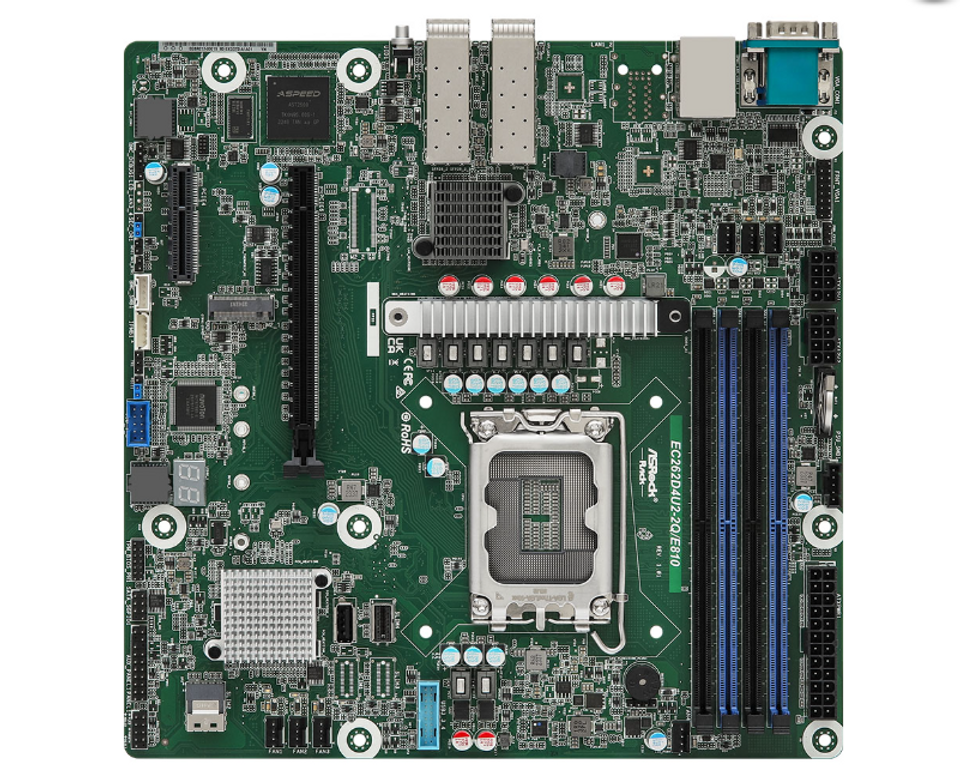

Asrock Rack EC262D4U2-2Q/E810 Motherboard - Power Your Business with Unmatched Performance and Reliability
Introducing the Asrock Rack EC262D4U2-2Q/E810 Motherboard, a powerful and reliable foundation for your business-critical applications. This micro-ATX motherboard is engineered to deliver exceptional performance, scalability, and stability, making it the ideal choice for a wide range of server and workstation workloads.
Unleash the Power of Intel Xeon
At the heart of the EC262D4U2-2Q/E810 lies support for Intel Xeon E-2400 series processors. These processors, renowned for their exceptional performance and efficiency, empower your system to handle demanding tasks with ease. Whether you're running virtualization, data analysis, or high-performance computing applications, the EC262D4U2-2Q/E810 provides the processing power you need.
Exceptional Expandability for Future Growth
The EC262D4U2-2Q/E810 offers impressive expandability options, ensuring your system can grow alongside your business needs. With four DIMM slots supporting up to 128GB of DDR4 ECC memory, you can effortlessly handle memory-intensive applications and workloads. The motherboard also features one PCIe5.0 x16 slot and one PCIe4.0 x4 slot, providing ample bandwidth for high-performance graphics cards, network adapters, and other expansion cards.
Reliable Operation for Business Continuity
Designed for 24/7 operation, the EC262D4U2-2Q/E810 incorporates robust features to ensure maximum uptime and reliability. The motherboard undergoes rigorous testing and validation to meet the demanding requirements of enterprise environments. Its compact micro-ATX form factor (9.6" x 9.6") makes it an excellent choice for space-constrained deployments.
Key Features:
- Supports Intel Xeon E-2400 series and Intel Pentium Gold G7400/G7400T processors
- Micro-ATX form factor (9.6" x 9.6")
- 4 DIMM slots (2DPC) supporting up to 128GB of DDR4 ECC memory
- 1 PCIe5.0 x16 slot for high-performance graphics cards and expansion cards
- 1 PCIe4.0 x4 slot for additional expansion options
Specifications
| Physical Status | |
| Form Factor | Micro-ATX |
| Dimensions | 9.6'' x 9.6'' (244 mm x 244 mm) |
| Processor System | |
| CPU | Supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors |
| Socket | Single Socket V1 (LGA 1700) |
| Thermal Design Power | 95W |
| Chipset | Intel® C262 |
| System Memory | |
| Supported DIMM Quantity | 4 DIMM slots (2DPC) |
| Supported Type | Supports DDR5 288-pin ECC UDIMM |
| Max. Capacity per DIMM | 32GB |
| Max. DIMM Frequency | 4400MT/s (2SPC - 1DIMM) / 4000MT/s (2SPC - 2DIMM 1R) / 3600MT/s (2SPC - 2DIMM 2R) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT6: PCIe5.0 x16 [CPU] |
| PCIe x 4 | SLOT4: PCIe4.0 x4 [PCH] |
| TPM | |
| TPM support | 1 (13-pin, SPI) |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe4.0 x4 or SATA 6Gb/s); support 2280/2260/2242/2230 form factor [PCH] |
| Others | 1 SlimSAS (PCIe4.0 x4) [CPU] 1 SlimSAS (4 SATA 6Gb/s) [PCH] |
| SATA/SAS Storage | |
| PCH Built-in Storage | Intel® C262 (5 SATA 6Gb/s; RAID 0/1/5/10): 1 SlimSAS, 1 M.2 |
| Ethernet | |
| Additional GbE Controller | 2 SFP28 (25GbE) by Intel® E810-XXVAM2 |
| Server Management | |
| BMC Controller | ASPEED AST2600: iKVM, vMedia support |
| IPMI Dedicated GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA) |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA) |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 2 Type A (USB3.2 Gen1) |
| RJ45 | 1 dedicated IPMI |
| Others | 2 SFP28 (25GbE) |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| Speaker Header | 1 (4-pin) |
| Buzzer | 1 |
| Fan Header | 7 (4-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| SGPIO Header | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| USB 3.2 (Gen1) Header | 1 header (19-pin, 2 USB3.2 Gen1) |
| USB 2.0 Header | 1 header (9-pin, 2 USB2.0) |
| Type A USB 2.0 Port | 1 vertical Type-A (USB2.0) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 7 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI 256Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side, DDR5, PCH, M.2, TR1 Temperature sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | 3VSB, 5VSB, CPU_VCORE, VCCIN_AUX, VDD2, 1.05V_ PCH, 0V82SB_PCH, DVDD, AVDD, 1V8SB, VCCSA, BAT, 3V, 5V, 12V |
| Supported OS | |
| OS | Microsoft® Windows: - Windows® Server 2022 - Azure Stack HCI Linux: - RHEL 8.5 - SLES 15 SP3 - Ubuntu 21.04 LTS Hypervisor: - VMware ESXi 8.0 u1 - Linux KVM (Linux OSes) - Hyper-V (Windows® Server) |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
