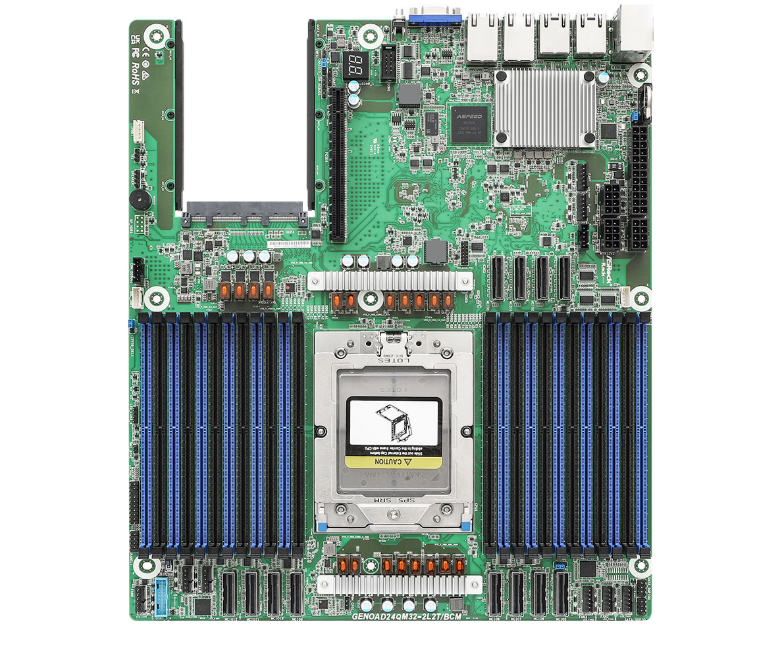

ASRock Rack GENOAD24QM32-2L2T/BCM Motherboard
Unlock unparalleled performance and scalability for your demanding server workloads with the ASRock Rack GENOAD24QM32-2L2T/BCM Motherboard. This exceptional motherboard is engineered to maximize the capabilities of AMD EPYC 9005*/9004 (with AMD 3D V-Cache Technology) and 97x4 series processors, delivering exceptional computing power for data centers, virtualization, and high-performance computing applications.
Unleash Memory Performance
With support for 24 DIMM slots (2DPC) of DDR5 RDIMM and RDIMM-3DS memory, this motherboard provides massive memory capacity and bandwidth. Experience lightning-fast data access and processing, empowering your applications to perform at their peak.
Exceptional Expansion Capabilities
The EEB (12" x 14") form factor provides ample space for expansion, accommodating a wide range of peripherals and components. The single-socket SP5 (LGA 6096) design ensures compatibility with the latest AMD EPYC processors, guaranteeing long-term relevance and performance.
Features:
- 24 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
- EEB (12" x 14") form factor
- Single Socket SP5 (LGA 6096)
- Supports AMD EPYC 9005*/9004 (with AMD 3D V-Cache Technology) and 97x4 series processors
Elevate Your Server Infrastructure
The ASRock Rack GENOAD24QM32-2L2T/BCM Motherboard empowers you to build a high-performance, future-proof server infrastructure. Its exceptional memory capabilities, robust expansion options, and support for the latest AMD EPYC processors make it the ideal foundation for demanding workloads.
Specifications
| Physical Status | |
| Form Factor | EEB |
| Dimensions | 12" x 14" |
| Processor System | |
| CPU | Supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors *A BIOS update is required to support AMD EPYC™ 9005 series processors |
| Socket | Single Socket SP5 (LGA 6096) |
| Thermal Design Power | Up to 400W |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 24 DIMM slots (2DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM 2R: 96GB (2R) RDIMM-3DS: 512GB (2S8Rx4) |
| Max. DIMM Frequency | RDIMM: 4800 MHz (1DPC) RDIMM 1R: 4000 MHz (2DPC) RDIMM 2R: 3600 MHz (2DPC) RDIMM-3DS: 4800 MHz (1DPC); 3600 MHz (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT6: PCIe5.0 x16 |
| Other PCIe Expansion Connectors | |
| Others | 10 MCIO (PCIe5.0 x8) 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s) |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD EPYC™ 9005/9004 (16 SATA 6Gb/s): 2 MCIO |
| Ethernet | |
| Additional GbE Controller | Broadcom BCM57416: 2 RJ45 (10GbE) Intel® i210: 2 RJ45 (1GbE) |
| OCP slot | 1 OCP NIC 3.0 (PCIe5.0 x16) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE) 2 RJ45 (1GbE) 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 3 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 (9-pin) |
| Speaker Header | 1 (4-pin) |
| Buzzer | 1 |
| Fan Header | 8 (6-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| SGPIO Header | 2 |
| HSBP | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Others | 1 NCSI_SEL for IPMI shared NIC |
| Front Lan LED Connector | 1 |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 8 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side, TR1 Temperature sensing |
| Fan | Fan Tachometer Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | VDDCR_CPU,VDDCR_SOC, VDDIO, VDD_18_S5, VDD_33_S5, VDD_11_S3, +3V, +5V, +12V, +BAT, +1V8SB, 3VSB, 5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
